Installation
*INSTALLATION*
61

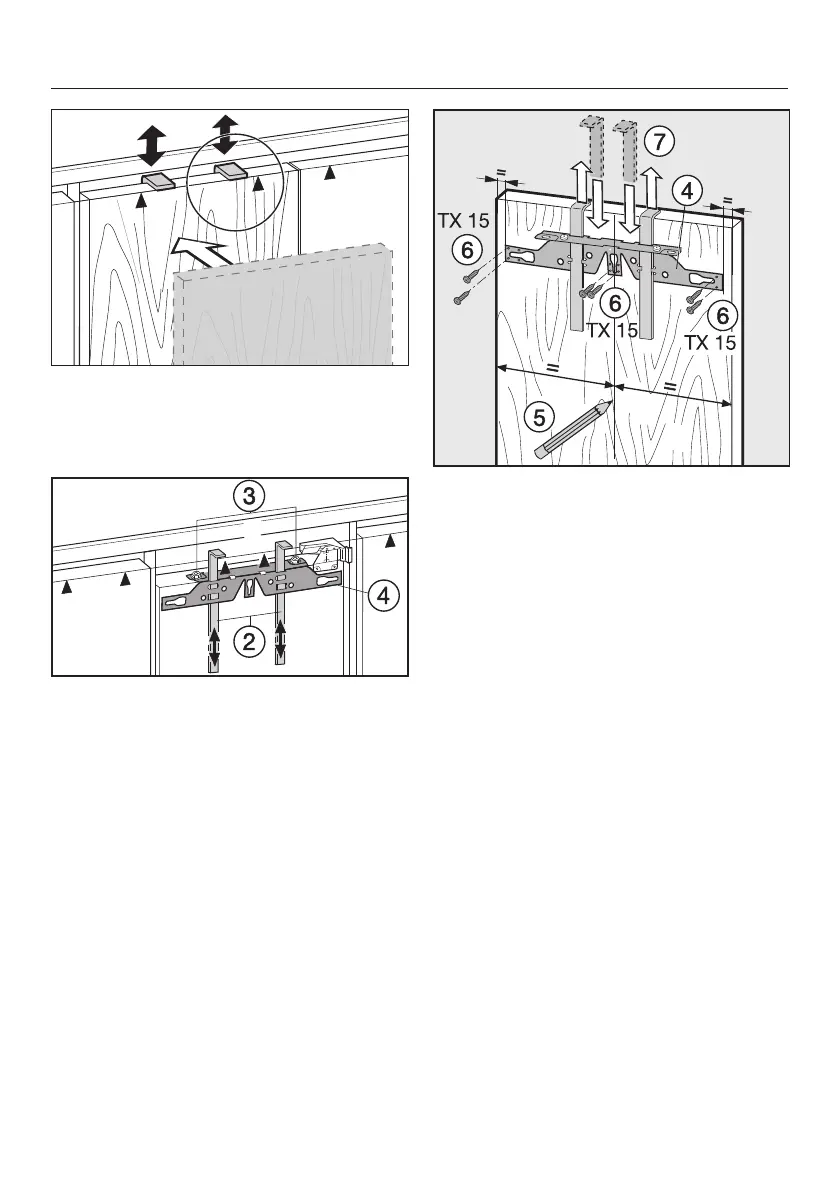

Tip: Push up the fitting aids with the
furniture front until they are the same
height as the doors of adjacent kitchen
units.
Undo the nuts and take the fixing
bracket off together with the fitting
aids.
Using a pencil, lightly mark a line
down the centre of the inside of the
furniture door .
Hang the fixing bracket with the
fitting aids onto the inside of the fur-
niture door. Align the fixing bracket
centrally.
Attach the fixing bracket securely us-
ing at least 6 short chipboard
screws. (On cassette doors only
use 4 screws on the edges). Drill
holes into the furniture door if neces-
sary.
Pull the fitting aids upwards to re-
move them .
Turn them around and fit them into
the middle slots on the fixing bracket
for safe keeping.
