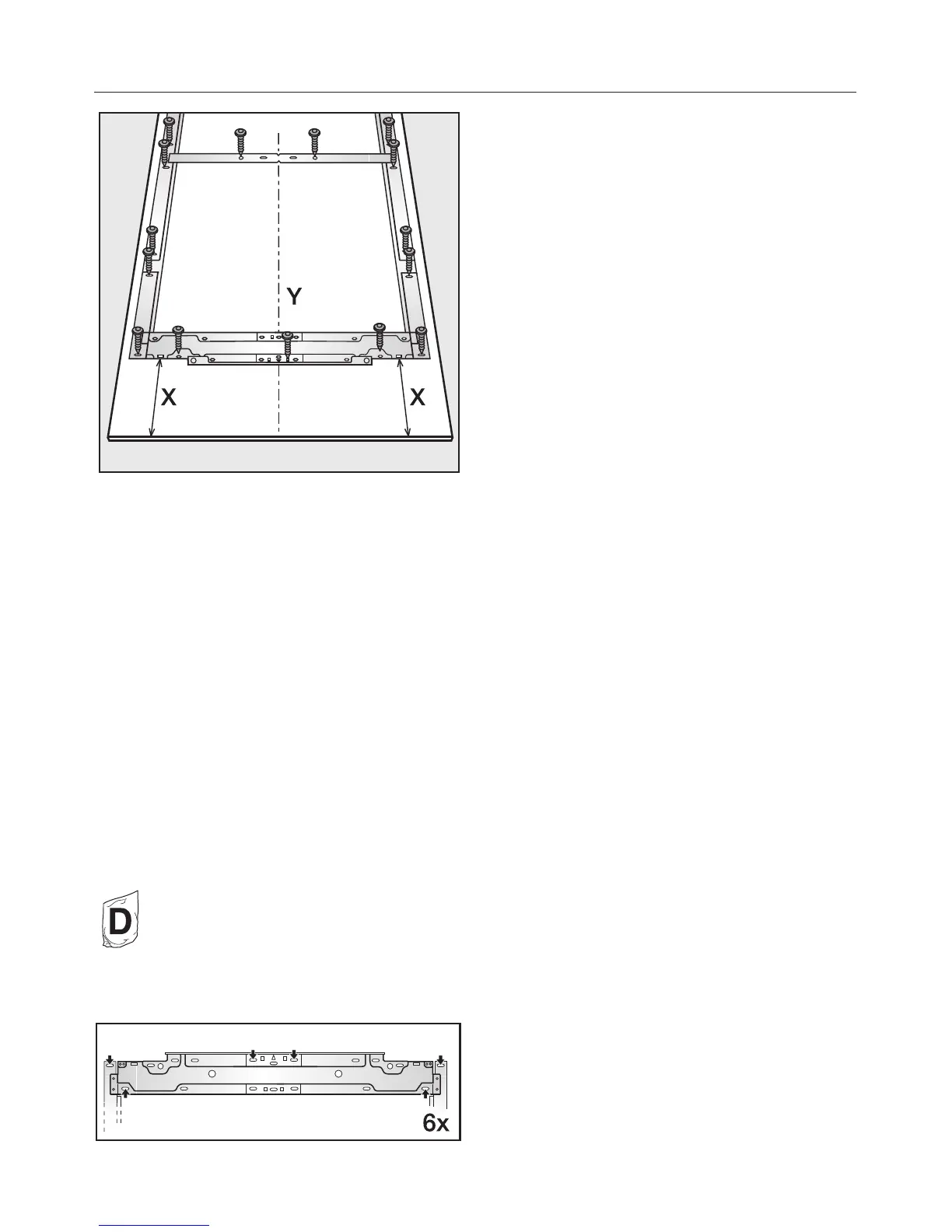

^ Mark the distance X on the back-side
of the custom door.
^ Also calculate and mark the center of
the custom door Y.
^ Remove the mounting frame from the
appliance door and position it
according to the markings on the
custom door.
^ Pre-drill the holes.
^
Tightly screw on the bracket using
the pre-drilled holes:
Attach the bracket to each
attachment point with at least one
screw.
^
Attach the bracket at the top with at
least 6 screws.
The bracket includes a variety of holes
for the various design options of
custom doors.
When performing work on the custom
door, always observe the following:
–
Always select the best load-bearing
surface of the custom door as the
location for screws.
–
Always select a screw length that is
shorter than the thickness of the door
front.
^
Secure the door handle to the front of
the appliance from the inside.
Installing the appliance
64
