Installation integrated “i” Dishwashers
4.Matching the facia panel to
the dimensions of the
adjacent drawer fronts

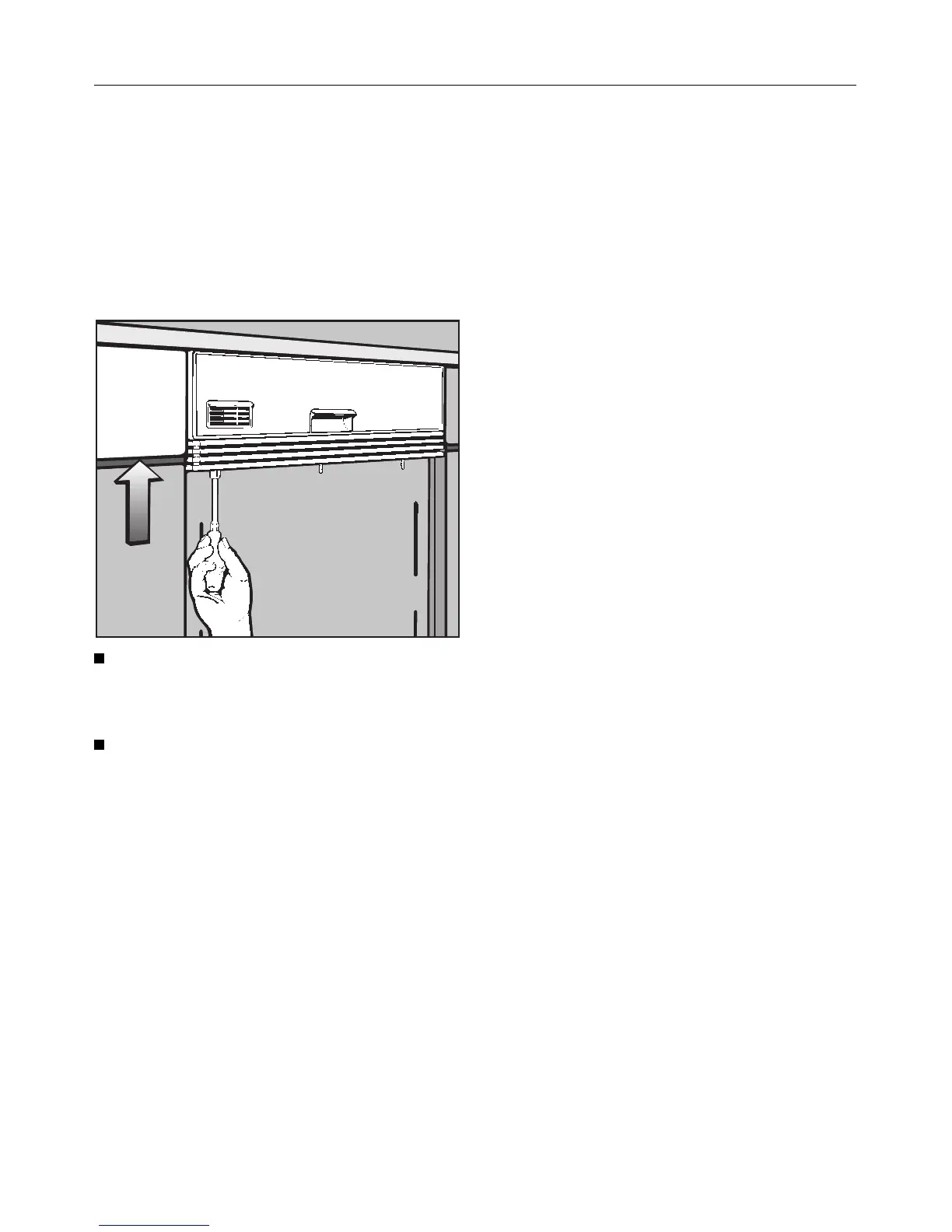

The facia panel can be aligned with the
drawer fronts of the kitchen units by ad-
justing the spacer bars.
Using an 8 mm socket spanner turn
clockwise or anti-clockwise until the
required height is reached.
If necessary individual (or all) spacer
bars can be removed.
Adjustment range:
from 112 mm: facia panel without
spacer bars,
to 145 mm: facia panel with four
spacer bars,
to 154 mm: using a fifth spacer bar
(special accessory at
extra cost).
Please note
After adjustment cut off any protruding
lengths of the screws.
