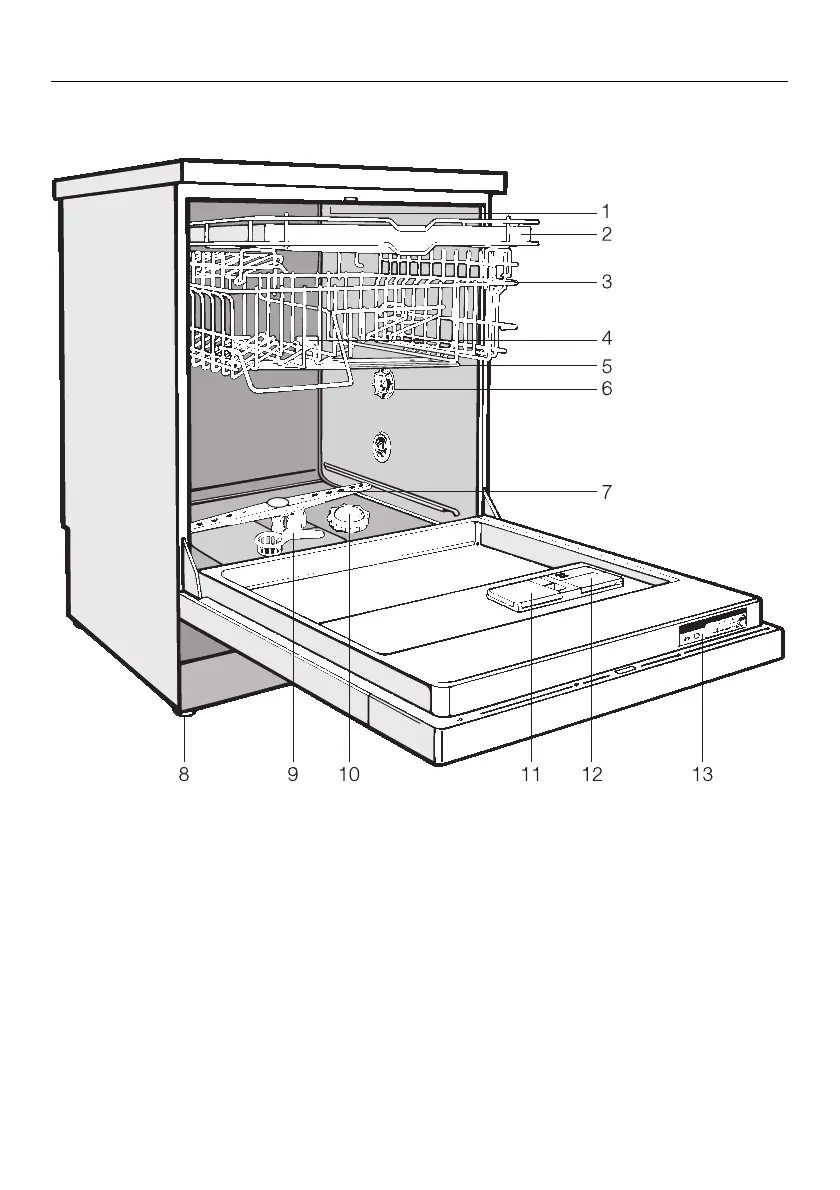

View of the machine
1. Upper spray arm (not visible)
2. Cutlery tray (if applicable)
3. Upper basket
4. Water feed tube for the middle
spray arm
5. Middle spray arm
6. Water hardness selector
7. Lower spray arm
8. Four height adjustable levelling legs
9. Combination filter
10. Salt reservoir (if applicable)
11. Dual compartment detergent
dispenser
12. Rinse aid reservoir
(with dosage selector)
13. Data plate
Note:
Cutlery and lower baskets not shown.
Guide to the appliance
6
