Description of the appliance

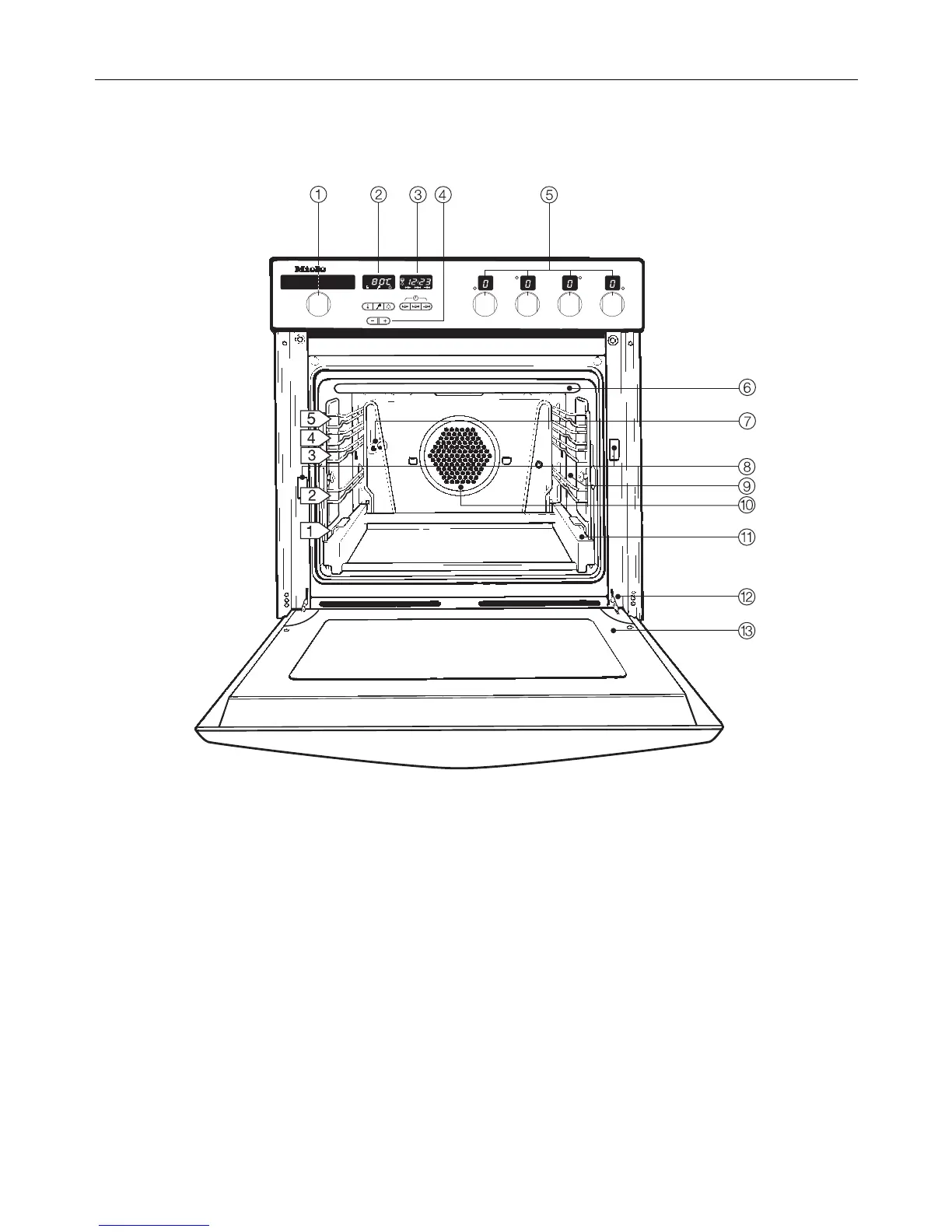

General view - "E"Model cooker with hob controls
Control panel *
b Oven function selector
c Oven: display and pushbuttons
d Timer: display and pushbuttons
e "+/–" Button with indicator light
f Hob zone controls *
* depending on the model
Oven interior
g Heating element for top heat
and grilling with roof liner
h Grill motor *
i Halogen lamp access flap
j Connection socket for core
temperature probe (roast probe) *
k Air inlet for fan
l Telescopic carriage/
Runner heights 1, 2, 3, 4, 5 *
m Door contact switch
n Oven door
Description of the appliance
4
