Miele H2x6xE - Building-in Diagrams

96 pages

Save Page as PDF

To Next Page

To Previous Page

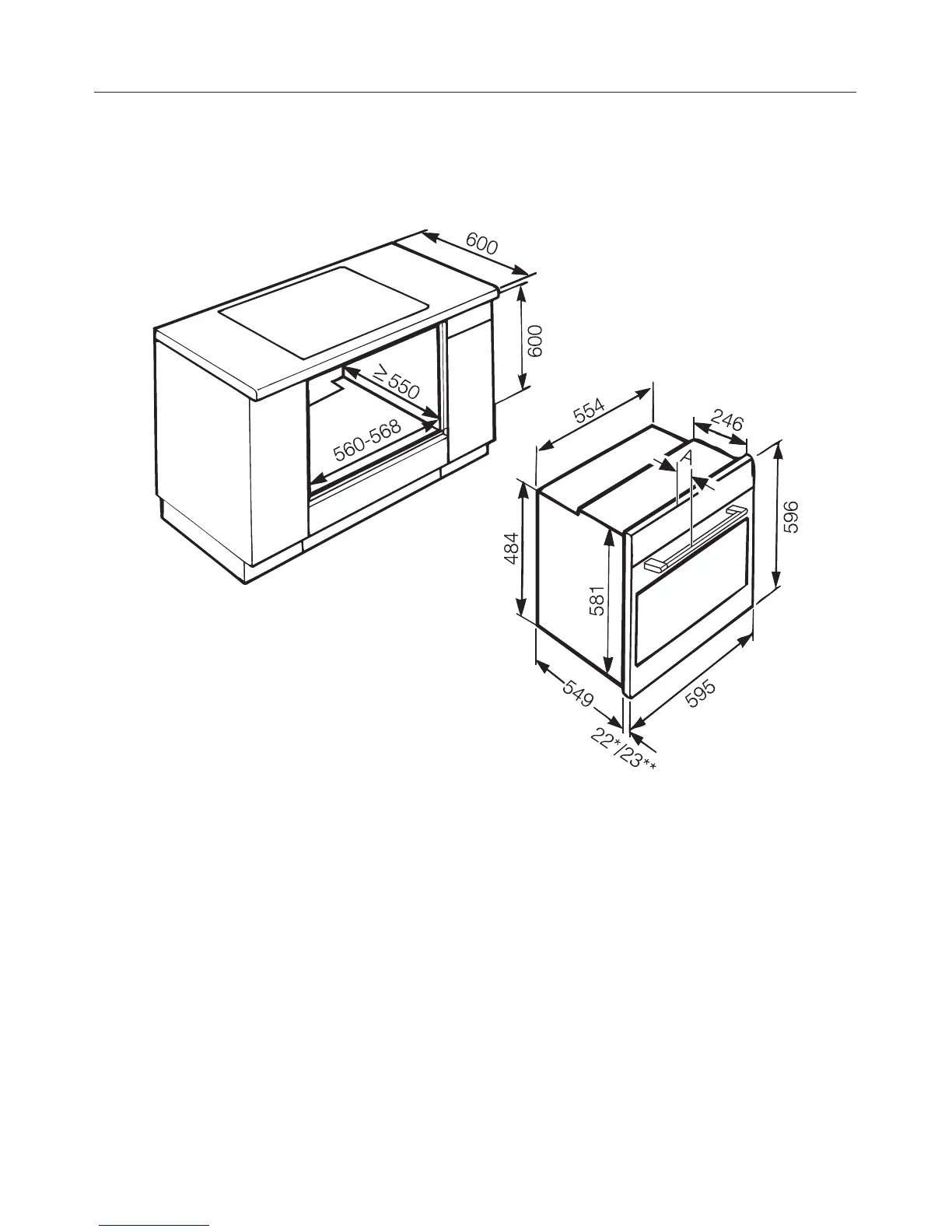

Appliance and niche dimensions

Dimensions are given in mm.

Installation in a base unit

A H21xx: 45 mm

H22xx: 42 mm

* Ovens with glass front

** Ovens with metal front

Building-in diagrams
