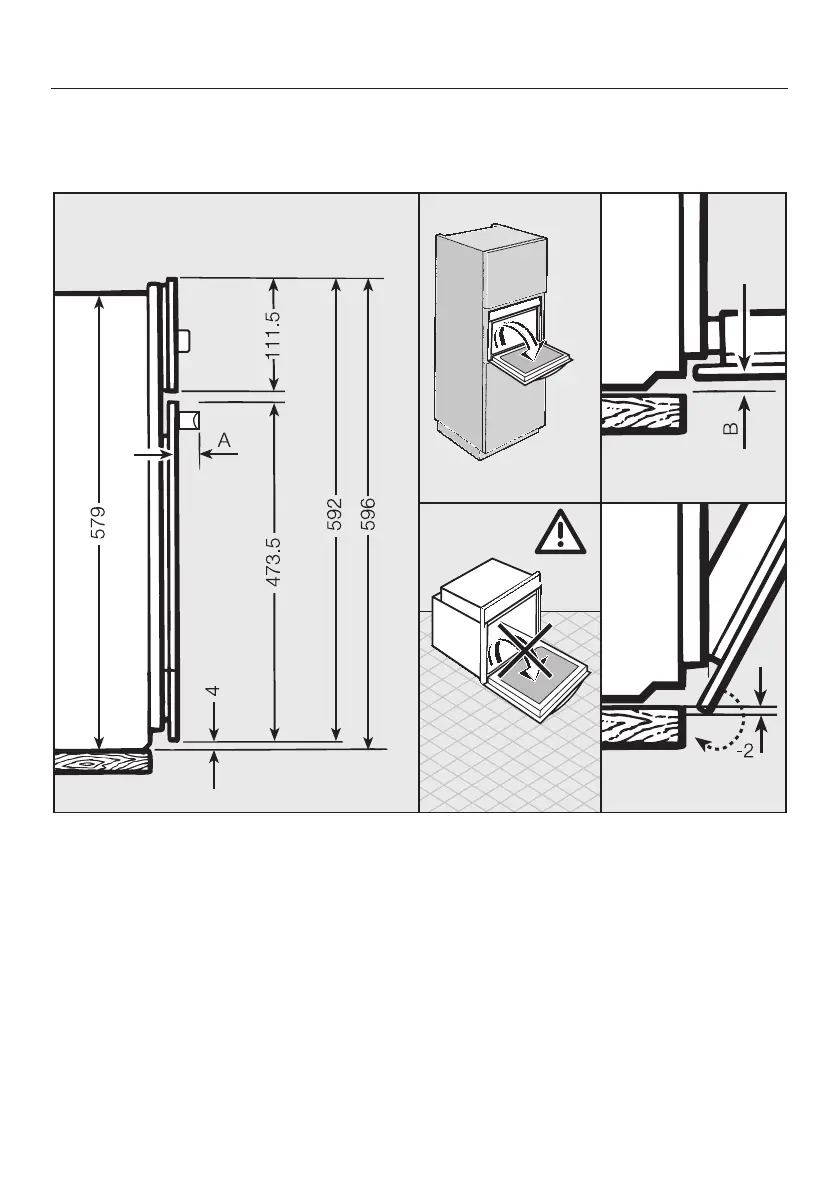

Front dimensions

Dimensions are given in mm.

A H65xx: 45 mm

H66xx: 42 mm

B Ovens with glass front: 2.2 mm

Ovens with metal front: 1.2 mm
