6. Install the custom door
panel
A custom door panel must be installed
on the dishwasher before it can be
safely operated. A single large panel or
a two piece panel separated at the
drawer line can be used.

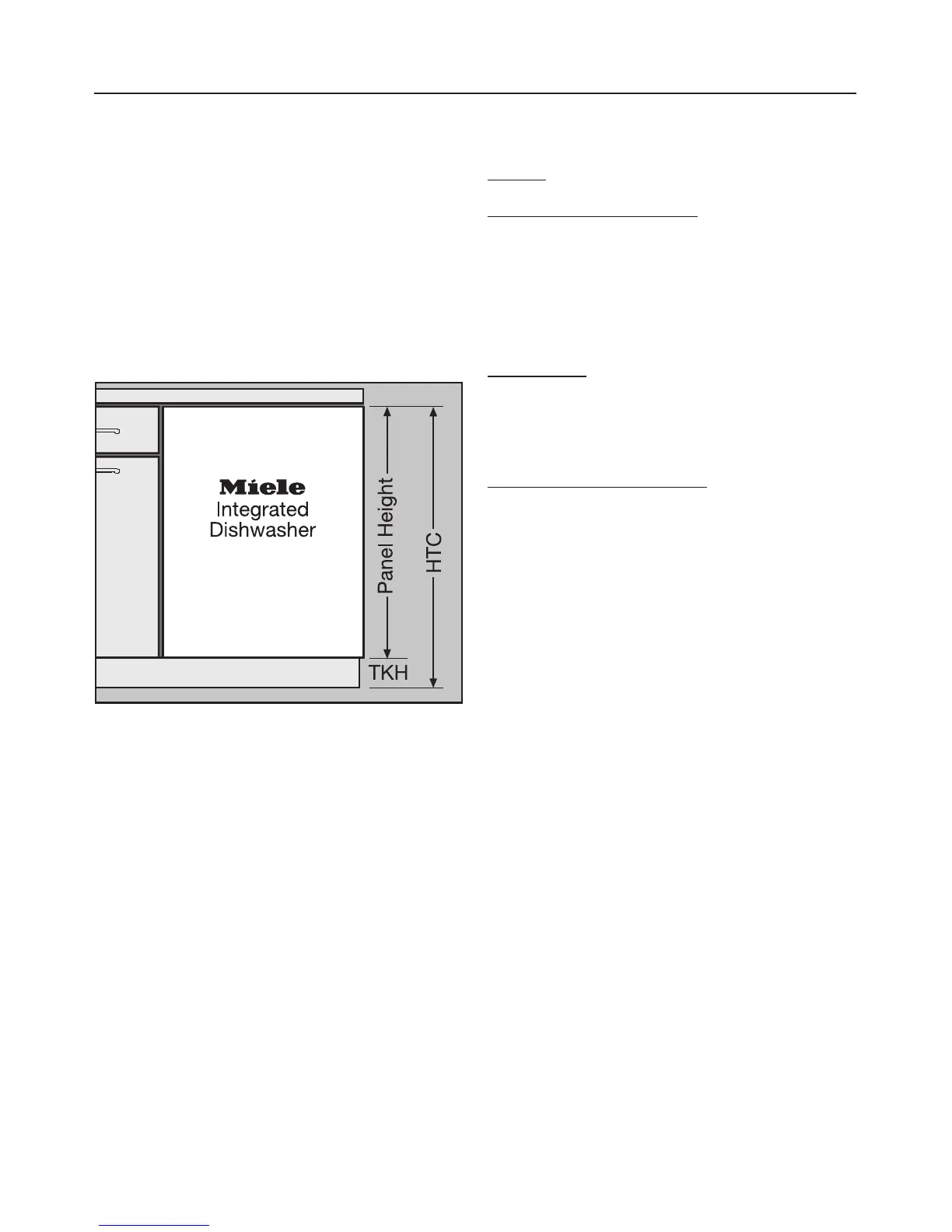

Panel size is determined in the
following manner:
Panel Height = HTC - TKH
HTC = Height to the underside of
countertop
TKH = Toe Kick Height
Panel Dimensions:
Width:
. . . . . . . . . . . . . . . 23
1
/
2
" (60 cm)
Range of panel height:
G 800 series. . . . . . . . . . 27
1
/
2
" - 30
1
/
4
"
. . . . . . . . . . . . . . . . . . . (699 - 768 mm)
G 600 series. . . . . . . . . . 25
1
/
2
" - 28
1
/
4
"
. . . . . . . . . . . . . . . . . . . (648 - 718 mm)
Thickness:
At least
3
/
4
" (18 mm) where the
mounting bracket is to be screwed in
position.
Maximum panel weight:
G 800 series . . . . . . . . . . 21 lbs (9.5 kg)
G 600 series . . . . . . . . 16.5 lbs (7.5 kg)
Installation
17
