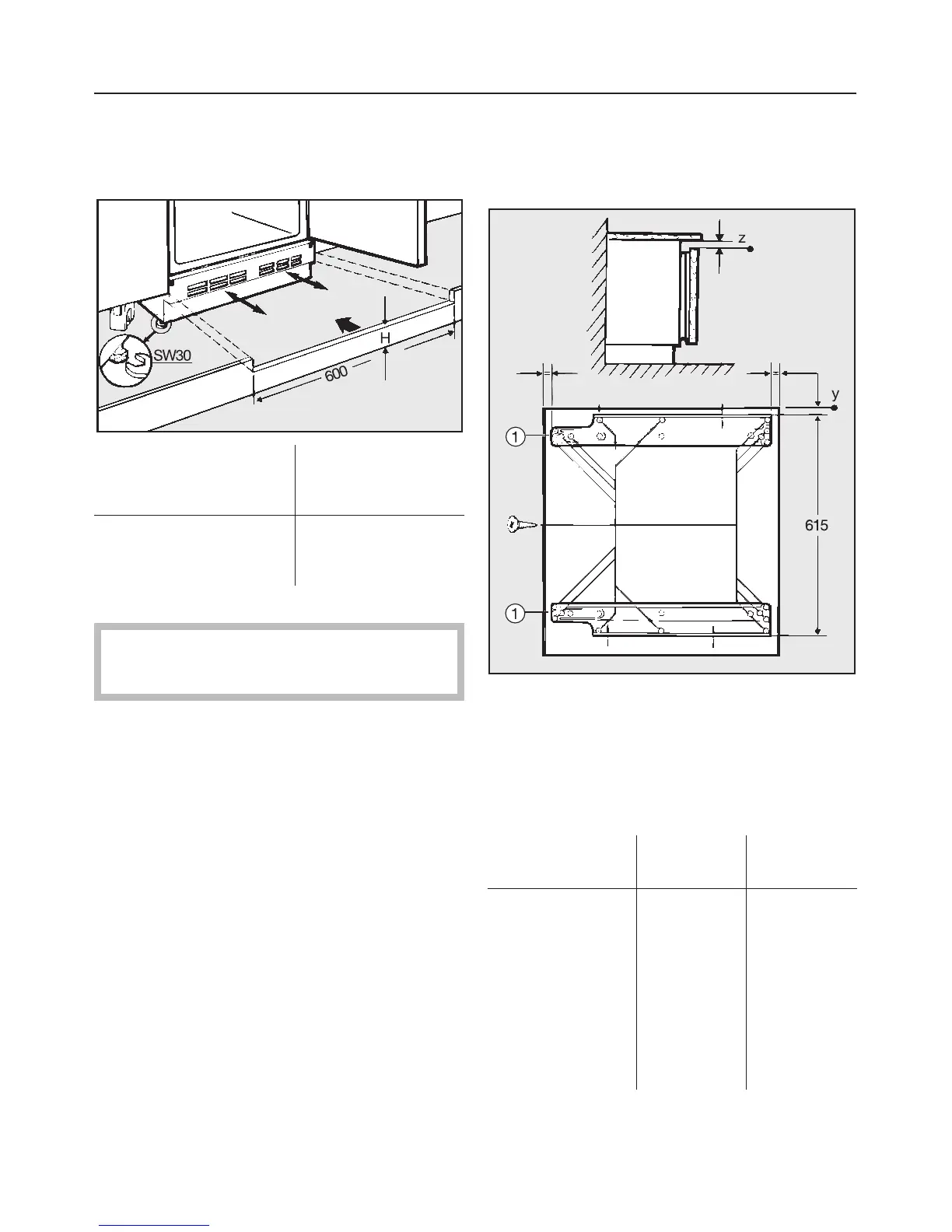

If there is a continuous plinth in the
kitchen a ventilation gap will need to be
made in the plinth for the appliance:
Building-under
height [mm]
Dimension H
[mm]
820
870
60 +1
110 +1
The ventilation gaps must not be
covered over.
Fitting a furniture door
Screw the fixing bracket to the furniture
door:
^ Place both fixing brackets b on the
furniture door such that the narrower
side is to the hinge side of the door.
^
See chart below for distances z and
y:
z [mm] y [mm]
On Miele
kitchen
furniture
On non-Miele
kitchen
furniture
6
5
14
15
Building in the appliance
