Depth adjustments Z are made by
turning both lower adjusting bolts. A
maximum adjustment of +/- 2 mm
can be made.
After aligning the depth tighten the
locking nuts on the lower adjusting
bolts.

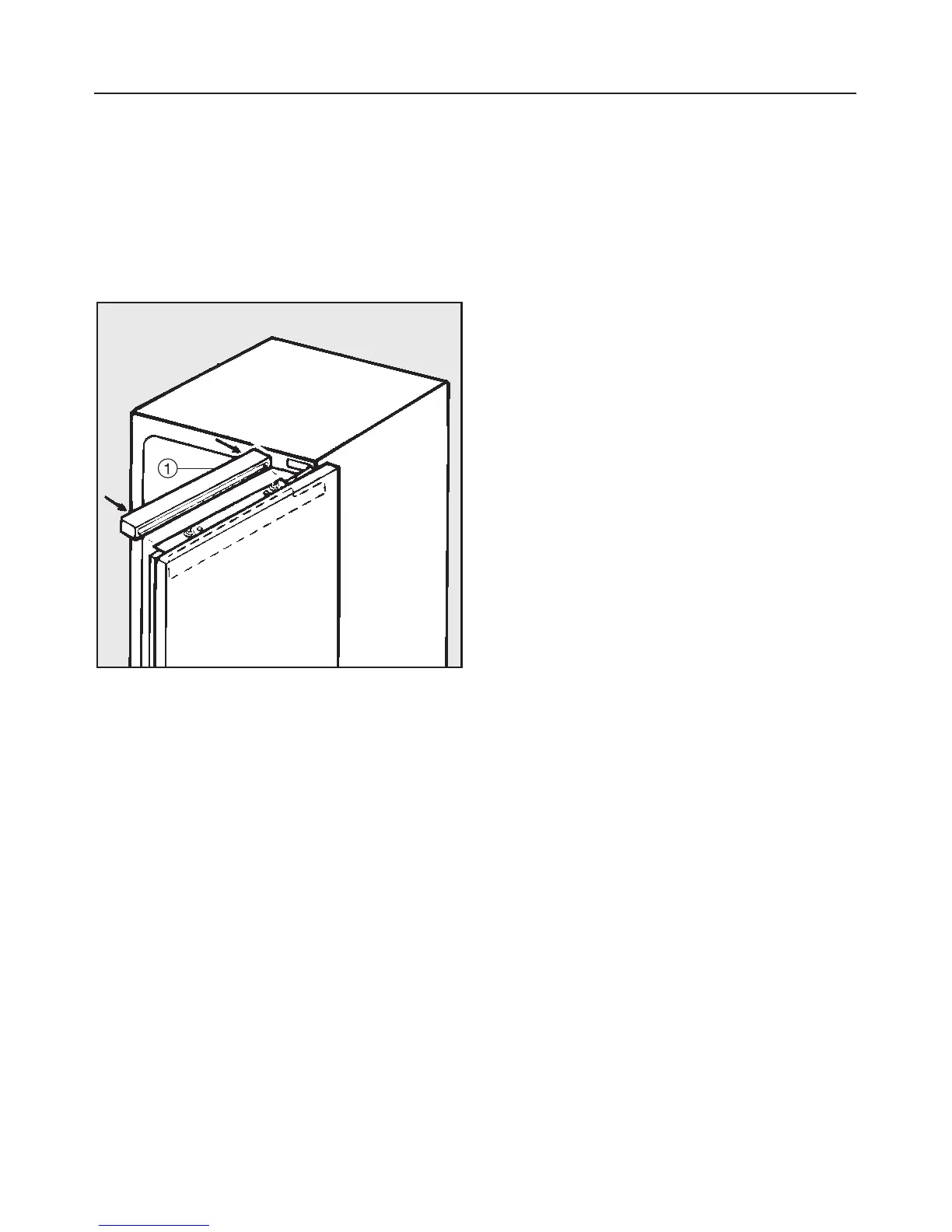

^ Fit cover strip a as shown.
To remove the cover strip use a
screwdriver to apply pressure behind
the strip.
^
Tighten all screws which secure the
appliance to the underside of the
worktop.
Building in the appliance
35
