Building in the appliance

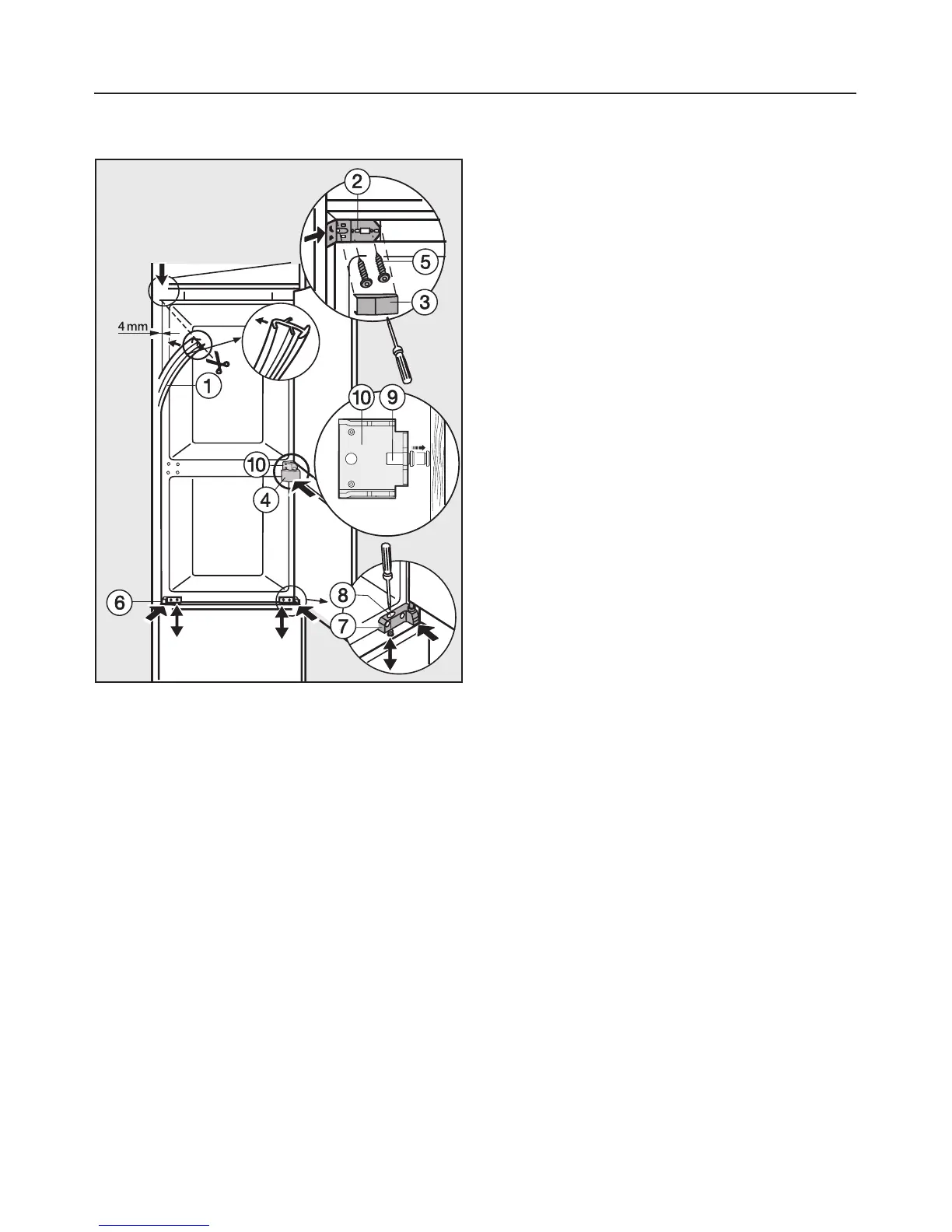

^ Attach sealing strip a to the door
opening side so that it sits flush at the
front with the side of the appliance. If
necessary the sealing strip can be
trimmed to size along the lower edge
of bracket b.
^
Remove covers c and d.
^
Secure bracket b with screws e
(4.8 x 16 mm).
^
Push the appliance into the
building-in niche, leaving a gap of
approx. 4 mm.
Take care not to trap the mains cable.
^
Push in the appliance until the front
edges of bracket b and hinge plates
f and g are flush with the front
edge of the housing.
^
Align the appliance height from
above on both sides using adjusting
screw h.
^
Carefully unscrew adjusting screw i
in the middle of hinge plate j until it
touches the side wall of the furniture
housing unit.
Building in the appliance
43

Miele KDN 9713 iD Specifications

General

Door hinge	Right
Product color	White
Reversible doors	Yes
Custom panel-ready	No
Appliance placement	Built-in
Noise level	40 dB
Total gross capacity	- L
Fridge net capacity	200 L
Fridge number of shelves/baskets	5
Freezing capacity	6 kg/24h
Freezer net capacity	62 L
Freezer number of shelves/baskets	3
Storage time during power failure	24 h
Connected load	136 W
Annual energy consumption	335.8 kWh

Weight and Dimensions

Depth	550 mm
Width	560 mm
Height	1772 mm
