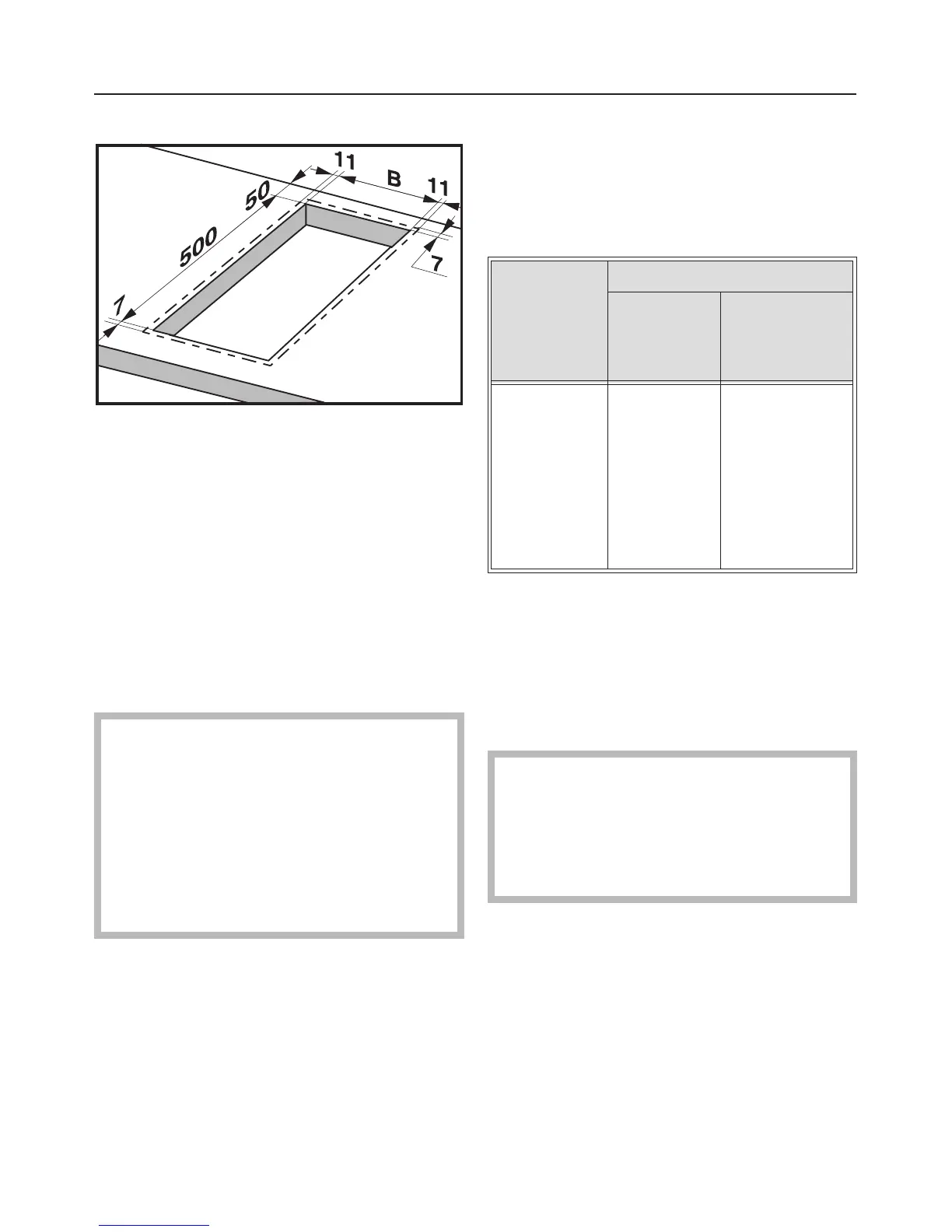

Dimensions 7 mm and 11 mm are the
space taken up by the frame of the
appliance on the worktop.
^ Make a cut-out for the hob in the
worktop, paying attention to the
appliance height. See section
"Appliance dimensions".
Dimension "B" applies to a combination
of appliances and is shown on the
chart.
Due to the heat radiated by the hob
and to allow cooking fumes to
dissipate it is essential that a
minimum safety distance is
maintained between the worktop
cut-out and adjacent kitchen units,
e.g. a tall unit. See Warning and
Safety instructions.
^
Seal the cut surfaces with a suitable
sealant to avoid swelling caused by
moisture. The materials used must be
heat resistant.
Worktop cut-out
Number of
appliances
Depth
in mm
±1mm
Width
(=Dim. B)
in mm
±1mm
1
2
3
4
5
6
7
500
500
500
500
500
500
500
266
554
842
1130
1418
1706
1994
Important:
The maximum tolerance for the worktop
cut-out must not exceed±1mm.
When building in several combiset
appliances a spacer bar must be
fitted between each unit. (See
"Fitting the spacer bars and spring
clamps").
Worktop cut-out
10
