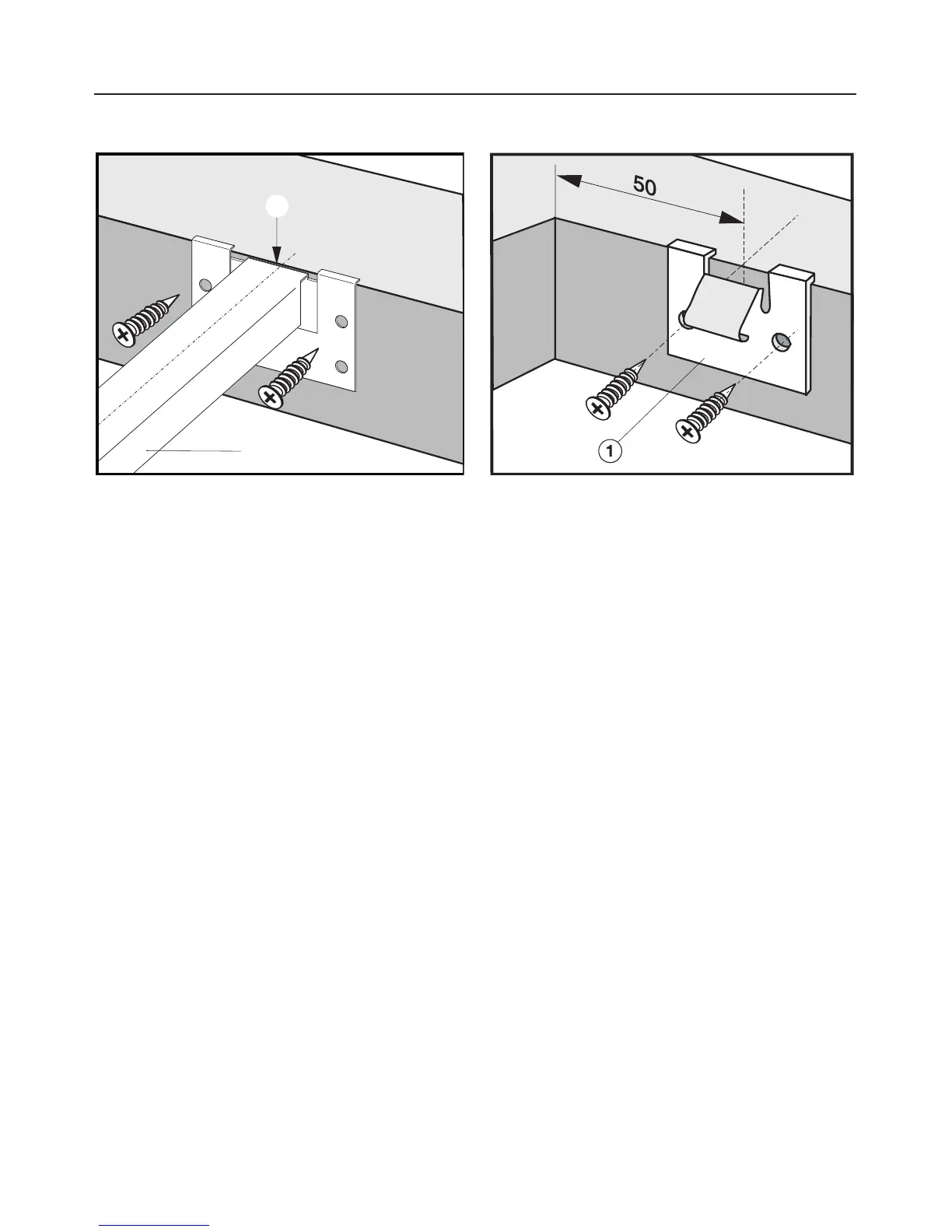

Fixing the spacer bars
^ Position the spacer bars b in the
positions shown in "Fitting the spacer
bars and spring clamps" so they are
flush with the top edge of the cut-out,
and secure with the 3.5 x 25 mm
screws supplied.
^ Then fill in gap c between the bars
and the worktop with silicone from
the tube supplied.
Granite worktops
With granite worktops the spacer bars
b must be positioned and secured with
strong double-sided adhesive tape. In
addition, coat the edges with silicone
and fill in gap c.
The screws are not required for granite
worktops.
Fixing the spring clamps
^ Position the spring clamps a in the
positions shown in "Fitting the spacer
bars and spring clamps" so that they
are flush with the top edge of the
cut-out, and secure with the 3.5 x
25 mm screws supplied.
Granite worktops
With granite worktops, the spring
clamps a must be positioned and
secured with strong double-sided
adhesive tape. In addition, coat the
edges with silicone.
The screws are not required for granite
worktops.
Installation
12
