Fitting the spacer bars and
spring clamps
a Spring clamps
b Spacer bars
Installation of several appliances

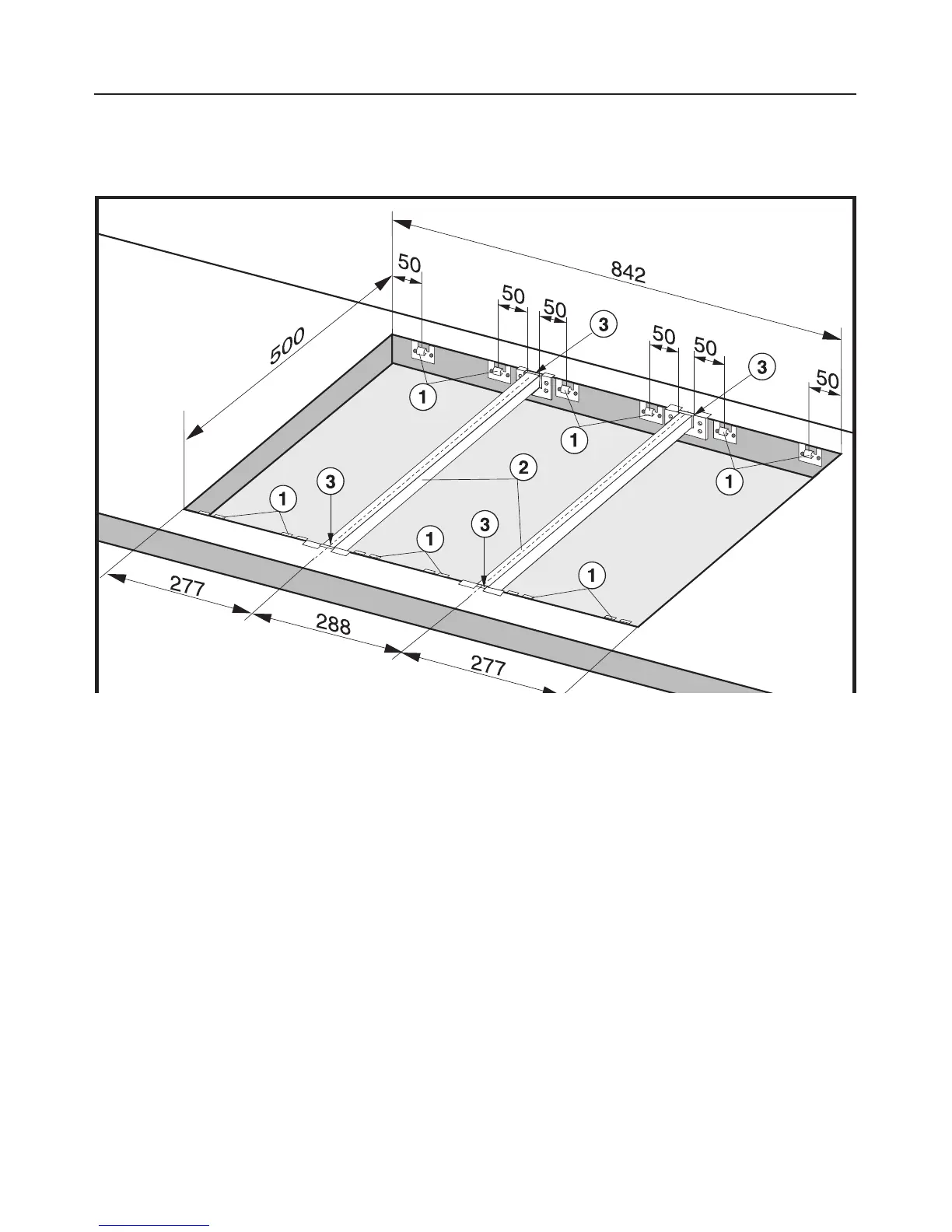

The illustration above shows an
example of a worktop cut-out with
spacer bars b and spring clamps a
for 3 appliances.
For more than 3 appliances, repeat
dimension 288 mm.
The worktop cut-out dimensions for
several appliances are shown in the
table on the previous page.
c Gap between spacer bar and
worktop
^
Fix the spacer bars b and the spring
clamps a provided to the positions
indicated. See "Fixing the spacer
bars" and "Fixing the spring clamps".
Installation
11
