Miele KM 6310 User Manual

72 pages

To Next Page

To Next Page

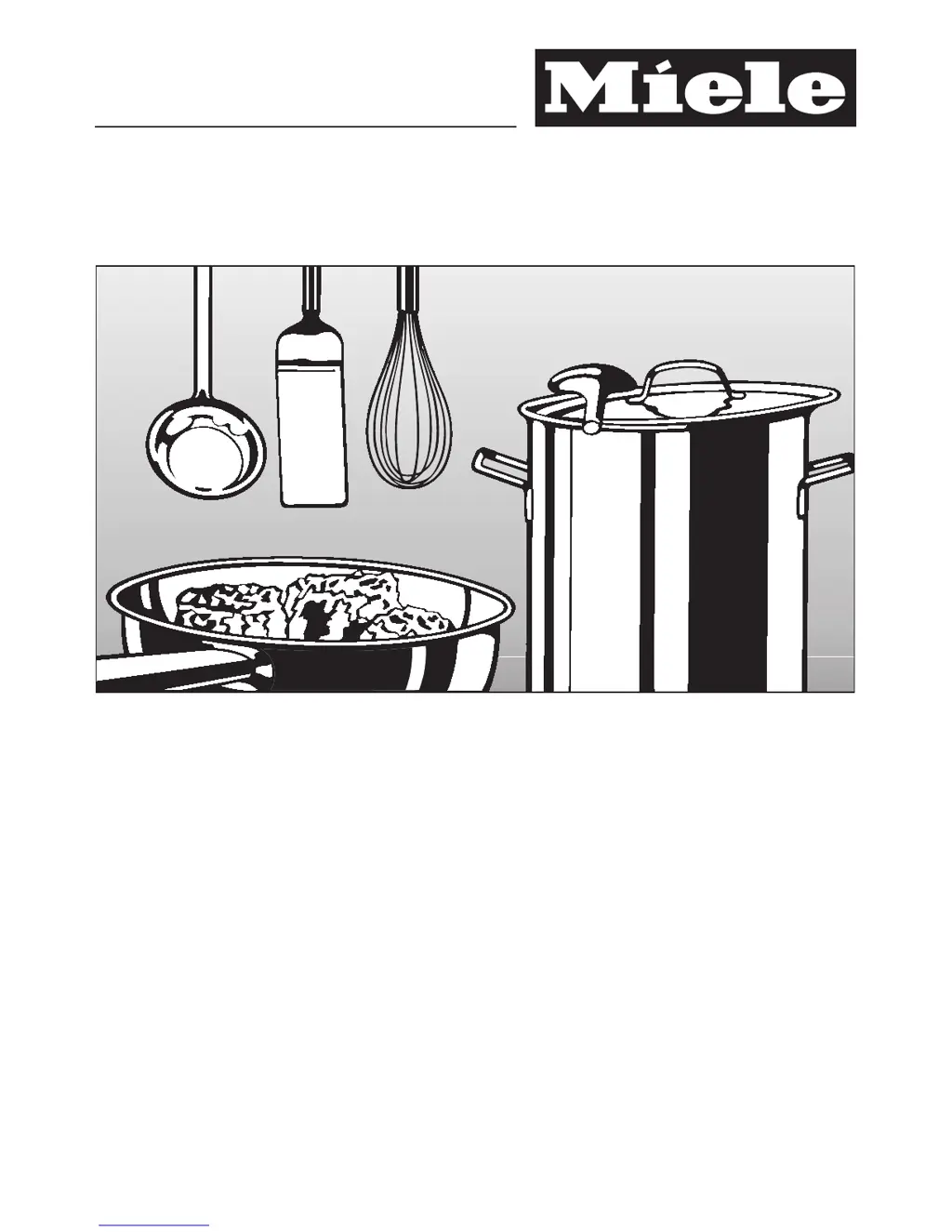

Page #1 background image

Loading...

Page #1 background image

Operating and Installation instructions

Ceramic Cooktop with induction

KM 6310

KM 6344

To prevent accidents and

appliance damage,

read these instructions

before

installation or use.

M.-Nr. 09 166 590

en-CA

Table of Contents

Questions and Answers:

T
Tina GonzalezAug 18, 2025
Why won't my Miele Cooktop turn on?
- J
  Jonathan ChristensenAug 18, 2025
  If your Miele cooktop or cooking zones won't switch on, the circuit breaker may have tripped. Reset the circuit breaker, referring to the data plate for the correct fuse rating. If resetting doesn't work, there may be a technical fault. In that case, disconnect the appliance from the power supply for about 1 minute by tripping the breaker, removing the fuse, or tripping the GFCI. If it still won't switch on, contact a qualified electrician or Miele Customer Service.
T
Tammy SmithAug 21, 2025
Why does my Miele KM 6310 turn off by itself?
- M
  Michael BlevinsAug 21, 2025
  If a cooking zone or the entire Miele cooktop switches off automatically, it could be due to the cooking zone being in use for too long, or the overheat protection being triggered. You can switch the cooking zone back on to continue use.
R
Robert HillAug 23, 2025
Why are the sensors on my Miele Cooktop not working?
- C
  Chad MunozAug 23, 2025
  If the sensors on your Miele cooktop are too sensitive or not reacting at all, it could be due to a change in their sensitivity level. Make sure the cooktop isn't in direct sunlight or strong artificial light, and that the area isn't too dark. Also, ensure that neither the cooktop nor the sensors are covered. Remove any cookware and clean the cooktop to remove any food residues. Interrupt the power supply to the cooktop for about 1 minute. If the issue continues, contact Miele Customer Service.
G
Gloria SteeleAug 26, 2025
Why isn't auto heat-up working on my Miele Cooktop?
- K
  Kathryn RodriguezAug 26, 2025
  If auto heat-up is on but food isn't starting to cook on your Miele cooktop, it might be because you're heating a large amount of food. Start cooking at the highest power level, then manually reduce the power level.
E
ericasalazarAug 28, 2025
What to do if my Miele KM 6310 Cooktop switches off and F is flashing?
- J
  Jose MooreAug 28, 2025
  If your Miele Cooktop switches off during use and a flashing F appears in the timer display, it indicates that one or more sensors are covered. This could be due to fingers, food boiling over, or an object on the control panel. Clean the control panel or remove any obstructions to resolve this issue.
J
John LarsonAug 30, 2025
What to do if dE appears on my Miele KM 6310 Cooktop?
- R
  Raymond HessAug 30, 2025
  If you turn on your Miele cooktop and see dE in the timer display for several seconds, but the cooking zone doesn't heat up, the device is likely in demo mode. You’ll need to deactivate demo mode.
J
Jaime HernandezSep 2, 2025
What does LC mean on my Miele KM 6310 Cooktop?
- K
  Kathleen RussellSep 2, 2025
  If, after turning on your Miele cooktop, LC appears in the timer display for a few seconds, it means the system lock feature is active. You will need to deactivate the system lock.
L
Luke KaneSep 4, 2025
Why does the booster on my Miele KM 6310 deactivate too soon?
- T
  Terry DonaldsonSep 4, 2025
  If the booster deactivates too early on your Miele cooktop, it indicates that the overheat protection was triggered.
R
Robert ManningSep 7, 2025
What does FE 47 mean on my Miele Cooktop?
- F
  Frank GordonSep 7, 2025
  If you are getting fault message FE 47 on your Miele cooktop, the fan might be blocked or faulty. Check if something like a fork is blocking it and remove the obstruction. If the message persists, contact Miele Customer Service.
H
Hannah CurtisSep 9, 2025
Why does my new Miele Cooktop smell?
- J
  Jennifer LopezSep 9, 2025
  If you notice a strange smell or vapors when using your Miele appliance for the first time, each subsequent use will reduce the odor, and it will eventually disappear completely.

Miele KM 6310 Specifications

General

Number of Cooking Zones	4
Number of burners	4
Material	Ceramic Glass
Type	Induction
Control Type	Touch controls
Safety Features	Child lock, automatic switch-off, residual heat indicator
Frame type	Stainless steel
Burner power levels	1.4 - 3.7 kW

Summary

Guide to the cooktop

Control panel

Explains the functions and indicators of the cooktop's control panel.

Safety instructions and warnings

Children at the cooktop

Provides safety guidelines for children around the appliance.

Technical safety

Covers safety aspects related to installation, repair, and electrical connections.

Proper use

Details safe operating procedures and potential fire/damage risks.

Induction

How induction works

Explains the principle of induction heating for the cooktop.

Cookware

Use

Power settings

Booster Function

Switching off and residual heat display

Timer

Minute minder

Switching a cooking zone off automatically

Safety features

Safety lock / System lock

Details on activating and deactivating the safety and system locks.

Safety switch-off

Information on automatic shut-off due to long cooking times or covered sensors.

Overheat protection

Explains the overheat protection measures for induction coils and cooling elements.

Cleaning and care

Troubleshooting

Optional accessories

Registering the cooktop

Safety instructions for installation

Clearance above the cooktop

Minimum clearance underneath the cooktop

Safety clearance to a wall covering

Installation dimensions

Installation

Preparing the countertop

Inserting the cooktop

Electrical connection
