Miele KM 6380 - Flush-Fitted Hobs; Building-In Dimensions

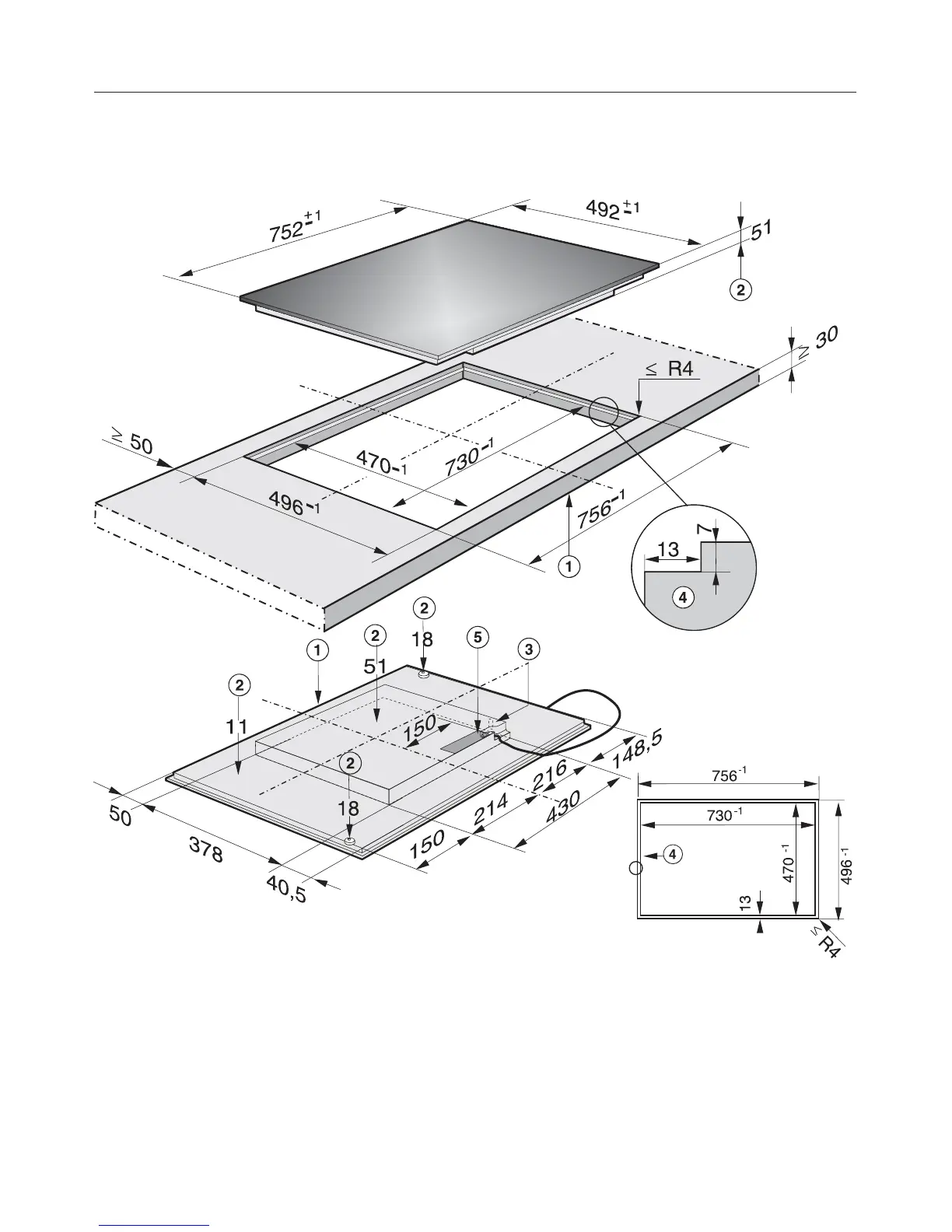

Building-in dimensions
KM 6351
a Front
b Casing depth
c Connection for Miele|home
d Stepped cut-out for granite or marble
worktops
e Mains connection box
The mains connection cable (1440 mm
long) is supplied separately.
Please take careful note of the
detailed diagrams for the cut-out
dimensions in granite and marble
worktops.
Flush-fitted hobs
71
