Installation
*INSTALLATION*
40

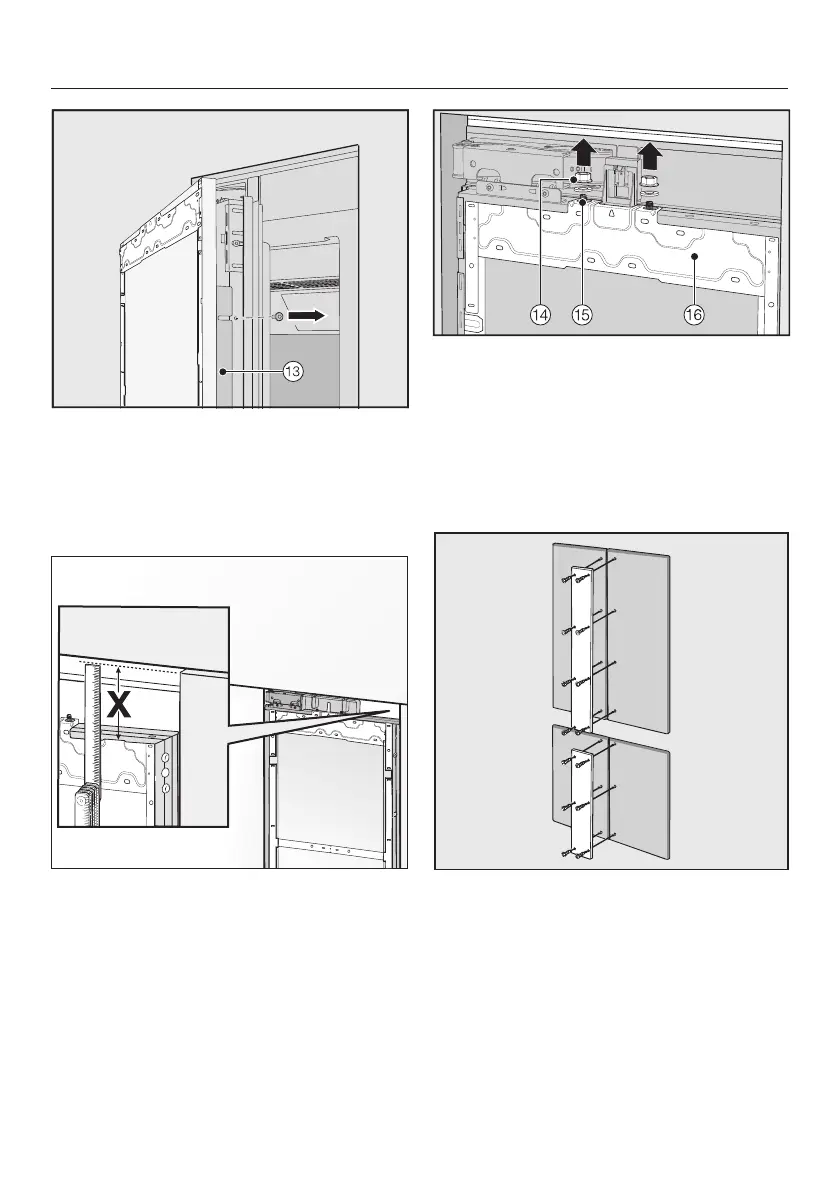

Unscrew the angle trims from both
sides of the appliance door and place
the trims and screws to one side –
they will be required later.
Close the appliance door.
Measure the gapX between the
mounting frame and the upper edge
of the adjacent cabinet front.
Remove the nuts and washers
from the threaded bolts and store
them in a safe place – they will be re-
quired later.
Take the mounting frame off the
appliance door by removing it up-
ward.
For inset fronts: always pay attention
to the length of the screws when se-
curing the metal strip to the cabinet
fronts.
