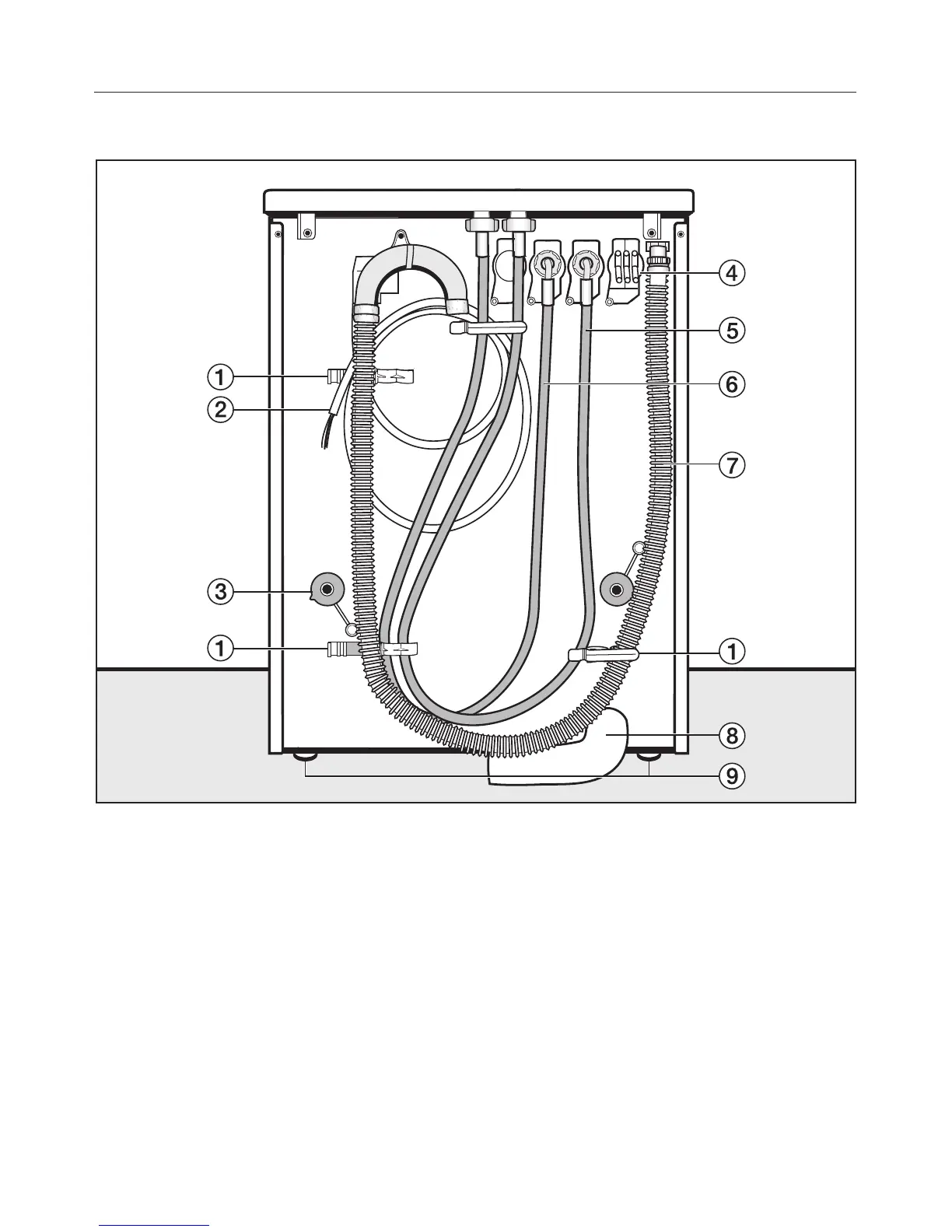

Rear view
a Holder for:
–
Inlet hose
–
Drain hose
–
Transit bars when removed
b Mains connection cable
c Safety cap for transit bars
d Adapter for external dispensing
system
e Inlet hose (cold water)
f Inlet hose (hot water)
g Drain hose for drain pump
h Drain pipe (optional accessory) for
machines with a dump valve
i Height adjustable feet
Installation and connection
51
