Technical Information
50
S 2xx, S 3xx & S 4xx Canister Vacuums
5.18.3 S 3xx
The motor is installed in the cap assembly.
1. Remove the cap assembly (Section 5.6).
2. Remove the Phillips screw securing the motor.
3. Ease open the group plug retaining lug and disconnect the plug.
4. Lift the motor at the rear and remove it.
5. Remove the motor holder and seal.
Reinstalling:
1. Install the holder with seal on the motor.
2. Ensure that the motor seal is positioned correctly.
3. Reinstall the motor in the rear casing.
5.18.4 S 4xx
Motor with holding bracket:
1. Unscrew the rear casing (Section 5.7).
2. After lifting the rear casing, the holding bracket (Figure 5-35, Item 1) can
be removed, thus releasing the motor.

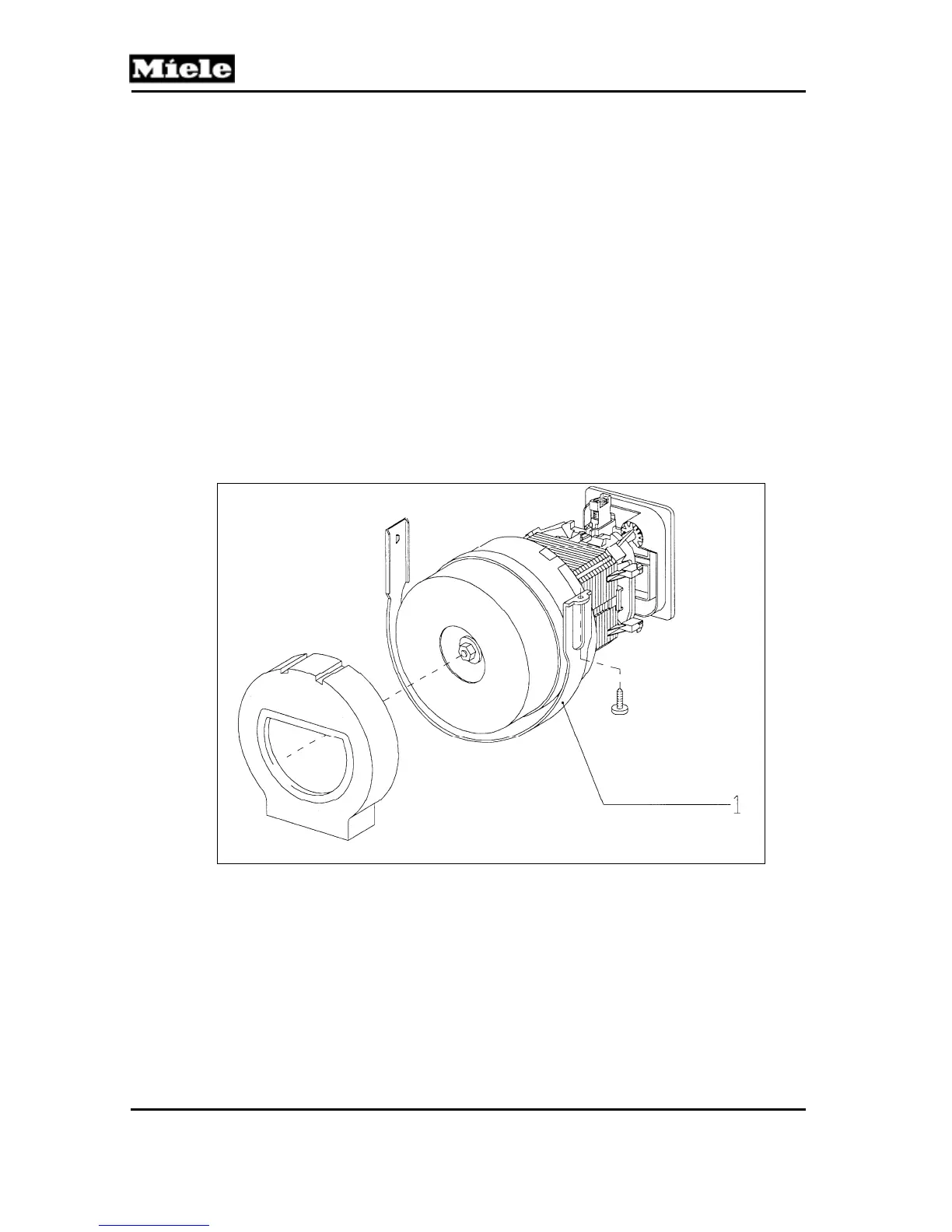

Figure 5-35: S 4xx Motor with Holding Bracket
Motor with central bearing:
1. Unscrew the rear casing (Section 5.7).
2. Unclip and release the central bearing (Figure 5-36, Item 1) from the rear
casing.
3. Unscrew the motor holder (Figure 5-36, Item 2) if necessary and remove
the motor.
4. If a holding bracket is also present as in Figure 5-35 then it should also be
removed.
