Miele T 8322 - Installation to the Rear, Left or Right Side of the Appliance

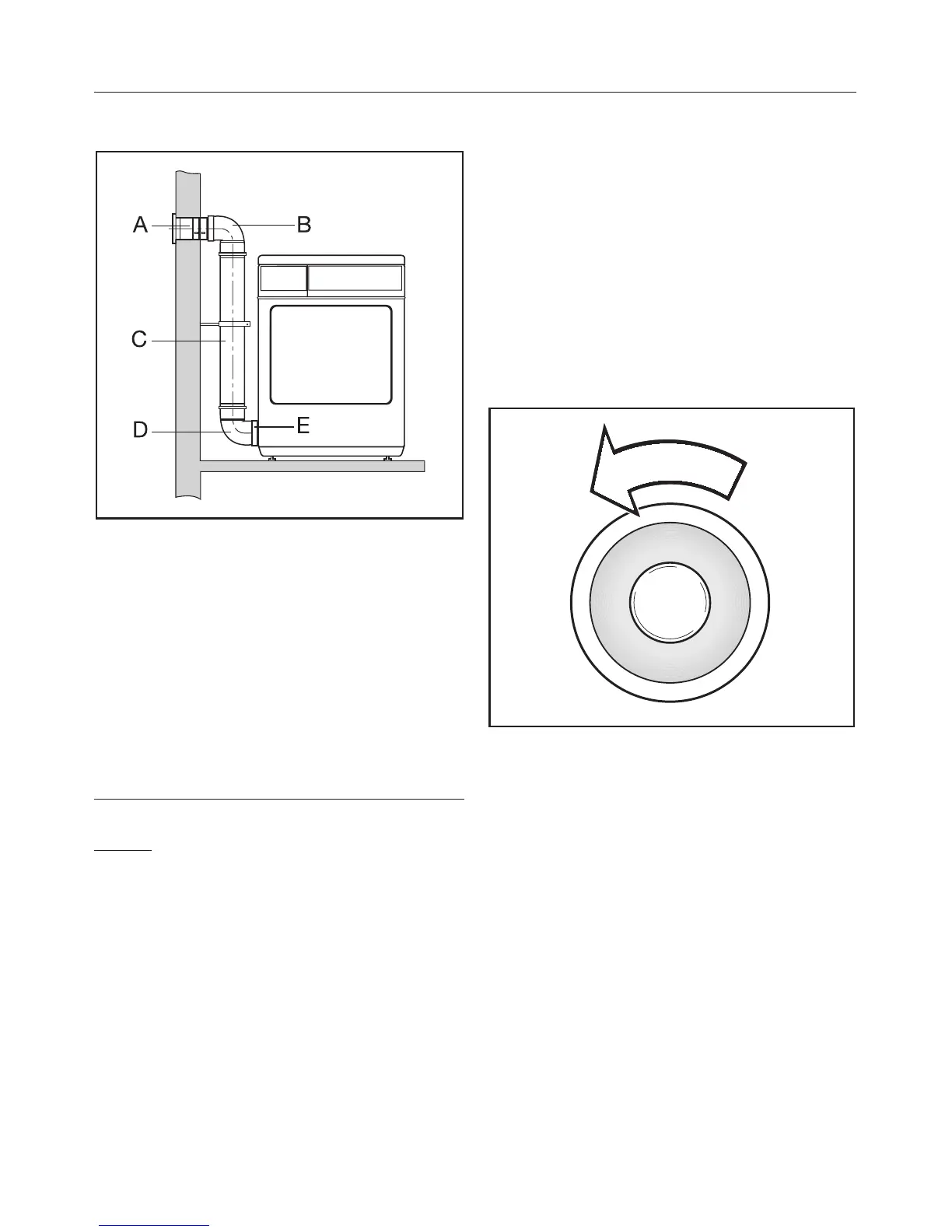

Calculation example
A Wall pipe, with louvred vent
= 1 x 3.8 m Additional duct
length
= 3.8 m
B/D 2 Elbows, 90°
= 2 x 0.8 m Additional duct
length
= 1.6 m
C 0.5 m plastic piping
=0.5x1mAdditional duct
length
= 0.5 m
E Side connection, left
=1mAdditional duct length = 1.0 m
Effective duct length = 6.9 m
Result: A duct diameter of 100 mm is
adequate as the effective duct length is
less than the 20 m specified in Table II.
Installation to the rear, left or
right side of the appliance
At the rear
The dryer is delivered with this
connection open.
^
Fit one of the venting systems
described on the following pages.
Left or right side of the appliance
^
Turn the cover flap anti-clockwise.
^
Refit it securely in the rear outlet.
^
Fit one of the venting systems
described on the following pages.
Installation - venting
37
