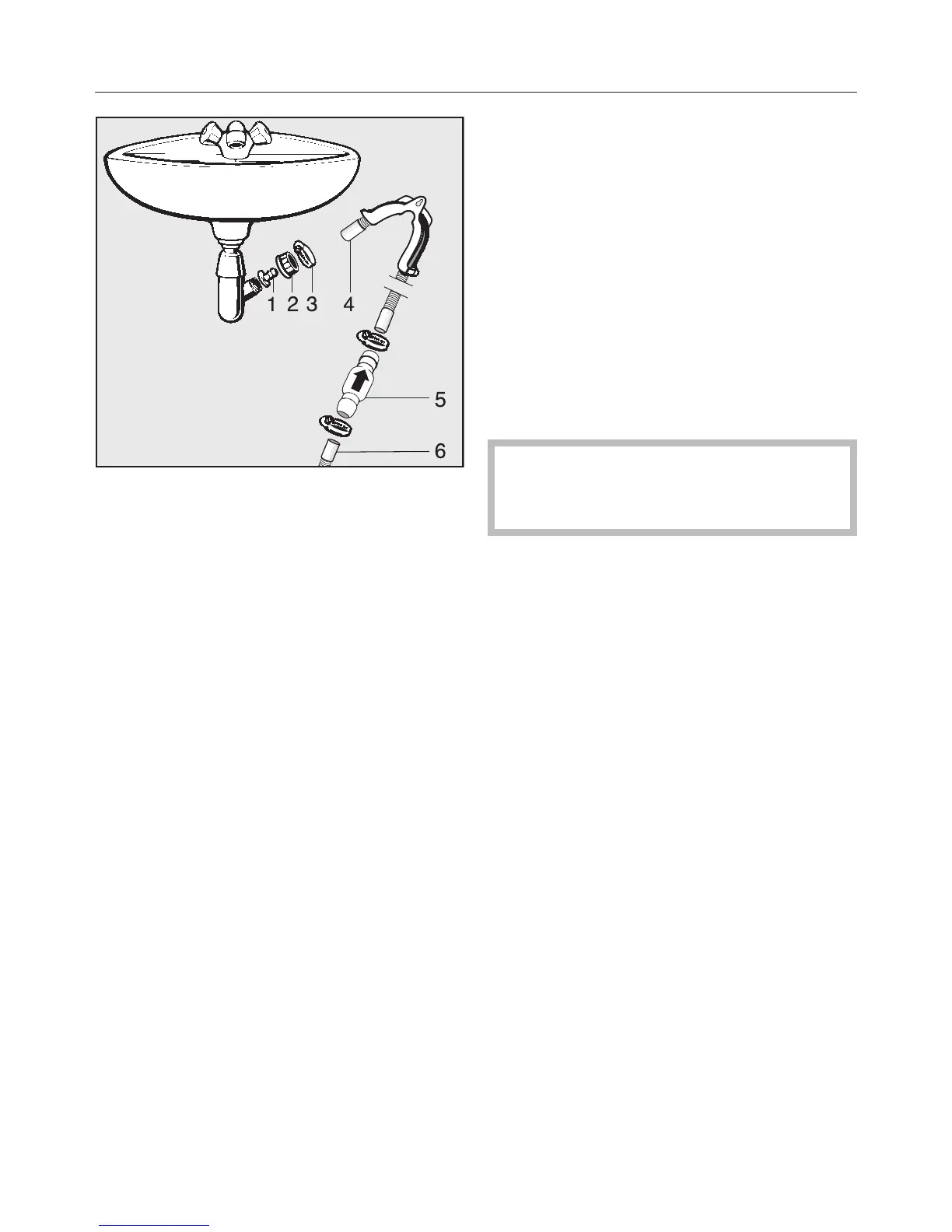

Installation and connection
72
1. Adapter
2. Nut
3. Hose clip
4. End of the hose (secured with the
hose holder)
5. Non-return valve
6. Tumble dryer drain hose
Fi
t adapter 1 to the sink drain outlet
using nut 2.
The nut is usually fitted with a washer
which must be removed.
A
ttach the end of the hose 4 to
adapter 1.
Use the ho
se holder.
Use a scr
ewdriver to tighten hose clip
3 up close to the nut.
F
it non-return valve 5 to tumble dryer
drain hose 6.
Non-return valve 5 ha
s to be fitted so
that the arrow points in the direction
of flow (i.e. towards the sink).
Secur
e the non-return valve using
hose clips.
