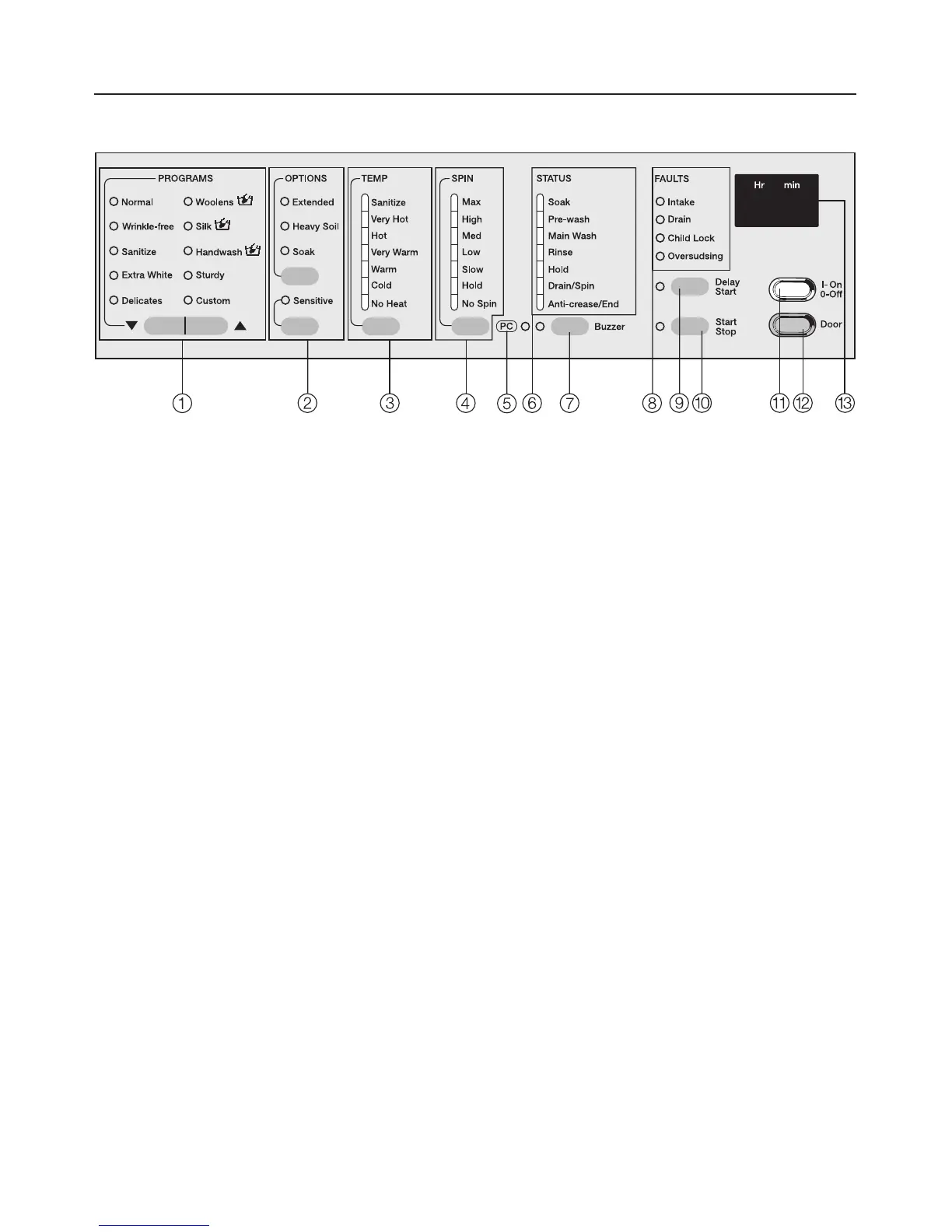

Control panel
a Program selection buttons e-
For selecting a program.
b Wash options
Special features to enhance a wash
program.
c Temperature button
For selecting the desired wash
temperature.
d Spin speed button
For selecting the desired spin speed.
e PC Indicator
Allows a service technician to check
and update the wash programs.
f Program status display
Shows the current cycle of the wash
program.
g "Buzzer" button
h Fault indicators
i "Delay Start" button
For delaying the start of a program.
j "Start / Stop" button
Begins the wash program or
interrupts a program.
k "On / Off" button
Turns the machine on and off.
l "Door" button
Opens the drum door.
m Display (hr / min)
Shows the delayed start time and the
countdown to the end of the
program.
Guide to the washer
5
