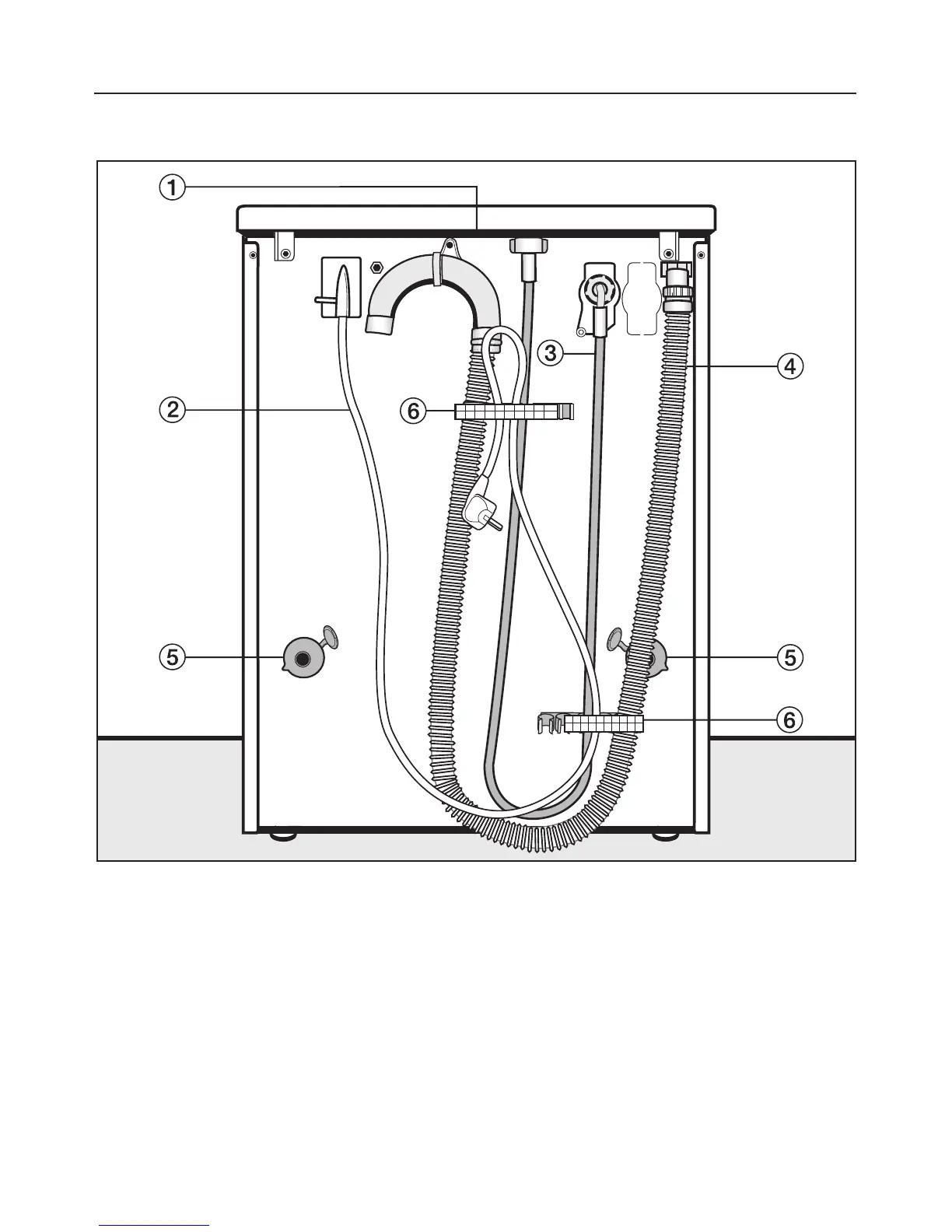

Rear view
a Protruding lid for holding when
moving the machine
b Electricity supply cable
c Inlet hose (tested to withstand
pressure of at least 7,000 kPa)
d Drain hose
e Transit bar covers
f Restraining clip for:
–
Inlet hose
–
Drain hose
–
Electricity supply cable
–
Transit bars when removed
Installation and connection
44
