Guide to the machine

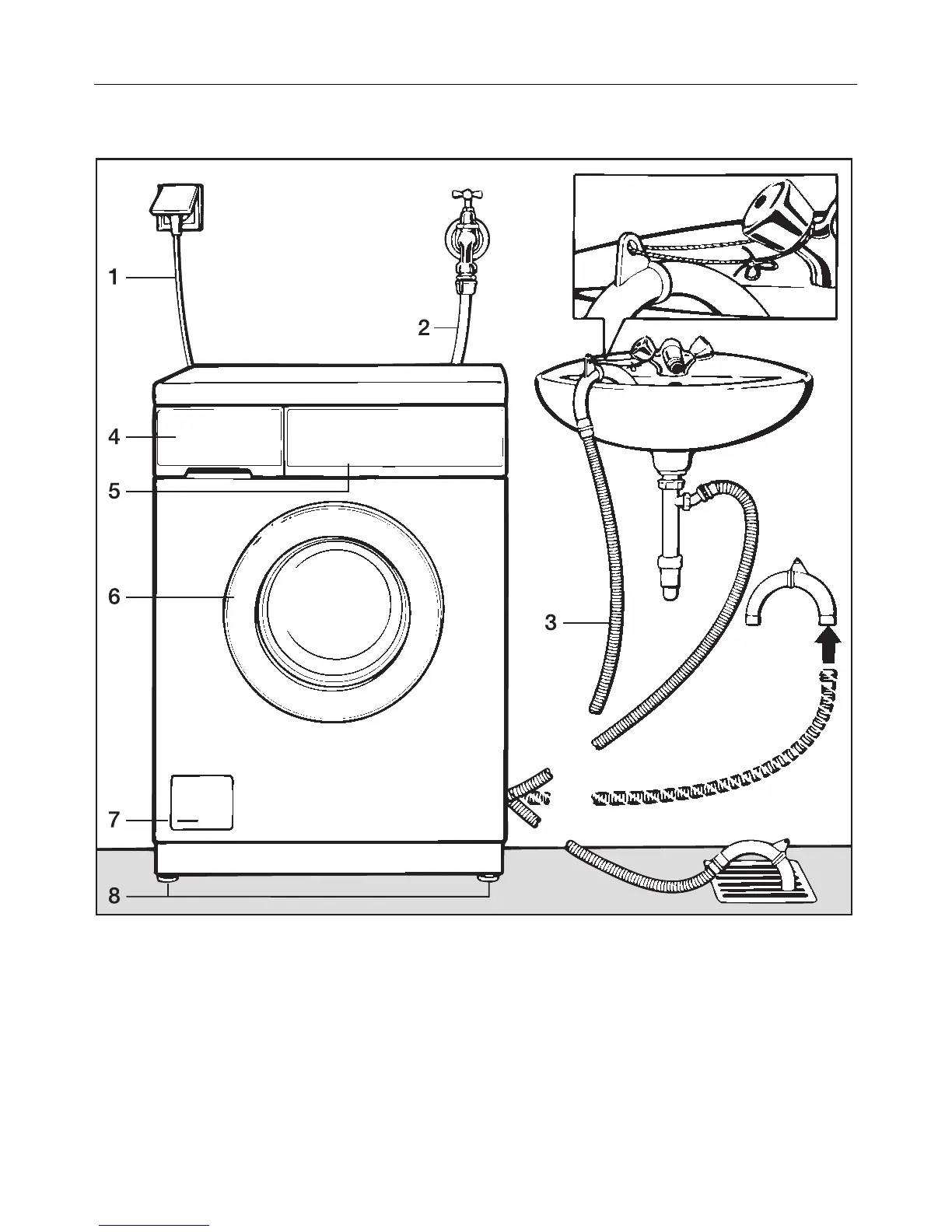

General view
1 Electric supply cable
2 Inlet hose (able to withstand press-
ures up to 70 bar)
3 Flexible drain hose (with detachable
swivel elbow)
4 Detergent dispenser drawer
5 Facia panel with controls
6 Door
7 Access panel for drain pump, drain fil-
ter and emergency door release
8 Four height adjustable feet
Guide to the machine
6
