Fitting or changing the decor
panel
Note: The door should be kept shut
for fitting or changing the decor
panel.
^

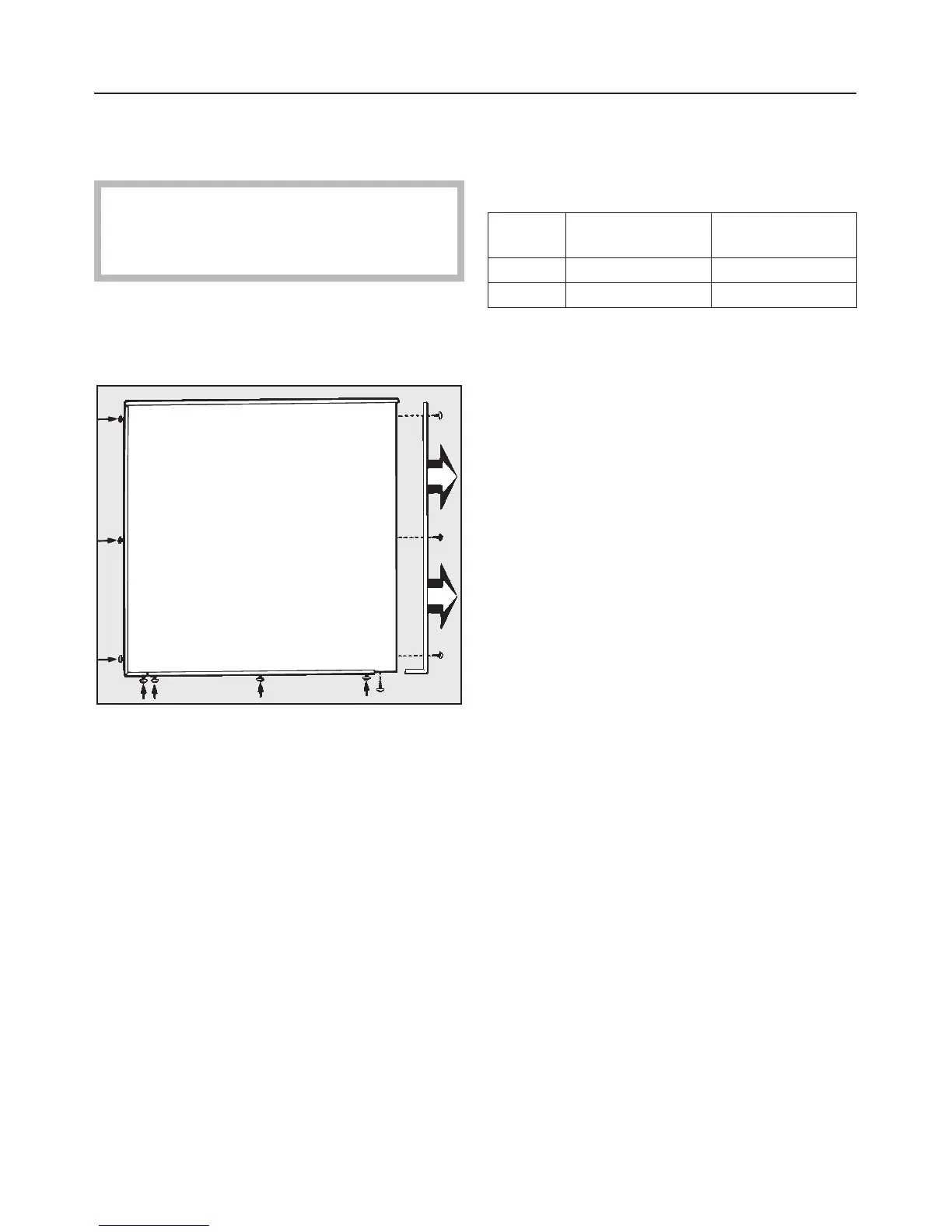

Unscrew 4 screws from the decor
strip on the door catch side of the
door and take the decor strip off.
^ Unscrew the remaining 7 screws from
the lower and side decor strips until
the decor panel bows slightly. It can
then be taken off and a new one fit
-
ted.
Re-assemble in the reverse order and
tighten the screws.
Decor panel dimensions
(The figures given in brackets indicate
the tolerance level in mm.)
Panel thickness
1 mm to 1.5 mm
Panel thickness
1.6 mm to 4 mm
Width 586 (+1) mm 586 (+1) mm
Height 600 (+1.5) mm 595.0 (+1.5) mm
Panels more than 1.5 mm thick require
an adapter strip for a 4 mm thick decor
panel. This is available from your Miele
dealer or the Miele Spare Parts Depart
-
ment:
Installation
55
