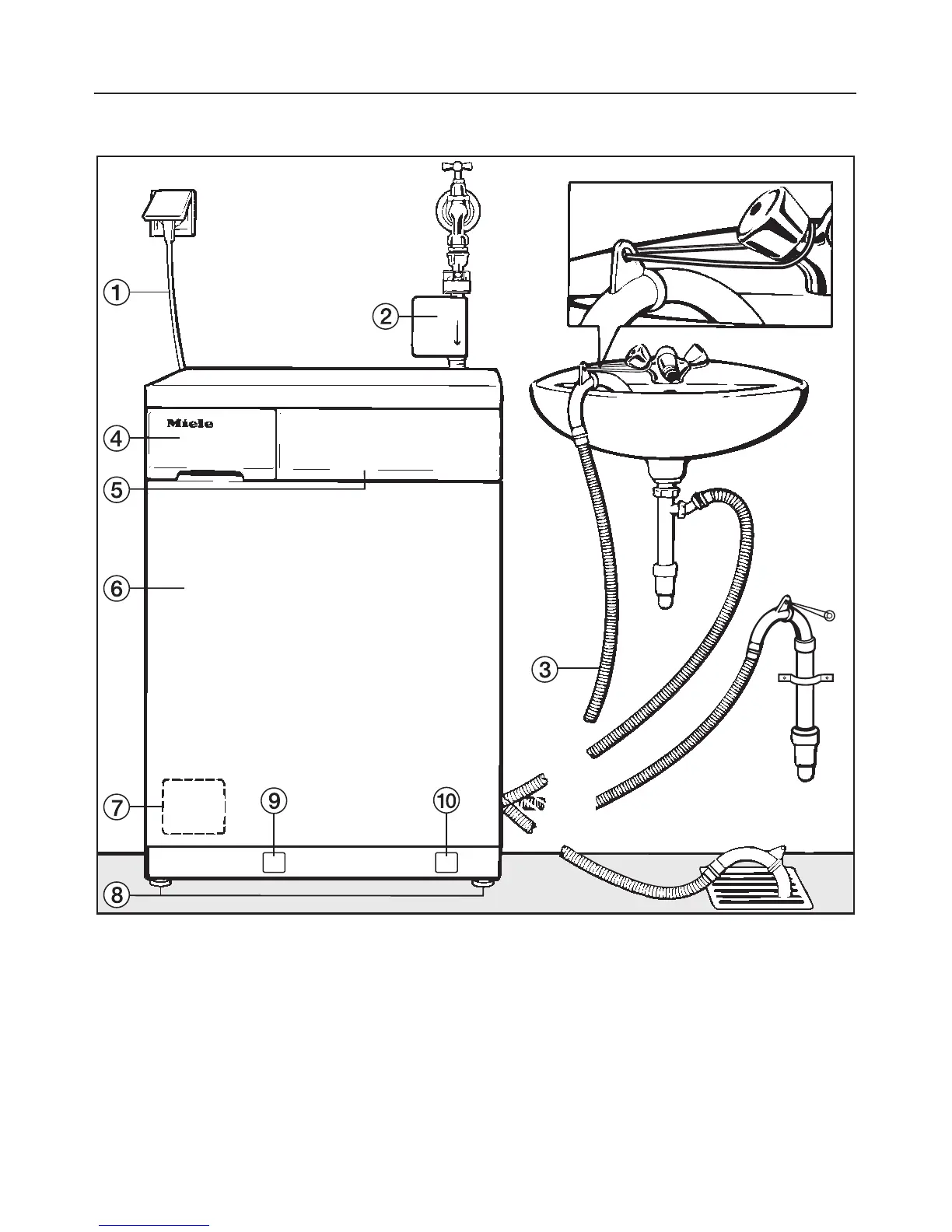

General view
a Electric supply cable
b Inlet hose with "Waterproof" system
c Flexible drain hose (with detachable
swivel elbow)
d Detergent dispenser drawer
e Facia panel with controls
f Drum door
g Access panel for drain pump and fil
-
ter
h Four height adjustable feet
i Panel for emergency door release
(door hinged right) and for drainage
(door hinged left or right)
j Panel for emergency door release
(door hinged left)
Guide to the machine
6
