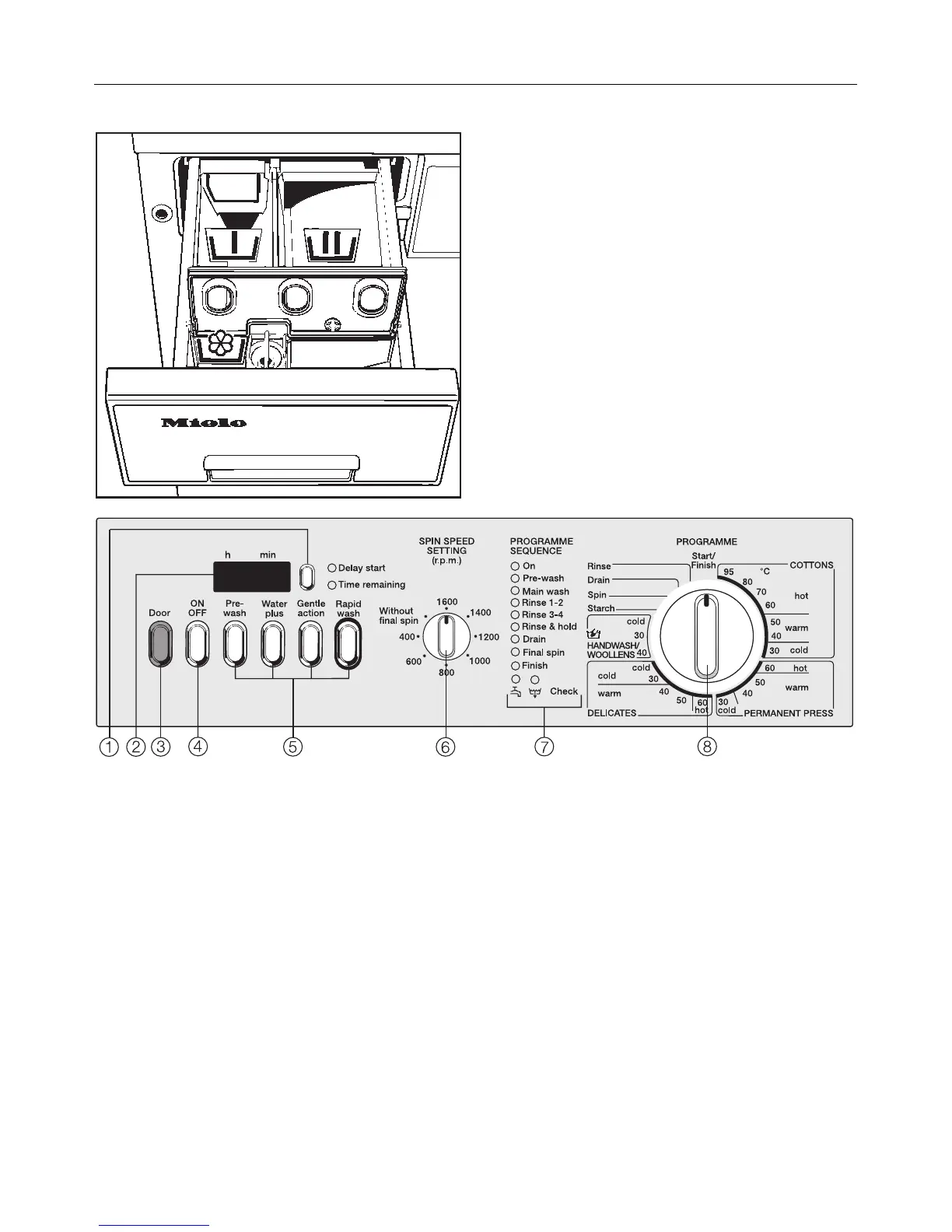

b “Delay start” button.
c Time display “h mins”.
d “Door” button;
opens the drum door.
e “ON/OFF” button;
to turn machine on or off or
to interrupt a programme.
The “On” lamp illuminates.
Detergent dispenser drawer
Compartment i - for the pre-wash.
Compartment j - for the main wash.
Compartment
p (with lid) - for fabric
softener or starch.
f Pushbuttons for additional functions.
g SPIN SPEED SETTING switch.
h PROGRAMME SEQUENCE indica-
tors (LED indicator lamps).
i Programme SELECTOR switch.
Guide to the machine
4
