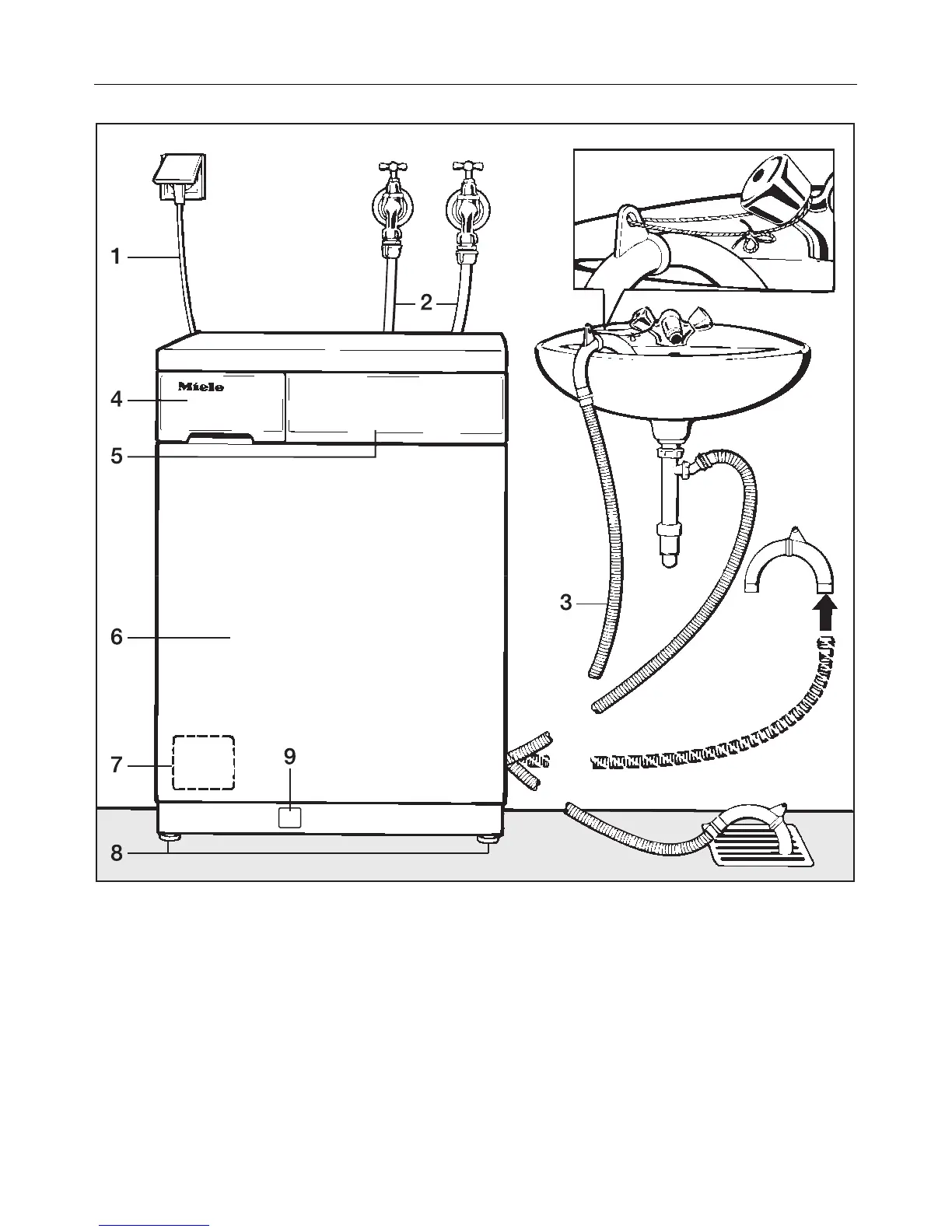

Guide to the machine
1 Electric supply cable
2 High pressure inlet hoses
3 Flexible drain hose, with detachable
swivel elbow
4 Detergent dispenser drawer
5 Facia panel with controls
6 Drum door
7 Access panel for drain pump and filter
8 Four height adjustable feet
9 Emergency door release and drainage
Guide to the machine
3
