Miele W4802 - Rear

Product and Cut-out Dimensions Page 3 of 5
W 4802 W4842 Super Large Capacity Washing Machine
W
4802
,
W4842
Super
Large
Capacity
Washing
Machine

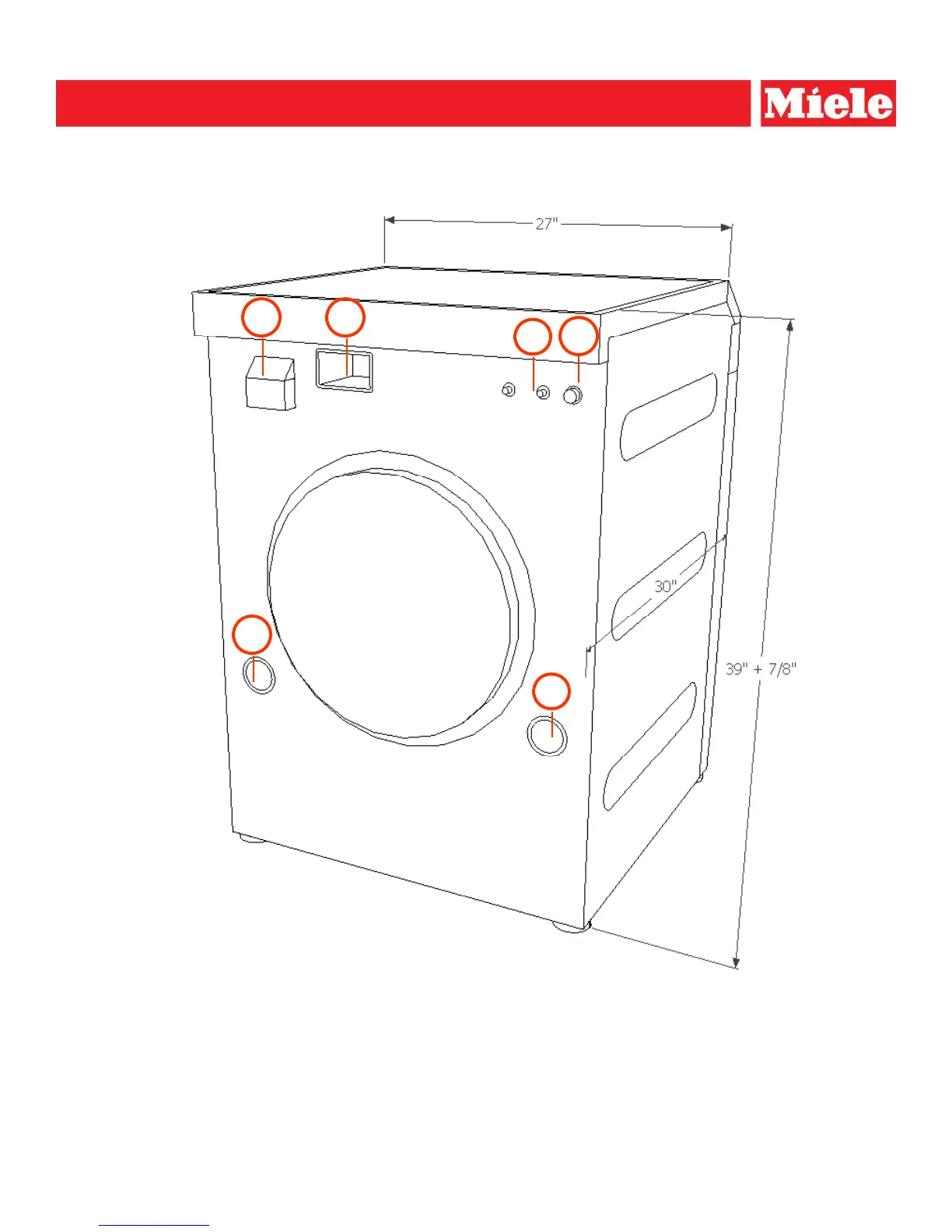

Rear
1
2
3
4
1
2
5
5
Location Codes
1 –Drain
2 – Water
3 – Power supply box with connection cable with plug, Length = 60” (1524 mm)
120 V, 60 Hz, 15 A fuse rating.
Due to its ability to heat the water internally, this washing machine requires a dedicated
electrical outlet
Ensure that the power outlet is accessible after installation
electrical
outlet
.
Ensure
that
the
power
outlet
is
accessible
after
installation
4 – WLAN Port
5 – Shipping Struts
Notes
All installations must be done in accordance with local codes.
Drawing is not to scale Specification Sheets OJS 04052012
