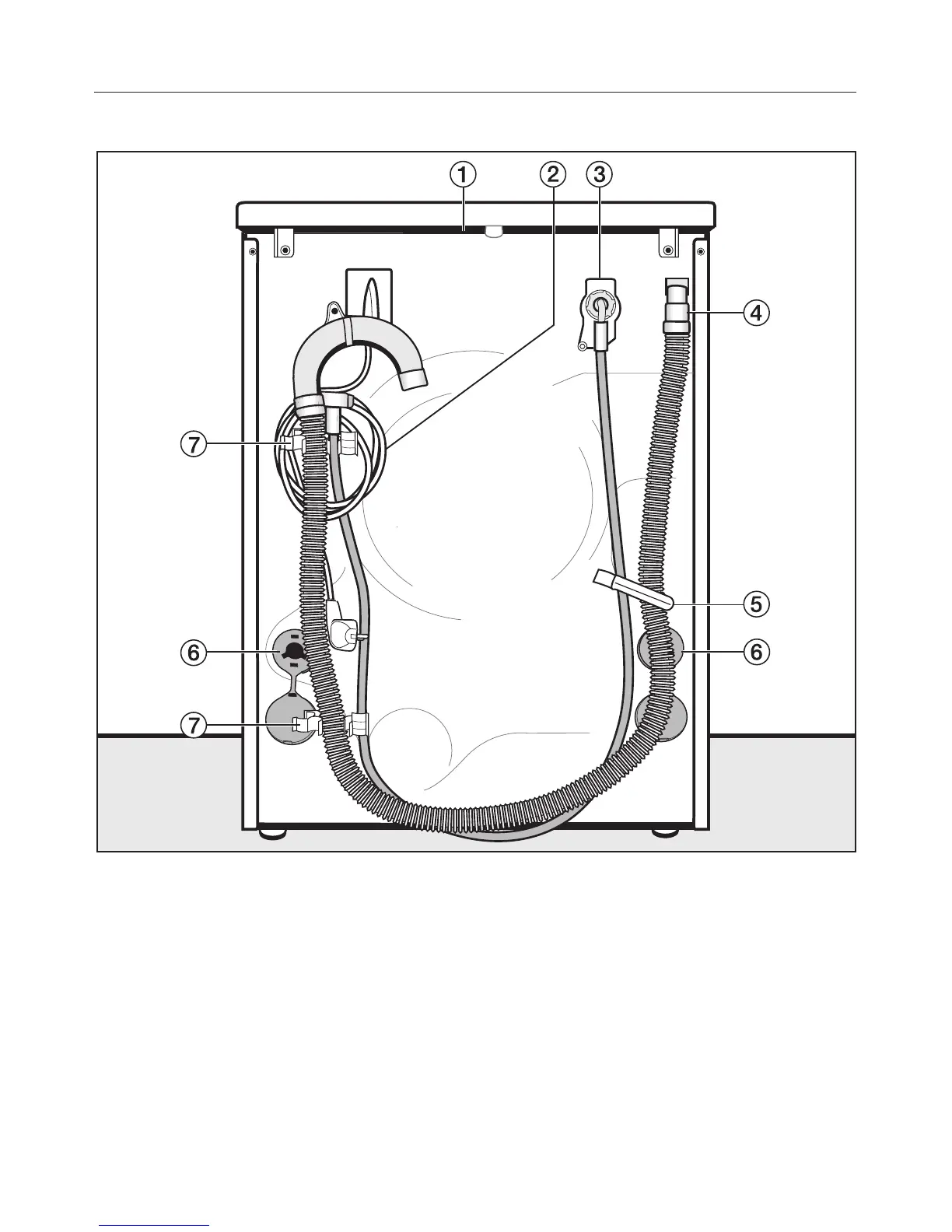

Rear view
a Protruding lid for holding when
moving the machine
b Electricity supply cable
c Inlet hose (tested to withstand
pressure of at least 7,000 kPa)
d Drain hose
e Transport clip for inlet and drain
hoses
f Safety cap for transit bars
g Transport clip for inlet and drain
hoses and for storing transit bars
when not in use.
Installation and connection
49
