Installation

*INSTALLATION*

58

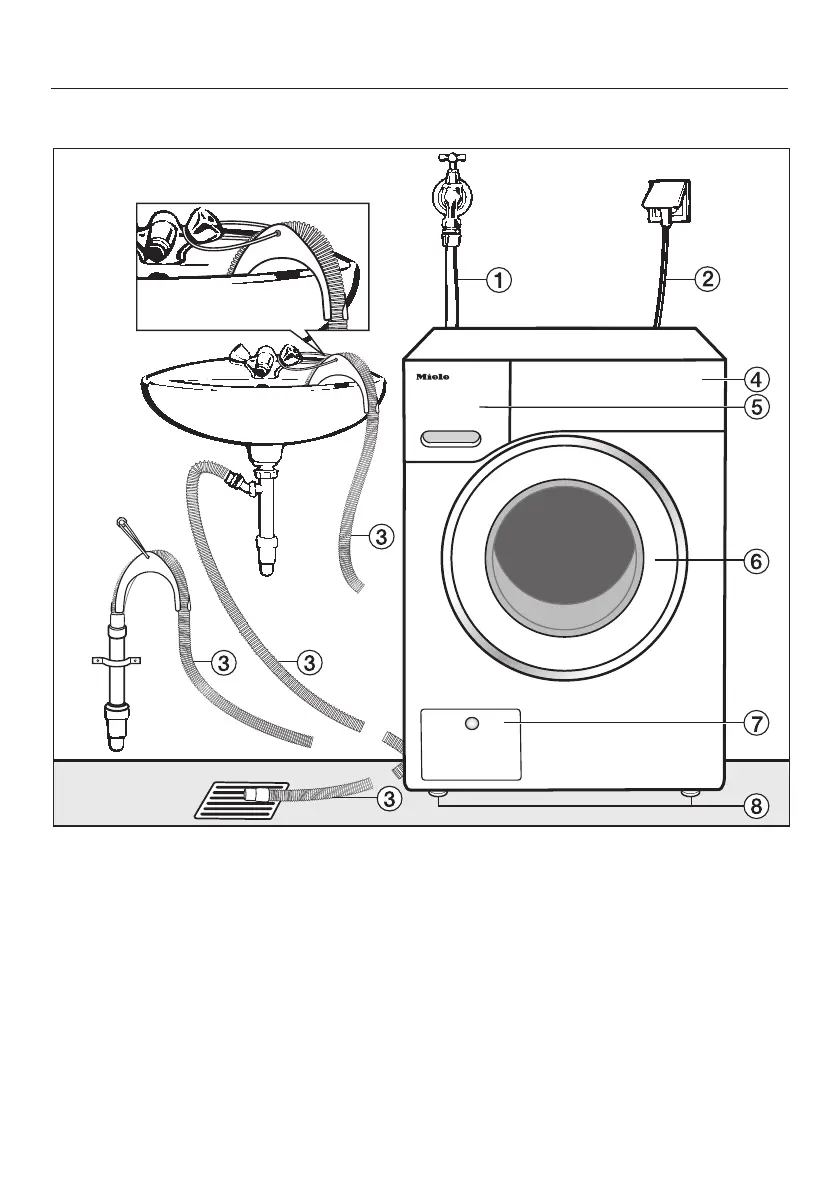

Front view

a

Water inlet hose (pressure tested to

7000kPa)

b

Mains connection cable

c

Flexible drain hose (with detachable

swivel elbow)

d

Control panel

e

Detergent dispenser drawer

f

Door

g

Access to filters, pumps and emer-

gency release

h

Four height-adjustable feet
