20

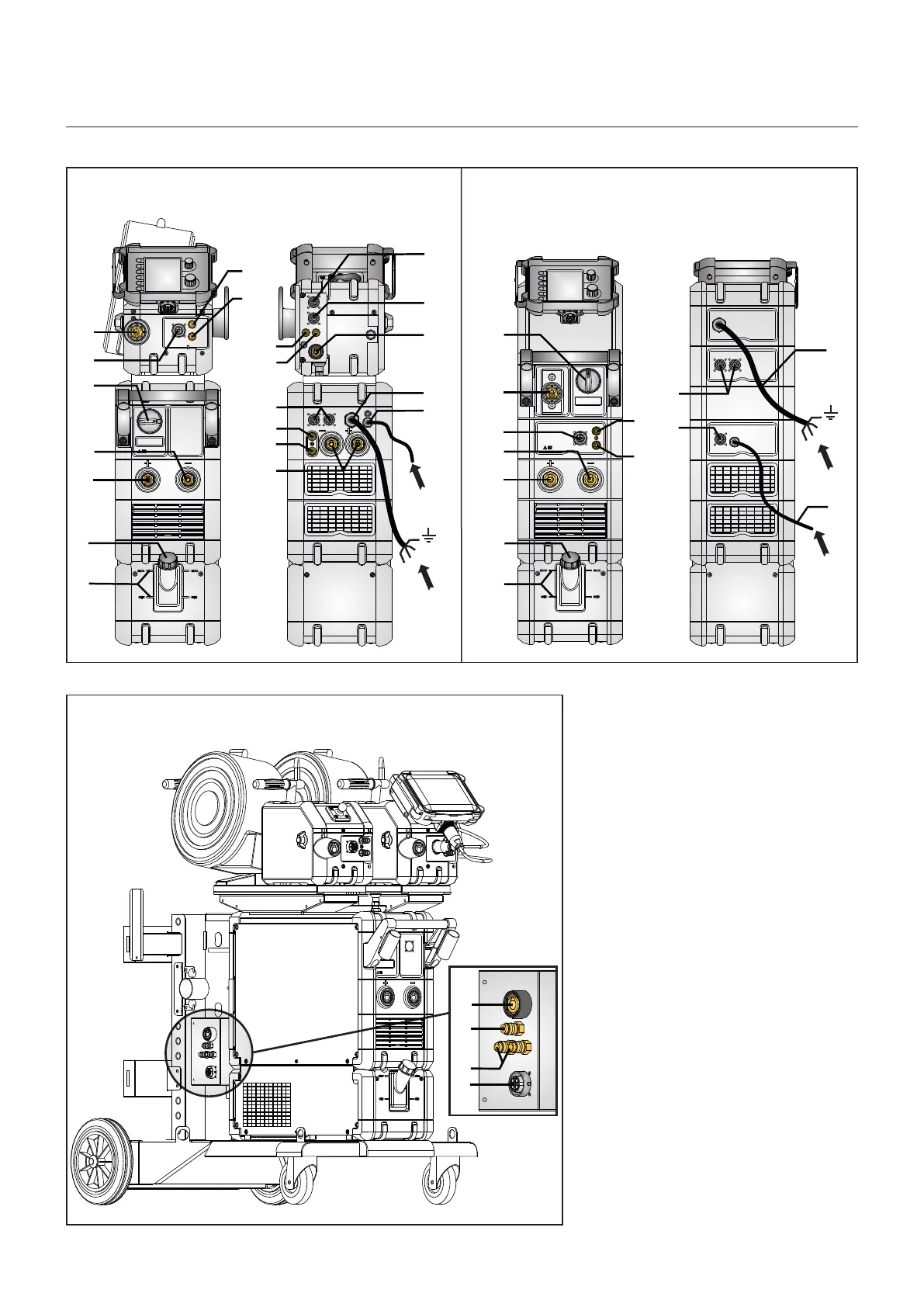

Connection and start-up
1. Mains connection
2. Power switch on/off
3. Connection of shielding gas
4. Connection of welding hose
5a. Connection of cooling hose, flow (blue)
5b. Connection of cooling hose, return (red)
6. Connection of earth clamp (MIG) or
electrode holder (MMA)
7. Connection of remote control
8. Connection of earth clamp (MMA) or
electrode holder (MMA)
9. CAN connection and MWF supply
10. Connection of intermediary cable
11. Refill of cooling liquid
12. Cooling liquid level control (Min/Max)
13. Analog remote control plug (optional
equipment)
Power
F
F
F
1
GAS
2-6 bar
3
2
4
5b
5b
5a
6
7
8
10
9
9
10
11
12
Power
F
F
F
11
12
6
8
4
7
2
5b
1
9
3
GAS
2-6 bar
13
13
5a
5a
5a
5b
Sigma Select S Sigma Select C
10
3
5
9
Sigma Select with twin MWF 30
