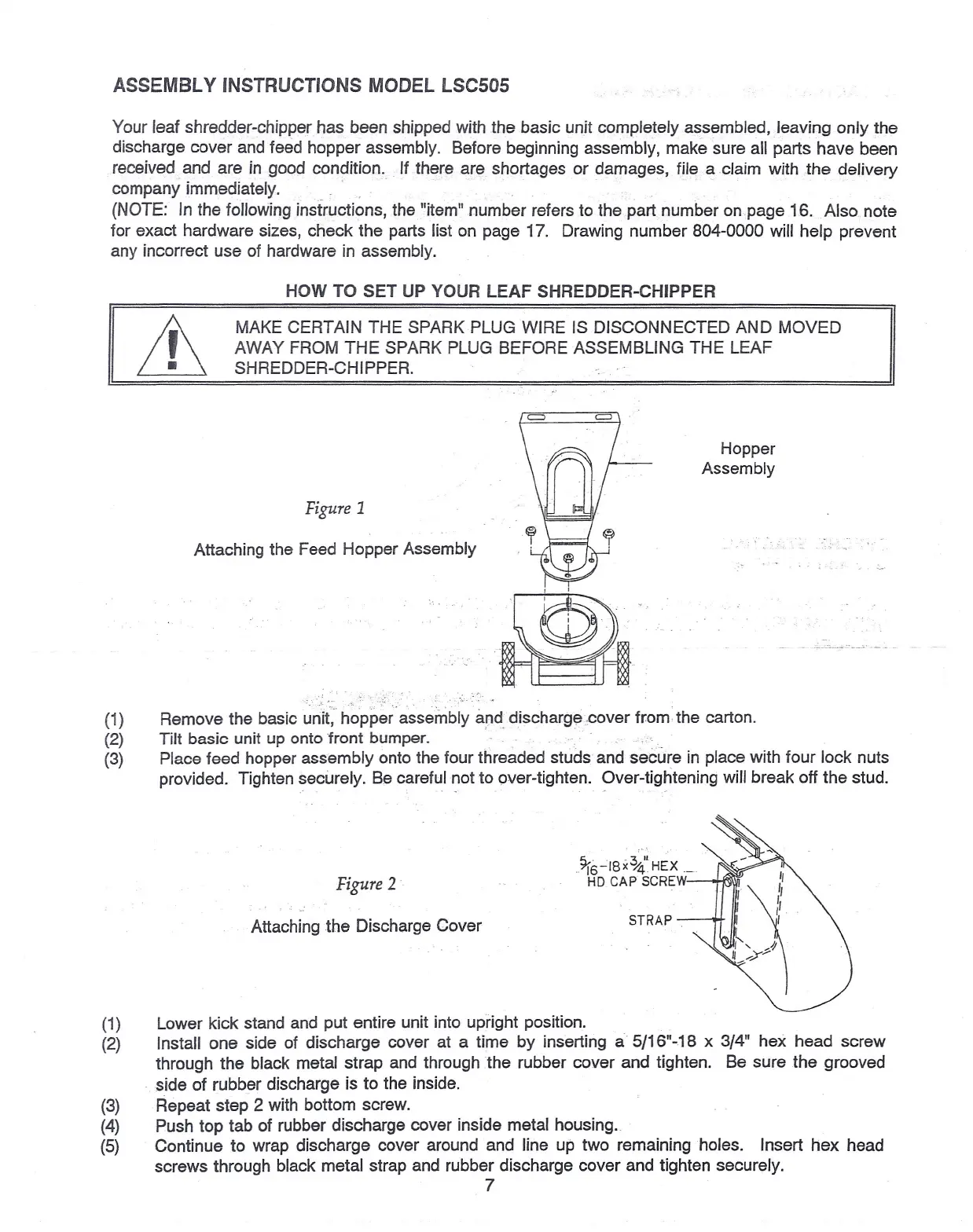

ASSEMBl Y INSTRUCTIONS MODEL lSC505
Your leaf shredder-chipperhas been shipped with the basic unit completely assembled, leaving only the
discharge cover and feed hopper assembly. Before beginning assembly, make sure all parts have been
received and are in good condition. If there are shortages or damages, file a claim with the delivery
company immediately.. . .
(NOTE: In the foHowing instructions, the "item"number refers to the part number on page 16. Also note
for exact hardware sizes, check the parts list on page 17. Drawing number 804-0000 will help prevent
any incorrect use of hardware in assembly.
HOW TO SET UP YOUR LEAF SHREDDER-CHIPPER
MAKE CERTAIN THE SPARKPLUG WIRE IS DISCONNECTED AND MOVED
AWAY FROM THE SPARK PLUG BEFORE ASSEMBLING THE LEAF
SHREDDER-CH IPPER.
Figure 1
Hopper
Assembly
Attaching the Feed Hopper Assembly
(1)
(2)
(3)
,
..
Remove the basic unit;' hopper assembly anddischarqecover from, the carton.
Tilt basic unit up onto front bumper. . .. .' .., '
Place feed hopper assembly onto the four threaded studs and secure in place with four lock nuts
provided. Tighten securely. Be careful not to over-tighten. Over-tightening wi" break off the stud.
"
,
Attaching the Discharge Cover
STRAP-"""""
Figure 2
9r6"':18X~'HEX_
HD CAP SCREW
(1) Lower kick stand and put entire unit into upriqht position.
(2) Install one side of discharge cover at a time by inserting
a
5/16"-18 x 3/4" hex head screw
through the black metal strap and through the rubber cover and tighten. Be sure the grooved
. side of rubber discharge is to the inside.
(3) Repeat step 2 with bottom screw.
(4) Push top tab of rubber discharge cover inside metal housing.
(5) Continue to wrap discharge cover around and line up two remaining holes. Insert hex head
screws through black metal strap and rubber discharge cover and tighten securely.
7
To Next Page
