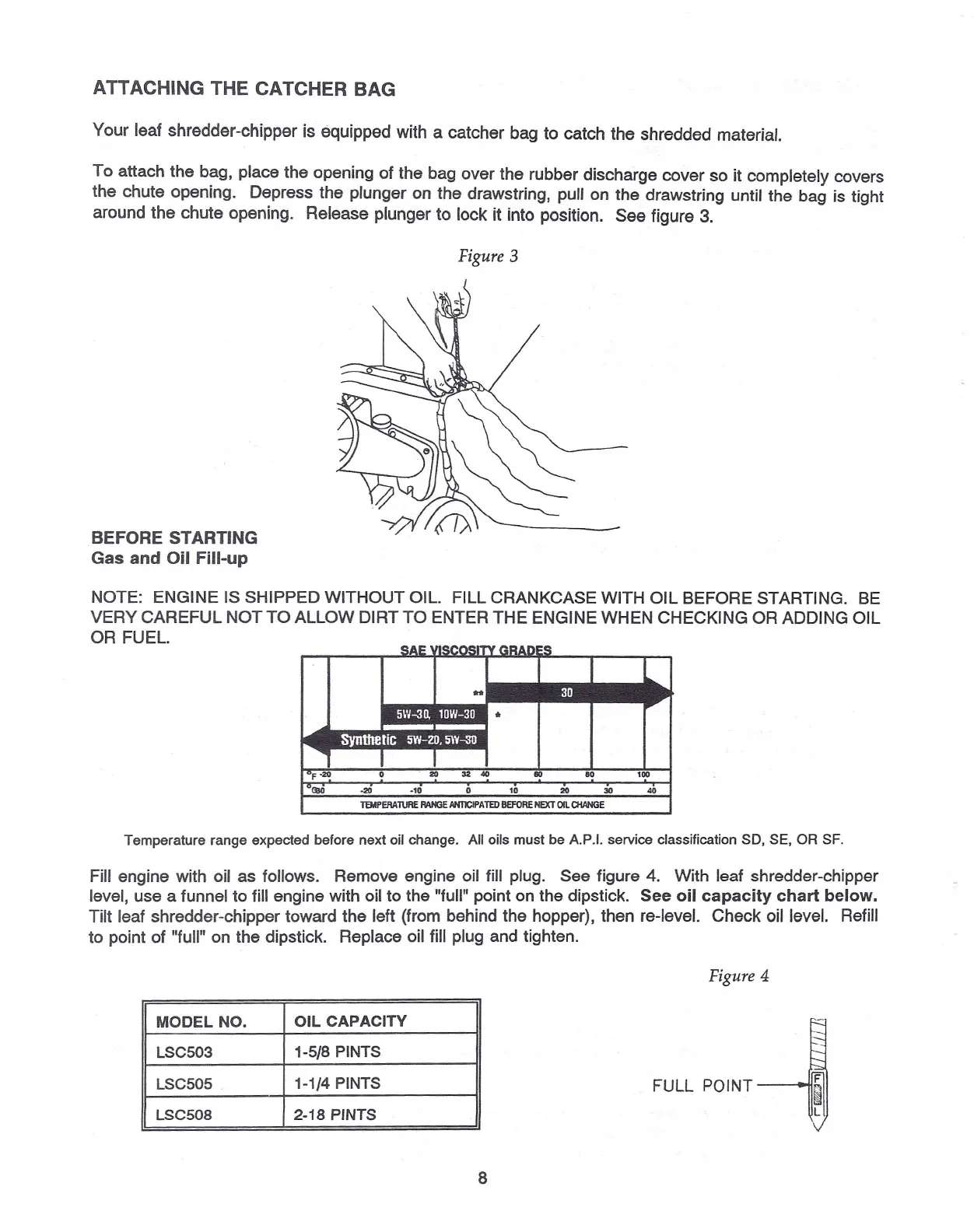

ATTACHING THE CATCHER BAG
Your leaf shredder-chipper is equipped with a catcher bag to catch the shredded material.
To attach the bag, place the opening of the bag over the rubber discharge cover so it completely covers
the chute opening. Depress the plunger on the drawstring, pull on the drawstring until the bag is tight
around the chute opening. Release plunger to lock it into position. See figure 3.
Figure 3
BEFORE STARTING
Gas and
Oil Fill-up
NOTE: ENGINE IS SHIPPED WITHOUT OIL. FILL CRANKCASE WITH OIL BEFORE STARTING. BE
VERY CAREFUL NOT TO ALLOW DIRT TO ENTER THE ENGINE WHEN CHECKING OR ADDING OIL
OR FUEL.
32
40
110
80
100
·20 ·10 0 10 20 30 40
lBoIPERAlURE RANGE ANTlCIPA TED BEFORE NEXT OIl CHANGE
Temperature range expected before next oil change. All oils must be A.P.1. service classification SO, SE, OR SF.
Fill engine with oil as follows. Remove engine oil fill plug. See figure 4. With leaf shredder-chipper
level, use a funnel to fill engine with oil to the "full" point on the dipstick. See oil capacity chart below.
Tilt leaf shredder-chipper toward the left (from behind the hopper), then re-level. Check oil level. Refill
to point of "full" on the dipstick. Replace oil fill plug and tighten.
Figure 4
MODEL NO.
Oil CAPACITY
LSC503
1-5/8 PINTS
LSC505 .
1-1/4 PINTS
LSC508 2-18 PINTS
FULL POINT-----'l
8
