Mikro MK201A - Connection Diagram and Case Dimensions; Connection Diagrams; Case Dimensions

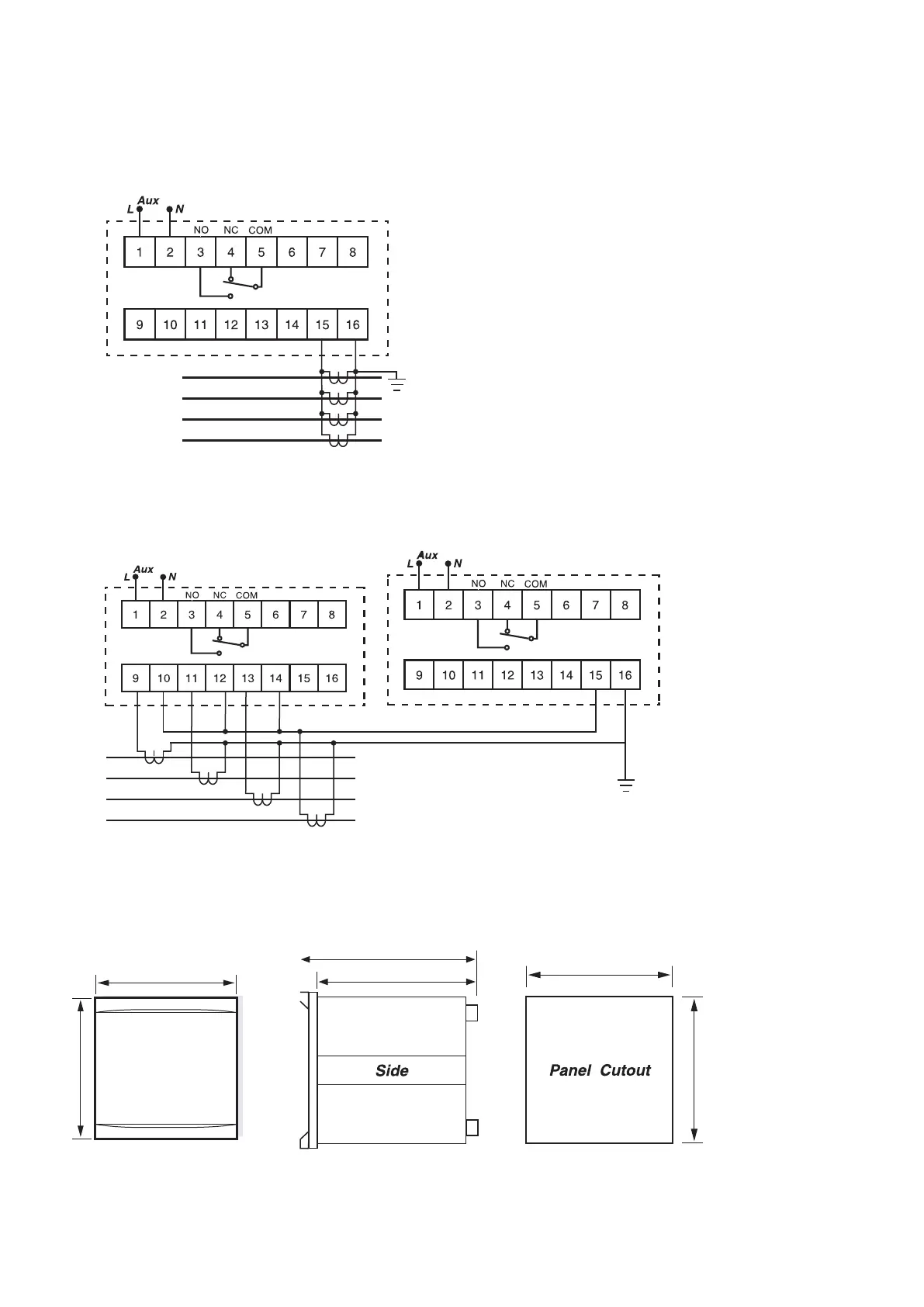

7. Connection Diagram
8. Case Dimensions
L1
L2
L3
N
MK 201A
R1
a) Earth fault relay
L1
L2
L3
N
MK204A
R1
MK 201A
R1
a) Combined overcurrent and earth fault relays
9 6 mm
9 6 mm
Fr o n t
90mm
70mm
90mm
90mm
