2-pin terminal input Voltage 24-57 V DC.
PoE-Out ports Ether1 - Ether8, max out per port output (input < 30 V): 640 mA, max out per port output (input > 30 V): 420 mA.
Max total out 2.59 A.
Total output power 130 W.
Total output current 2.28 A.
Mode B: .Ethernet port 2 - 8
Pins 4 & 5 = DC+
Pins 7 & 8 = DC-
Connecting to a POE Adapter:
Connect the Ethernet cable from the device to the POE port of the POE adapter.
Connect an Ethernet cable from your LAN to the LAN port of the POE adapter, please mind arrows for data and power flow.
Connect the power cord to the adapter, and then plug the power cord into a power outlet.
Configuration
Once logged in, we recommend clicking the "Check for updates" button in the QuickSet menu, as updating your RouterOS software to the latest version
ensures the best performance and stability. For wireless models, please make sure you have selected the country where the device will be used, to
conform to local regulations.
RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to
the possibilities: . In case an IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC https://mt.lv/help https://mt.lv/winbox
address of the device from the LAN side (all access is blocked from the Internet port by default).
For recovery purposes, it is possible to boot the device for reinstallation, see section .Buttons and jumpers
Mounting
The device is designed to use indoors and it can be mounted on the wall, or it can be placed on the desktop.

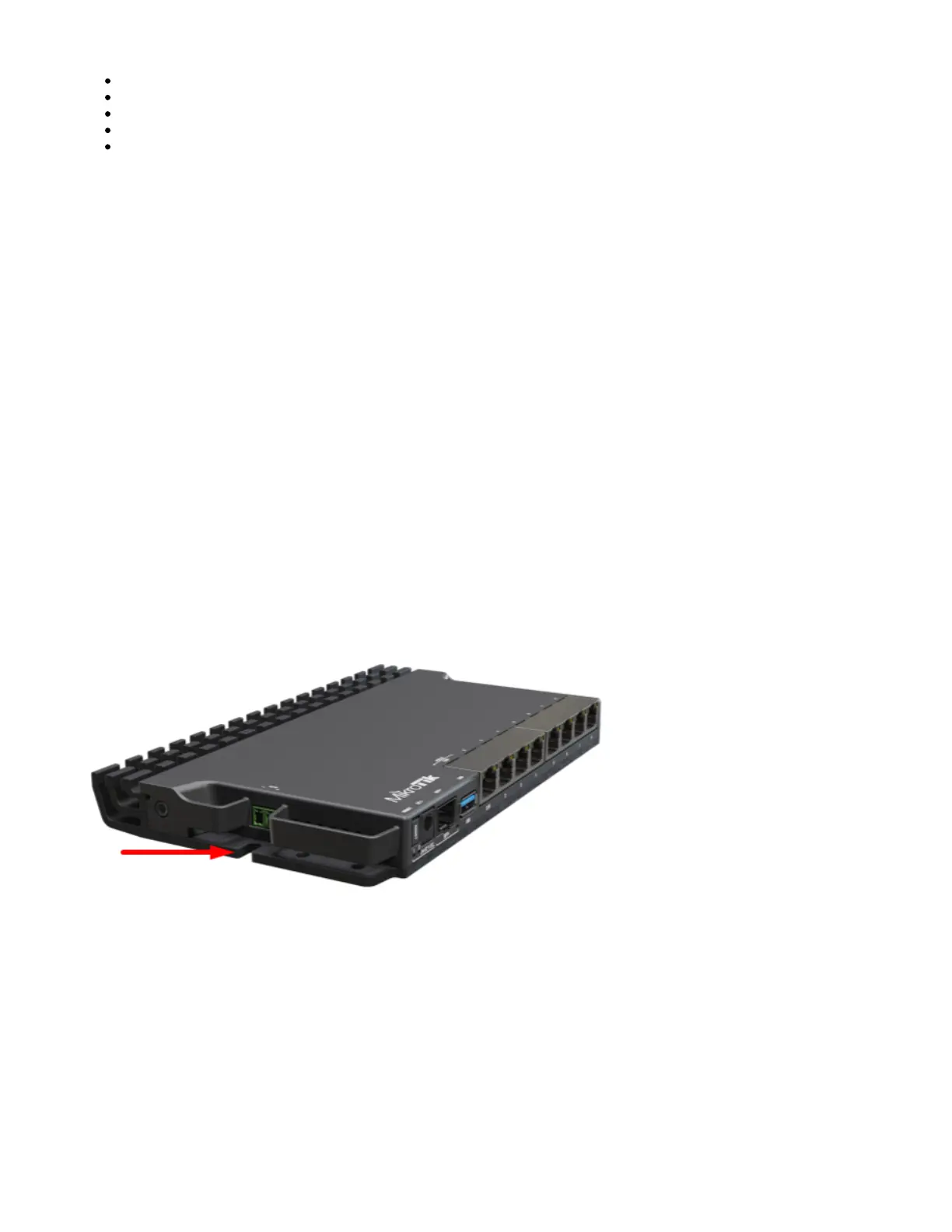

Find the designed mounting holes on both sides of the device, as shown in the picture;
Use provided screws to secure the device to the wall;
Based on the wall material you can use a drill bit and provided dowels.
The device has no protection from water contamination, please ensure the placement of the device in a dry and ventilated environment.
We recommend Cat6 cables for our devices.
The mounting and configuration of this device should be done by a qualified person.
Rackmount
If desired placement is rackmount, additional brackets can be purchased separately:
RB5009 rackmount kit K-79
