MikroTik RB5009UPr+S+IN User Manual

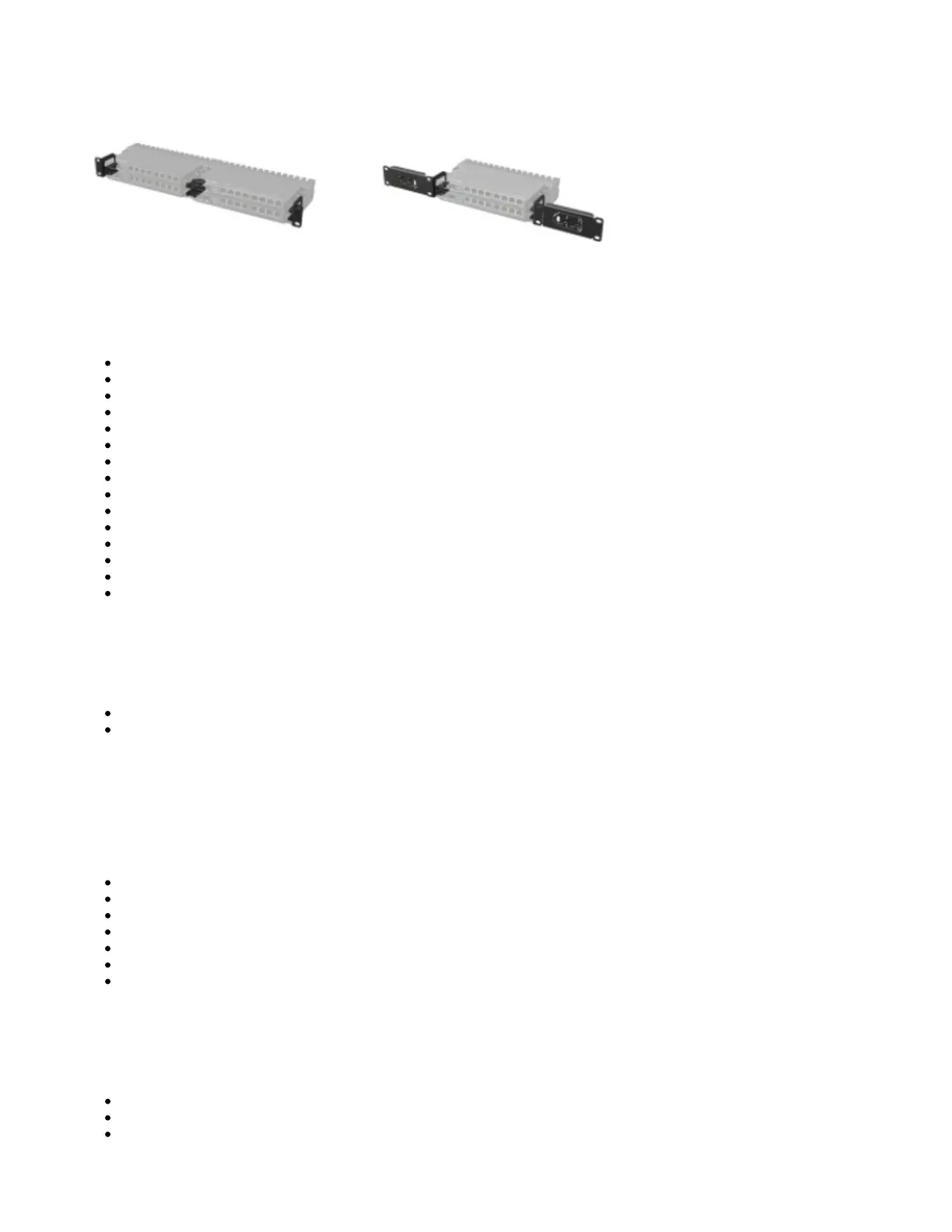

Extension slots and ports
Product code RB5009UPr+S+IN.
CPU 88F7040 1.4 GHz.
CPU architecture ARM 64bit.
CPU core count 4.
Size of RAM 1 GB.
RAM type DDR4.
Storage 1 GB, NAND.
A number of 1G Ethernet ports 7.
A number of 2.5G Ethernet ports 1.
A number of 10G SFP+ ports 1.
USB port 1 (3.0 type A).
Operating system Only v7 RouterOS.
Switch chip model 88E6393.
Dimensions 220 x 125 x 22 mm.
Operating temperature -40°C to +60°C.
Buttons and jumpers
The RouterBOOT reset button has the following functions. Press the button and apply the power, then:
Release the button when the green LED starts flashing, to reset the RouterOS configuration to defaults.
Release the button after LED is no longer lit (~20 seconds) to cause a device to look for Netinstall servers (required for reinstalling RouterOS over
the network).
Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.
Useful for RouterBOOT debugging and recovery.
LED
Hidden Green LED behind the Reset button is a USER LED
Blue LED 1 is the DC1 Power LED
Blue LED 2 is the DC2 Power LED
Green SFP+ LED is an SFP+ port link and activity LED
Ethernet RJ45 Green LEDs are Ethernet port link and activity LEDs
Ethernet RJ45 Port 1 Orange LED is PoE-in status LED
Ethernet RJ45 Port 2-8 Orange LEDs are unused on this model
Accessories
The package includes the following accessories that come with the device:
ADAPT1_EU/US Switching Power Supply 48V 2A.
SET1_ K-55 fastening set.
PAD1_ 4 pcs Pad D=7; H=1.5 mm, black, one side adhesive 3M988T
