MikroTik wAP ac User Manual

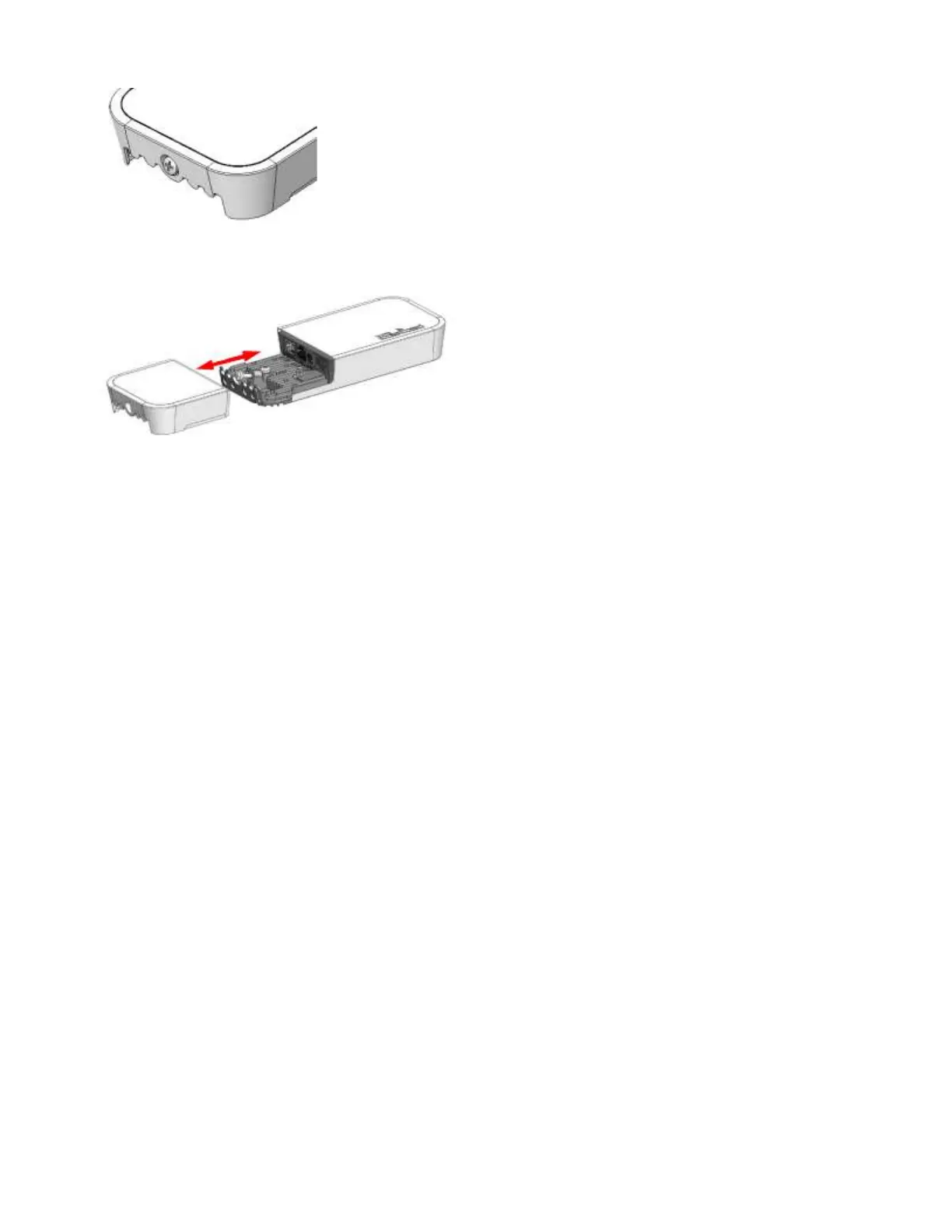

 Pull the cover in the opposite direction from the device to remove it.
 Reassemble.
Powering
The device accepts power from the power jack or from the Ethernet port, both provided in the package:
 Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 10-57 V
⎓ DC;
 ⎓Ethernet port accepts 802.3af/at PoE 18-57 V DC.
The power consumption under maximum load can reach 10 W. Please attach ground (earth) wire to the
screw under the bottom lid.
Connecting to a PoE Adapter:
1. Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter;
2. Connect an Ethernet cable from your local network (LAN) to the PoE adapter;
3. Connect the power cord to the adapter, and then plug the power cord into a power outlet.

MikroTik wAP ac Specifications

General

2.4 GHz	Yes
Frequency band	5.15 - 5.875, 2.412 - 2.484 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	- Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Flash memory	16 MB
Internal memory	64 MB
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna gain level (max)	2 dBi
AC input voltage	11 - 57 V
Power consumption (max)	12 W
Placement	Ceiling, Pole, Wall
Product color	White
Security algorithms	-

Weight and Dimensions

Depth	85 mm
Width	185 mm
Height	30 mm
