MikroTik wAP ac User Manual

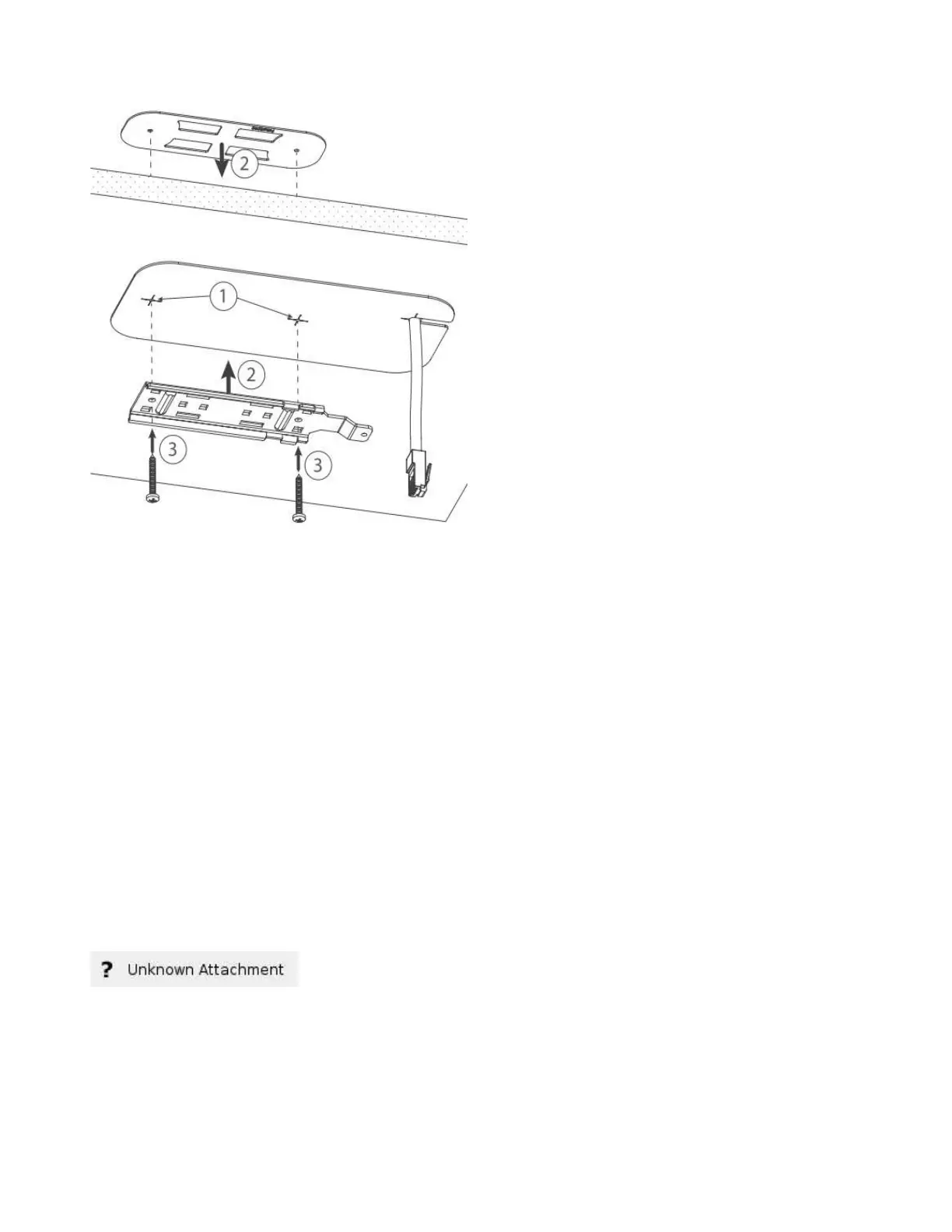

A Special bracket is included in the package to mount on the drop ceiling. As it consists of two parts, to
be attached on both sides of the ceiling tile.
1. Use the template to mark spots for holes.
2. Place both mounting brackets on the spot.
3. Secure them together using screws.
Continue assembling in the same manner if mounting on the wall.
1. Extend your Ethernet cable through the opening and connect to the Ethernet port.
2. Mount the device on the steel bracket.
3. Secure it in place with the screw.
4. Close bottom latch.
Bottom Lid
 The bottom lid is secured in place with the captive screw.
 Use the Philips PH2 screwdriver to unscrew it, but do not remove the screw completely.

MikroTik wAP ac Specifications

General

2.4 GHz	Yes
Frequency band	5.15 - 5.875, 2.412 - 2.484 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	- Mbit/s
Maximum data transfer rate (5 GHz)	1300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Flash memory	16 MB
Internal memory	64 MB
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna gain level (max)	2 dBi
AC input voltage	11 - 57 V
Power consumption (max)	12 W
Placement	Ceiling, Pole, Wall
Product color	White
Security algorithms	-

Weight and Dimensions

Depth	85 mm
Width	185 mm
Height	30 mm
