Keypad power 7-24 VAC/VDC
Relay output normally open
+
-
Relay output normally closed
Relay common
1 Sound - OFF/ON
2 LEDs - OFF/ON
3 Light - OFF/ON
5 Three strikes your out - OFF/ON
Master Reset - Clears Master
Code. Remove battery for 30 sec-
onds, hold push button down
while reconnecting battery. New
master code may now be pro-
grammed.
(Three Strikes Your Out is
used to prevent someone from
trying to guess a correct user
code. When three incorrect
codes are entered in a row, the
keypad will automatically shut
down for 3 minutes.)

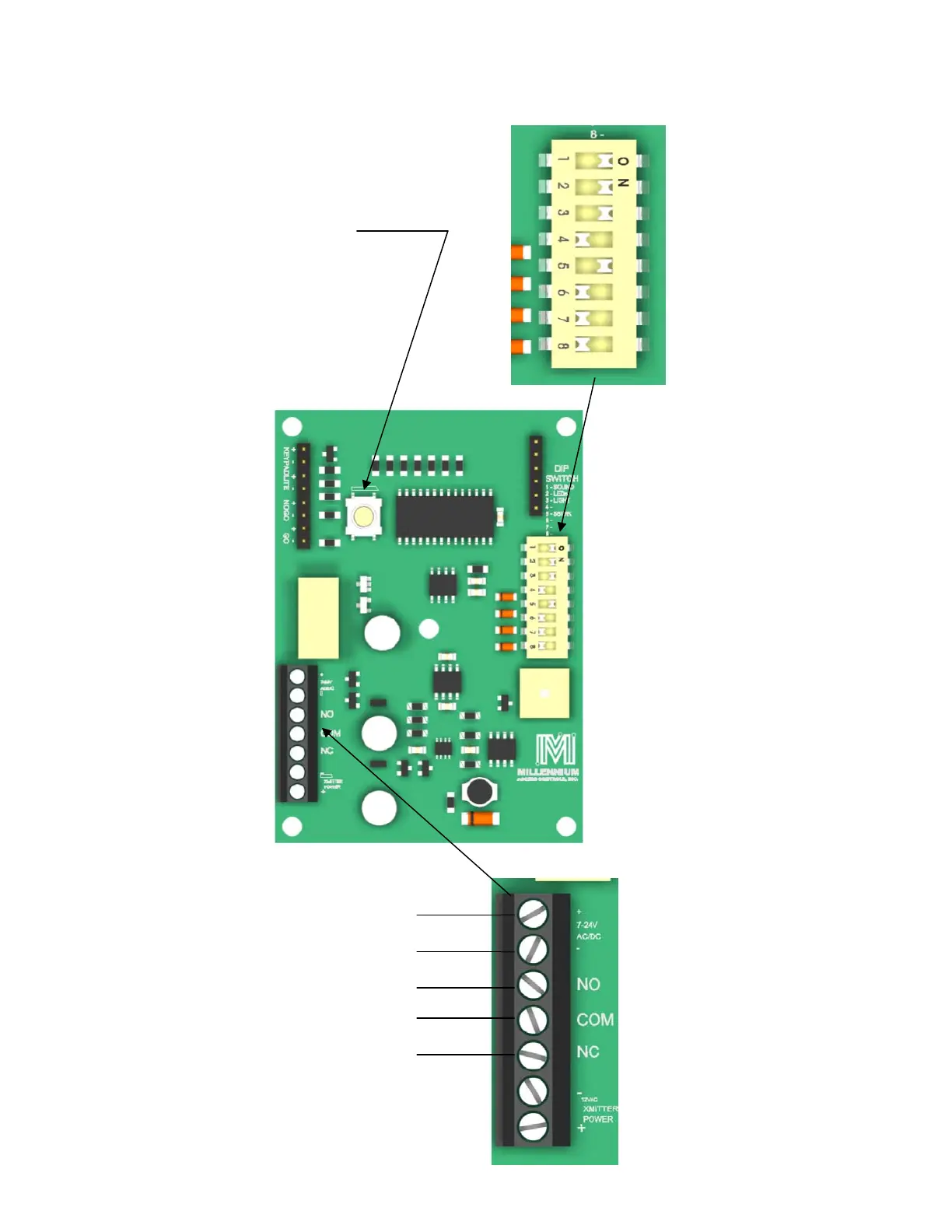

CIRCUIT BOARD INFORMATION
6 Wireless Mode - OFF/ON
