optional isolator
daughter board
motherboard
10 to 15V dc operation
12 V dc model
18 to 30V dc operation
24 V dc model

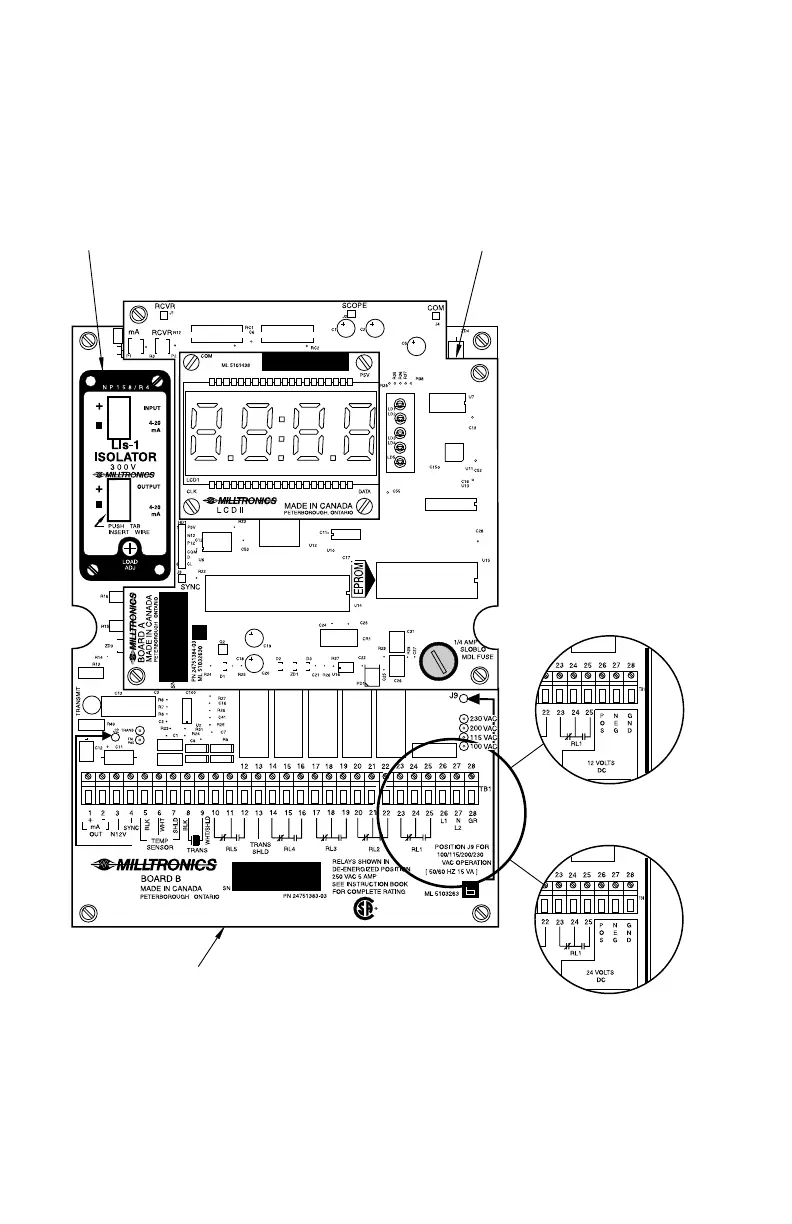

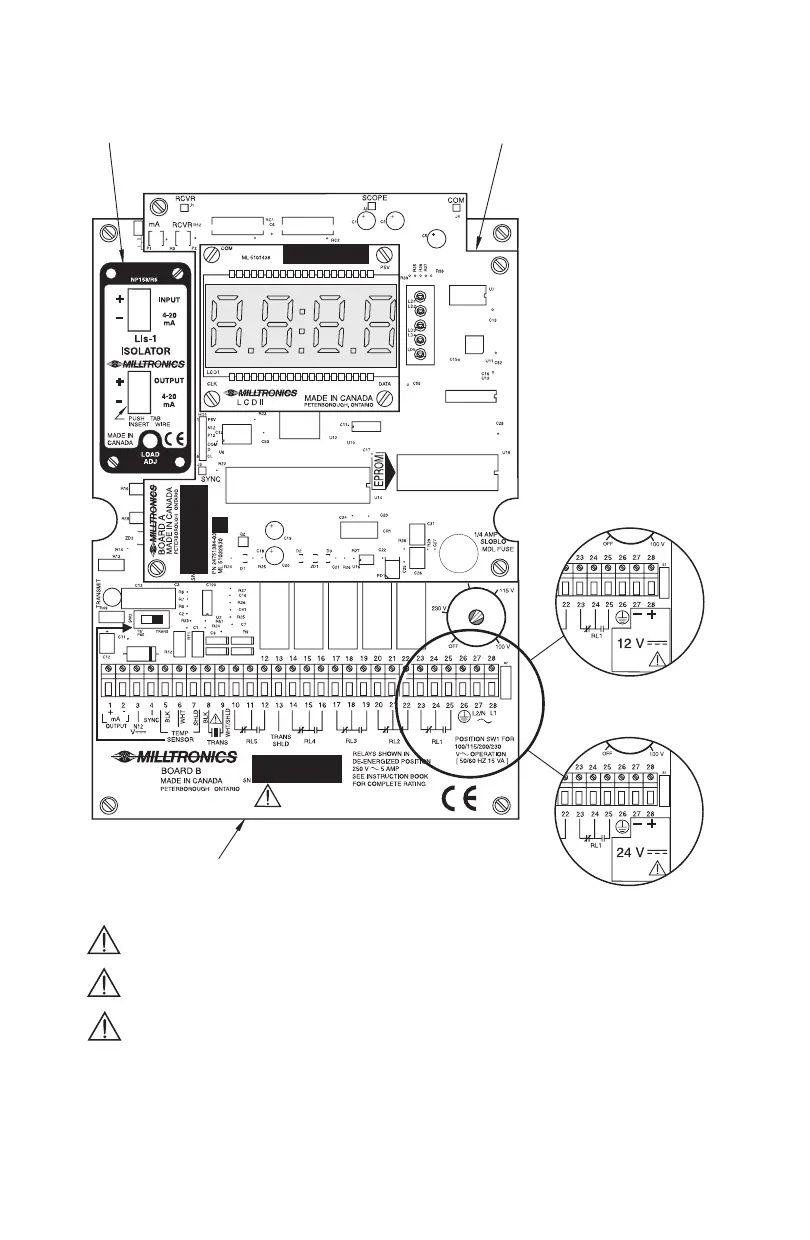

CIRCUIT BOARD LAYOUT
Relay contact terminals are for use with equipment having no accessible
live parts and wiring having insulation suitable for at least 250 V.
The maximum allowable working voltage between
adjacent relay contacts shall be 250 V.
Hazardous voltage present on transducer terminals during operation.
dc terminals shall be supplied from an SELV source in accordance
with IEC 1010-1 Annex H.
All field wiring must have insulation suitable for at least 250 V.
PL-513 12
