INSTALLATION
Installation shall only be performed by qualified personnel
and in accordance with local governing regulations.
MULTIRANGER PLUS
The MultiRanger Plus should be mounted in an area that is within the unit’s ambient
temperature range, and is suitable for the specified enclosure. The front cover should
be accessible for programming and viewing.
It is advisable to keep the MultiRanger Plus away from high voltage or current runs,
contactors and SCR control drives.
This product is susceptible to electrostatic shock.
Follow proper grounding procedures.
160 mm
(6.3")
131 mm
(5.1")
lid screws
(6 places)
97 mm
(3.8")
82 mm
(3.2")
240 mm
(9.5")
programmer
228 mm
(9")
Suitable location for conduit entrances.
Milltronics recommends using
a punch for making holes
in enclosure.
lid
enclosure
customer mounting
screw
mounting holes
(accessed under lid
4.3 mm (0.17") dia.
4 places

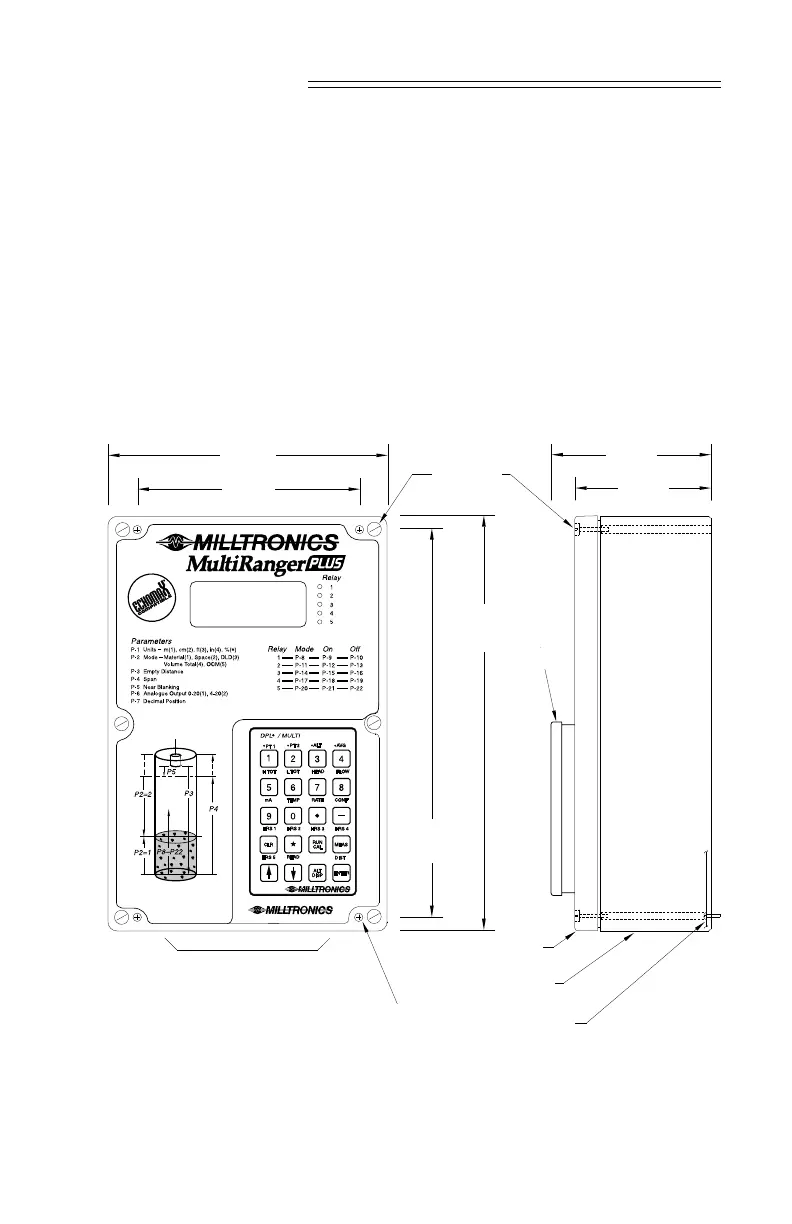

OUTLINE AND MOUNTING
Non metallic enclosure does not provide grounding between conduit
connections. Use grounding type bushings and jumpers.
