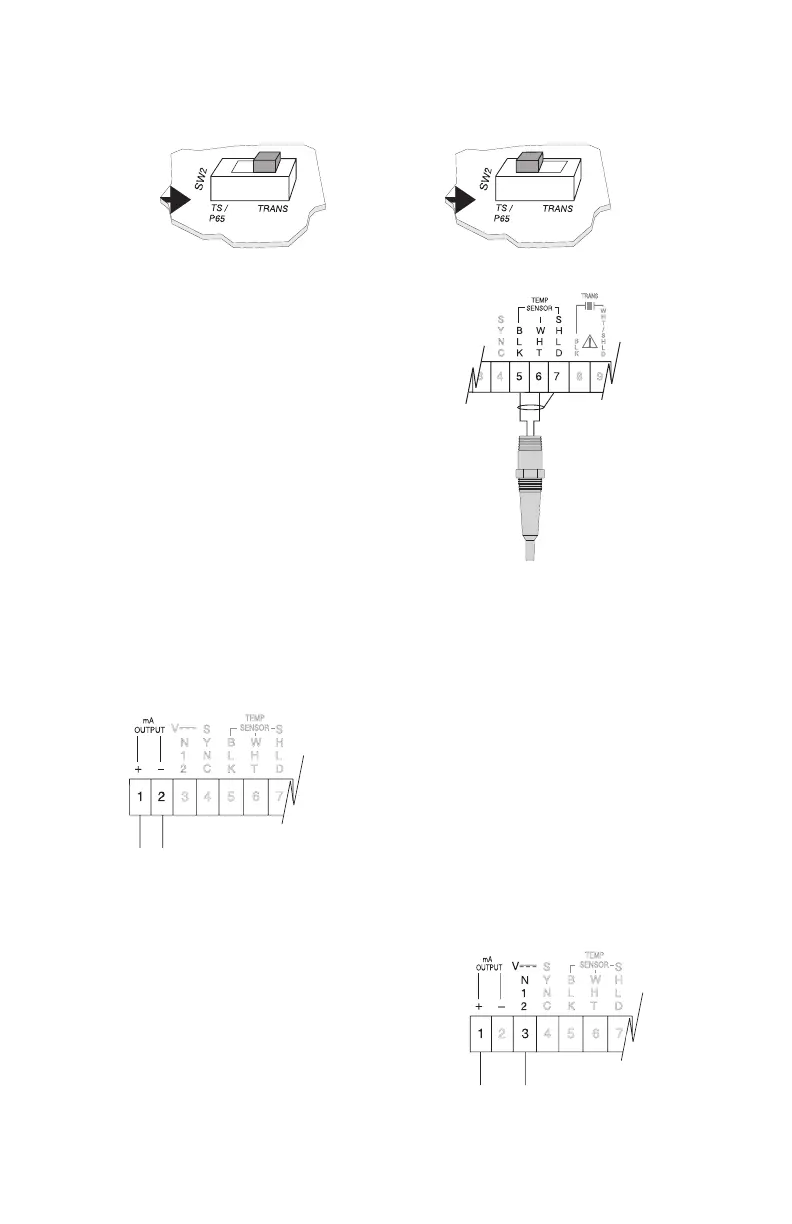

SELECTING TEMPERATURE SOURCE
CURRENT OUTPUT
to customer’s equipment
maximum loading 350 Ω

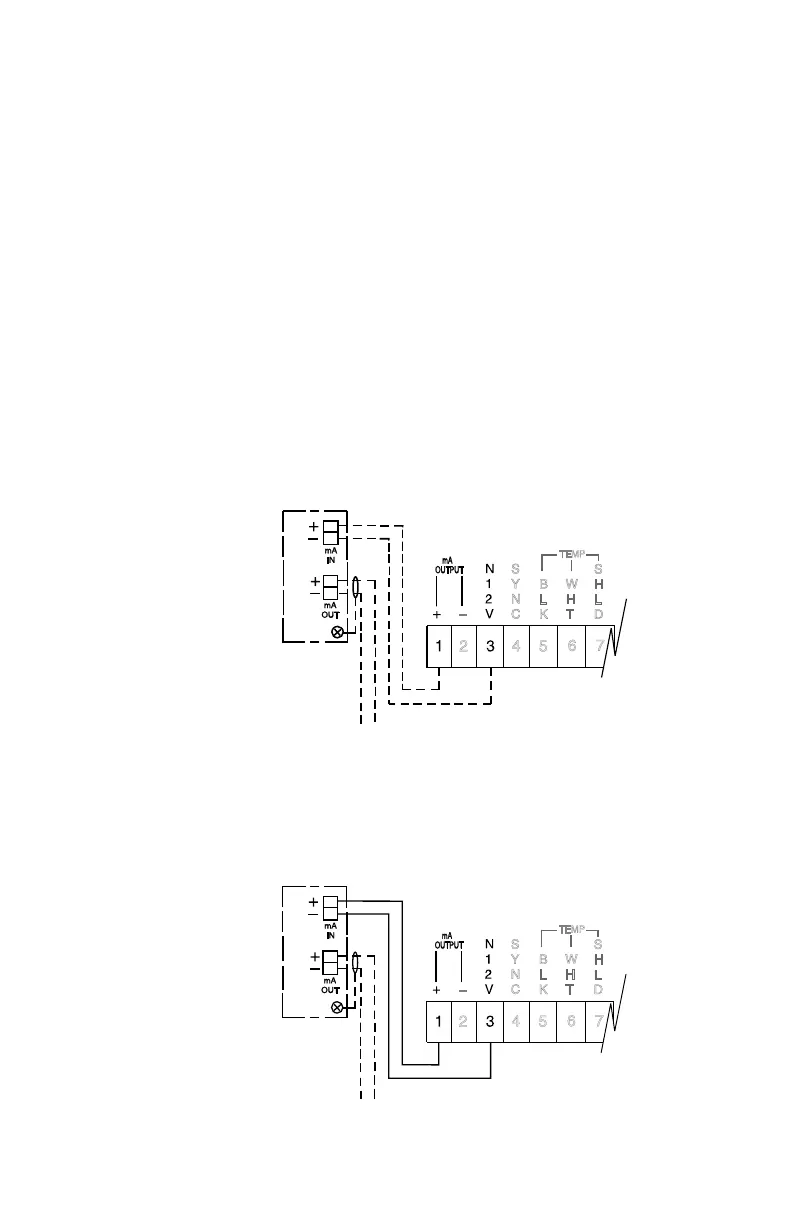

mA Output - GROUNDED
(additional to basic wiring)
Note : TB1-2 is internally
connected to electrical
ground TB1-26.
mA Output - FLOATING
(additional to basic wiring)
mA output wiring into floating input ONLY.
750 Ω max. Do Not Ground!
board ‘B’
Transducer with built-in
temperature sensor
TS-3 or Program
board ‘B’
Note: If TRANS is selected but
the transducer does not have a
built-in temperature sensor,
then CAbL/LOE will flash when
the unit is in run mode
06/28/99
PL-513 15
