00A SAE03 151 80142B$ ASSY-VIBRATION SWT=LG CONTR CONTAINS 001,002,005A-009
00B SAE03 151A 80142B$ASSY-VIBRATION SWT=BALCOM CONTAINS 001,002,005B-009
001 02 02038 85482A PLATE INSULATING SMALL9NOV51
002 15P008 02Z TRDCUT PANHD 6-32X1 NIKSTL +WAX
005A 02 15119 BRACKET = VIBRATION SWITCH 00A
005B 02 10264 BRACKET=SAFESW CAD 00B
006 09R020 04Z SWITCH NC VIBR #WZ-2RW84429-P52
007 03 01059 91046A VIBSWITCH CLAMP CADSTL
008 03 01058 89417A VIBSWITCH WEIGHT-CADSTL
009 15P101 04Z TRDCUT-F PANHD 8-32X3/8 NIKSTL
******** END OF PARTS LIST ********
How to Read Parts List
Reference Item Numbers
—Items 00A, 00B,
00C, etc., or 00X, 00Y, 00Z, etc., appearing at the top of
some parts lists, are for reference and provide:
1. The part number for the entire assembly depicted in
the drawing or a major sub-assembly thereof, and/or
2. The range of machine models this drawing applies to.
If more than one reference item appears, this usually
means this drawing applies to more than one assembly (and
thus to more than one range of machines).
Component Item Numbers
—For any item on
the drawing (e.g., item ➀), there may be several corre-
sponding items on the parts list (e.g., 001A, 001B, 001C,
etc.) which are similar components on different assemblies.
“How Part Is Used In Assembly” identifies which compo-
nents apply to your machine, by listing either the machine
model, or the reference item number from the top of the
parts list (e.g., 00A, 00B, 00C, etc.), or a particular charac-
teristic (e.g., bronze or stainless steel), or special ordering
information, such as a repair kit number.
BMP910038/92343V (Page 1)

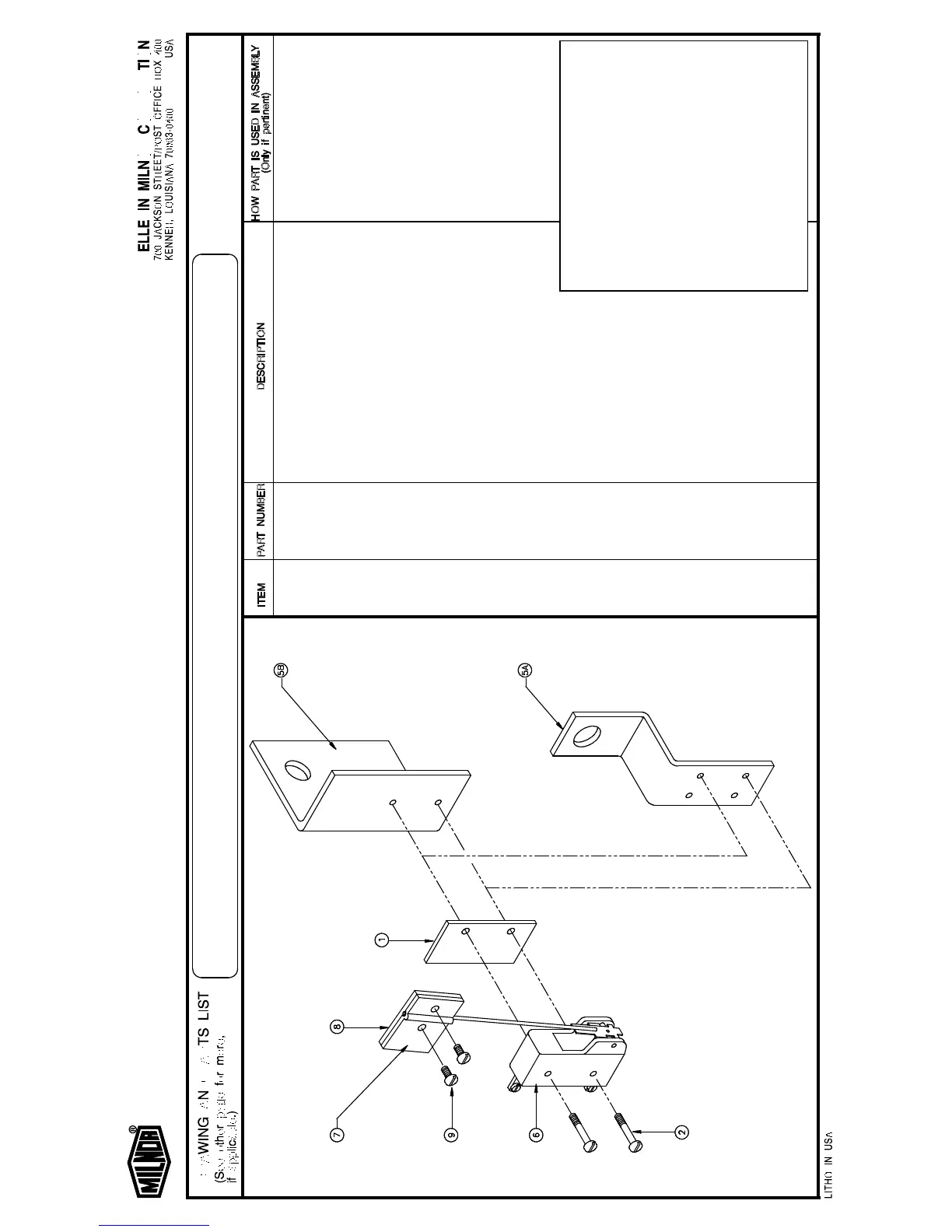

VIBRATION SAFETY SWITCH
