00A SA 33 058 81343C SOAPCHUTE-STAINLESS STEEL ASSEMBLY
001 02 03593 LID=SOAPCHUTE=CWU(STAINLESS STEEL) PART OF 00A
002 02 03595 90193A PIN SOAP CHUTE HINGE=CWU PART OF 00A
003 02 03594 70109B GUARD SOAP CHUTE=CWU PART OF 00A
004 02 03630A 90452B SPLASH GUARD= SOAP CHUTE PART OF 00A
005 02 03304A 90493C GASKET=SOAP CHUTE 1/8"EPDM
006 02 03732F 90346C TAPPED PLATE=SUPPLY MOUNT
007 15P050AB 02Z TRDFRM-AB PANHD10-16X3/4 SS 410 PART OF 00A
008 24G018N ROLLED WASHER .194"ID NYLTITE #10W
009 15P010AB 01Z TRDFRM-AB PANHD10-16X1/2 SS410
******** END OF PARTS LIST ********
How to Read Parts List
Reference Item Numbers
—Items 00A, 00B,
00C, etc., or 00X, 00Y, 00Z, etc., appearing at the top of
some parts lists, are for reference and provide:
1. The part number for the entire assembly depicted in
the drawing or a major sub-assembly thereof, and/or
2. The range of machine models this drawing applies to.
If more than one reference item appears, this usually
means this drawing applies to more than one assembly (and
thus to more than one range of machines).
Component Item Numbers
—For any item on
the drawing (e.g., item ➀), there may be several corre-
sponding items on the parts list (e.g., 001A, 001B, 001C,
etc.) which are similar components on different assemblies.
“How Part Is Used In Assembly” identifies which compo-
nents apply to your machine, by listing either the machine
model, or the reference item number from the top of the
parts list (e.g., 00A, 00B, 00C, etc.), or a particular charac-
teristic (e.g., bronze or stainless steel), or special ordering
information, such as a repair kit number.
BMP920013/93251V (Page 1)

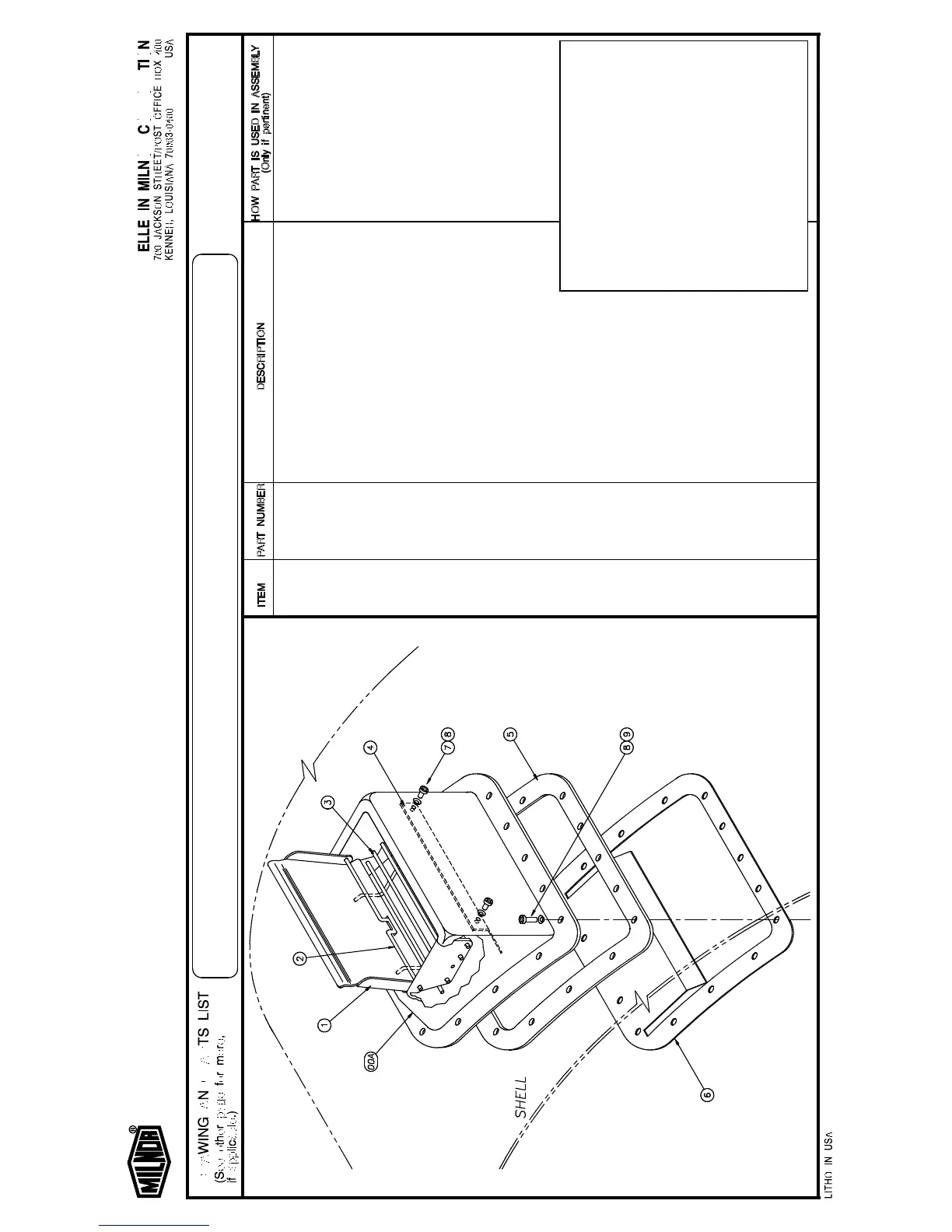

SOAP CHUTE + INSTALLATION
30015, 30020 & 30022 RIGID MOUNT WASHER-EXTRACTORS
