ÊApplying Threadlocker
NOTE: The following threadlocker information and
illustrations are excerpts from the Loctite
®
User’s
Guide and are used with permission.
For maximum strength, threadlocker must fill the thread
voids completely, as shown in FIGURE 2. Organic or petro-
leum solvent will remove excess uncured adhesive from
joints. Consult information below for the specific fastener ap-
plication.
ËBolts and Nuts
—See FIGURE 3.
1. Clean all threads (bolt and nut) with cleaning solvent.
2. Spray all threads with Loctite
®
Primer N. Allow to dry.
3. Insert bolt into through hole assembly.
4. Apply several drops of threadlocker onto bolt engage-
ment area.
5. Assemble and tighten nut to correct torque for the
threadlocker.
ËBlind Holes
—See FIGURE 4.
1. Clean all threads (bolt and nut) with cleaning solvent.
2. Spray all threads with Loctite
®
Primer N. Allow to dry.
3. Squirt several drops down female threads into bottom of
hole.
4. Apply several drops to bolt.
5. Tighten to correct torque for the threadlocker.

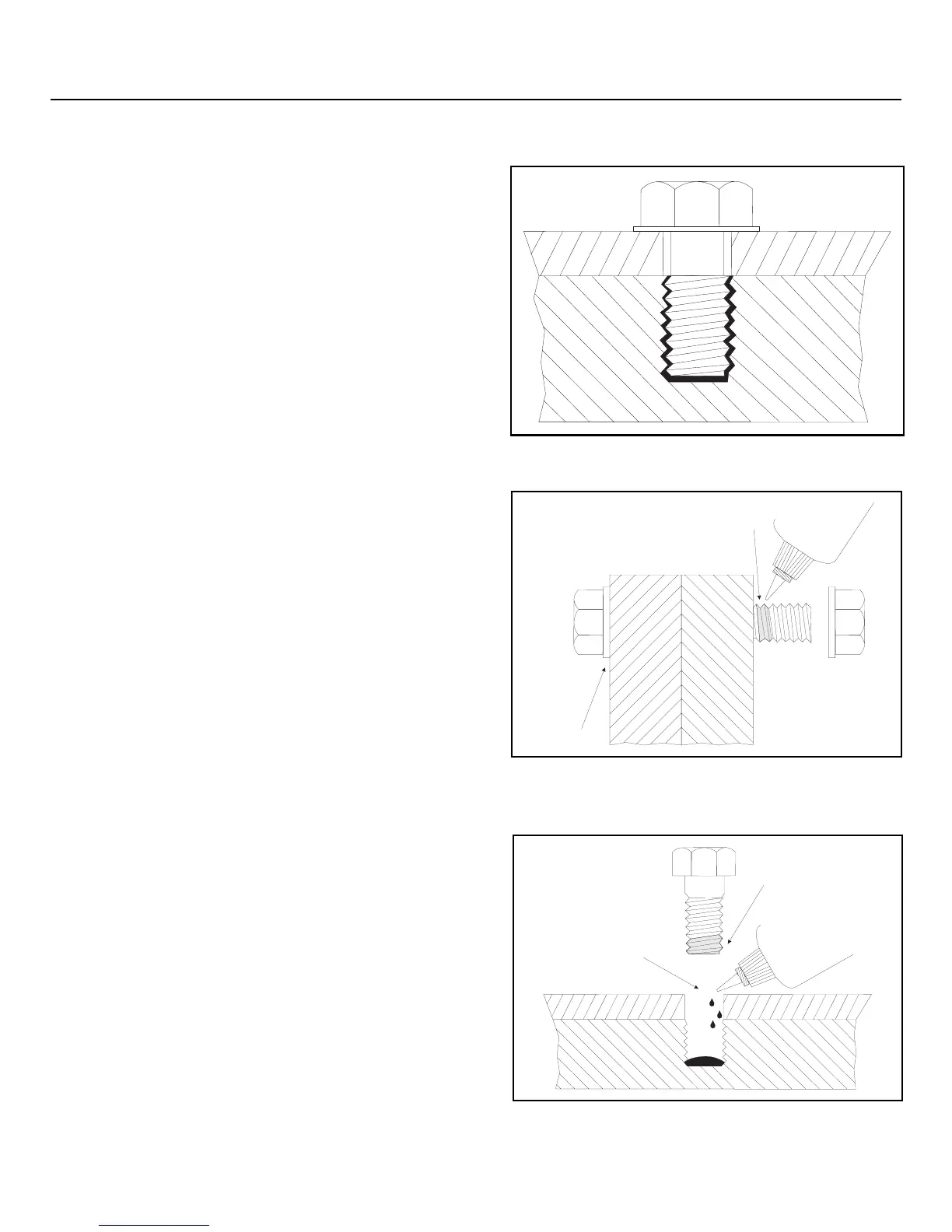

ÎFIGURE 2
(MSSM0101CE)
ÎCorrect Threadlocker Use
Apply here
Not here
ÎFIGURE 3
(MSSM0101CE)
ÎApplying Threadlocker to
Through Hole
Onto
threads
Onto
threads
ÎFIGURE 4
(MSSM0101CE)
ÎApplying Threadlocker to Blind Holes
MSSM0101CE/9906AV (2 of 19)
