Pellerin Milnor Corporation
P. O. Box 400, Kenner, LA 70063-0400
Litho in U.S.A.
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to
assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item
numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

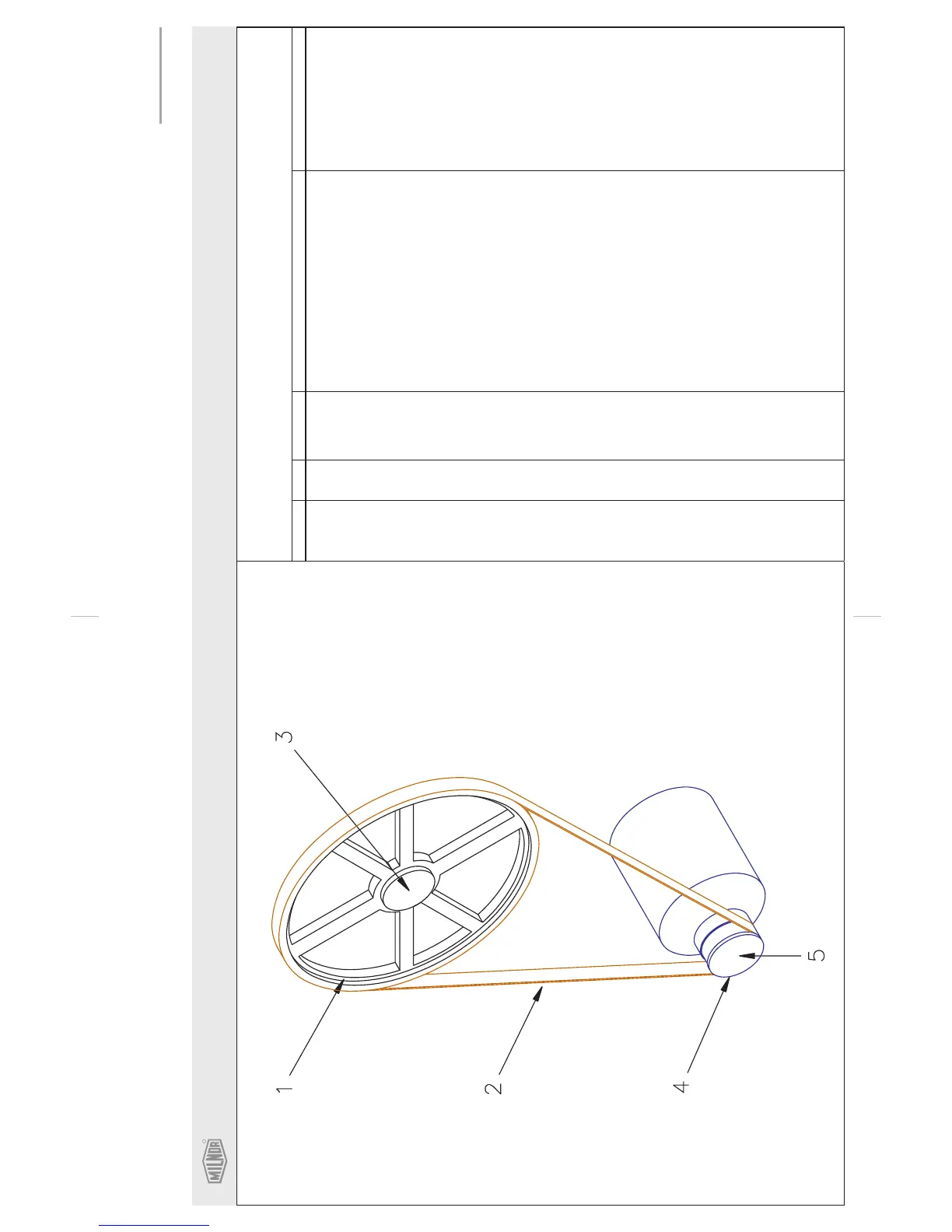

Parts List—Drive Chart
3 Groove Pulleys - Drive Chart
30015 & 30022 S4A, S4G, S4J, S4T
BMP970086/98383V
(Sheet 1 of 1)
.
---------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------
00A D33 03150 94000Z DRIVE CHART=3015/22S4 50CYC 3015/22S4X 50 CYCLE
00B D33 03160 94000Z DRIVE CHART=3015/22S4 60CYC 3015/22S4X 60 CYCLE
none
-------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 001 562240R3SF VPUL 3G3V22.4 (SF) MTO SPECIAL
all 002 56VR080XB3 VBAND 3R3VX800 EA= 1 BELT
all 003 56Q1KSF 1+1/2" BUSH VPUL QD TYPE SF
all 004A 560295R3SH VPUL 3G3V2.95 QD TYPE SH 00A
all 004B 560260R3JA VPUL 3G3V2.60 QD TYPE JA 00B
all 005A 56Q0RSH 7/8" BUSHING VPUL QD TYPE "SH" 00A
all 005B 56Q0RJA 7/8" BUSHING VPUL QD TYPE "JA" 00B
BMP970086/98383V (1 of 1)
NOTE: THIS BMP IS USED AS OF 12/18/97.
PRIOR TO 12/18/97, PLEASE USE
BMP930015
To Next Page
