PELLERIN MILNOR CORPORATION
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.
Parts List—Balancing Valves
---------------------------------------------------------------------------------------------ASSEMBLIES--------------------------------------------------------------------
A AVW72012 7246M5K WATER TO AUTOBALANCE 7246M5K
B GVW72011 7246M5K BALANCING NOZZLES INSTALL 7246M5K
--------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 60E086C296 WATERHOSE=3/4"X296"LG+ENDS
all 2 51X019 UNIONSTRADT 3/4"#0107-12-12
all 3 5S0PNFA NPT TEE 3/4" GALMAL 150#
all 4 5N0P04AG42 NPT NIP 3/4X4 TBE GALSTL SK40
all 5 5SL0PNFA NPTELB 90DEG 3/4 GALMAL 150#
all 6 5N0PCLSG42 NPT NIP 3/4XCLS TBE GALSTL S40
all 7 96P056B71 3/4"NC 230V50/60 BURKERT #5281
all 8 60E086E27A HOSE ASSY=3/4"X27"LG+1/2X3/4
all 9 5SCC0KBE NPT COUP 1/2 BRASS 125#
all 10 53A046B ELL90 1/2TUX1/2MPT #8-8CBU
all 11 05 10004B INJECTOR SHORT NOZLE LONG BDY
all 12 05 10004E INJECTOR SHORT HOOK
all 13 05 10004F INJECTOR LONG HOOK

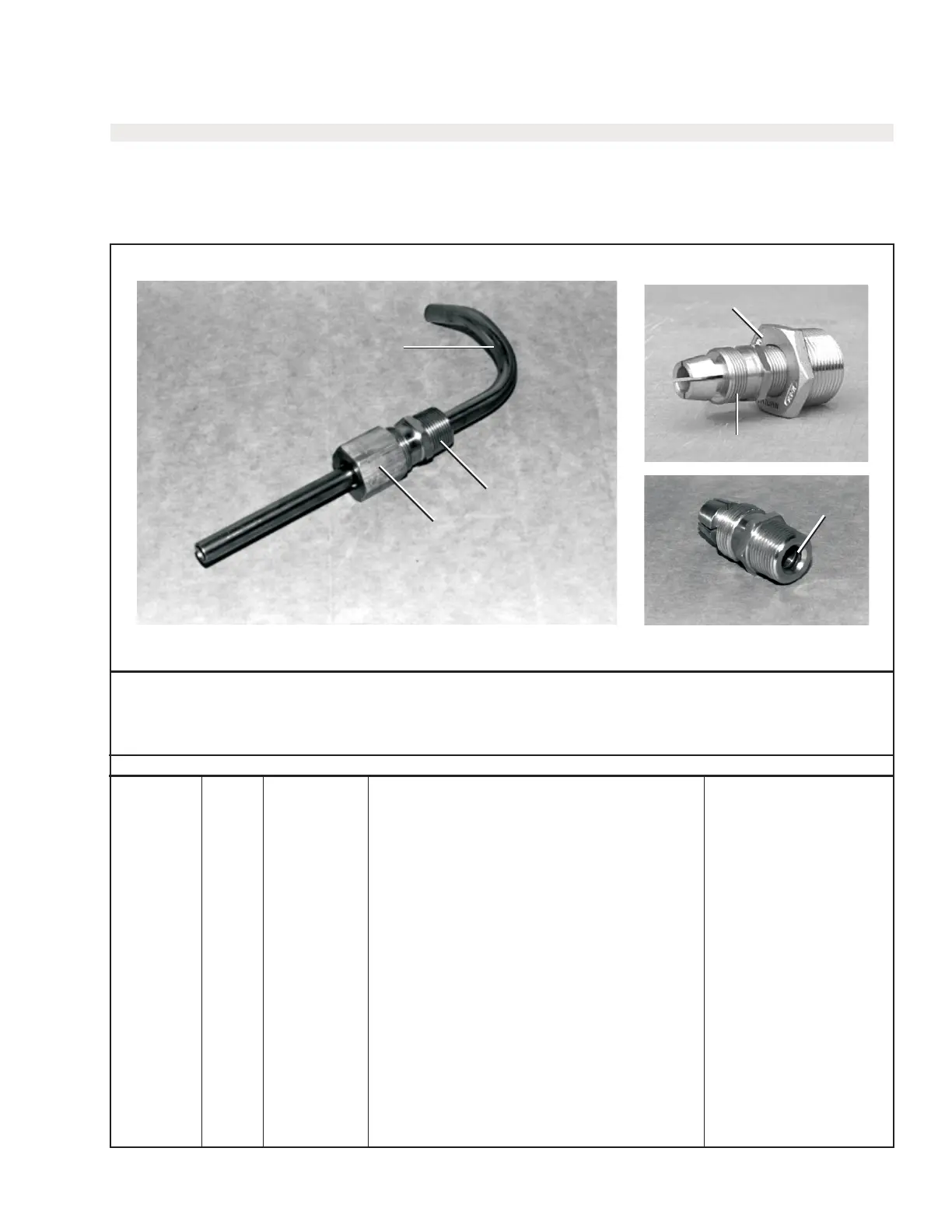

Figure 2: Injector Nozzles
BMP150051/2015292A
Balancing Valves
7246M5K
Page (2 / 3)
()11
12
13
Rib #1
()
()
Rib #2
Rib #3
14
16
14
23
15
149
To Next Page
