Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
parts list to the illustration.

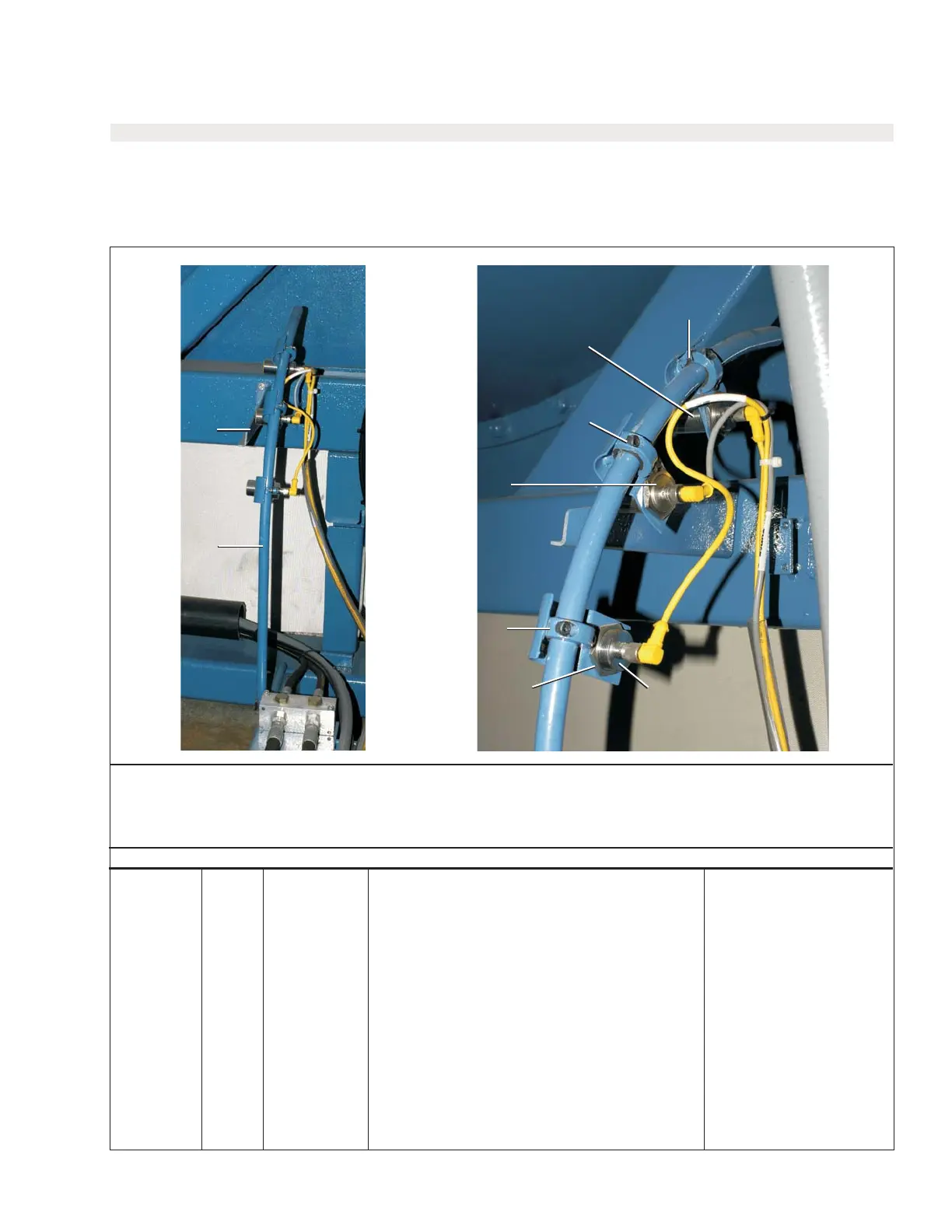

Parts List—Tilt Limit Switches
Page (1 / 1)
PELLERIN MILNOR CORPORATION
---------------------------------------------------------------------------------------------ASSEMBLIES--------------------------------------------------------------------
A GPS68001 6836M5K PROX SWITCH INSTALL 48040M7K, 68036M5K
B GPS72001 7246M5K PROX SWITCH INSTALL 72046M5K
--------------------------------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
A 1 W2 22751 6836M5K PROXIMITY SWITCH MOUNT SHAFT WLMT
B 1 W2 25083 7246M5K PROX SWITCH ADJST SHFT WLMT
all 2 W3 60220B PROX SW MTG WLMT 30MM, 6440
all 3 02 22750 6836M5K PROX SWITCH TARGET
all 4 09RPS30CAS PROXSW QK CONN 30M NO-AC SHLD
all 5 09RPTAC095 CONN. 90 FEM 3-PIN AC 3A 5M
all 6 09RPS30DAS PRXSW QK CONN 30M NC-AC SHLD
all 7 09RPS30ADS PROX SW QK CONN 30M NO-DC SHLD
all 8 09RPSDC095 CON.90DEG FEMALE DC 3A300V 5M
PELLERIN MILNOR CORPORATION
BMP150046/2015392A
Tilt Limit Switches
48040M7K, 68036M5K, 72046M5K
1
3
2
2
2
DISCHARGE
(Full-up)
WASH
LOAD
(Full-
down)
4,5 (Door) or
6,5 (DRYELL-
autoload)
7,8
6,5
170
