Bonnet Assembly
PELLERIN MILNOR CORPORATION

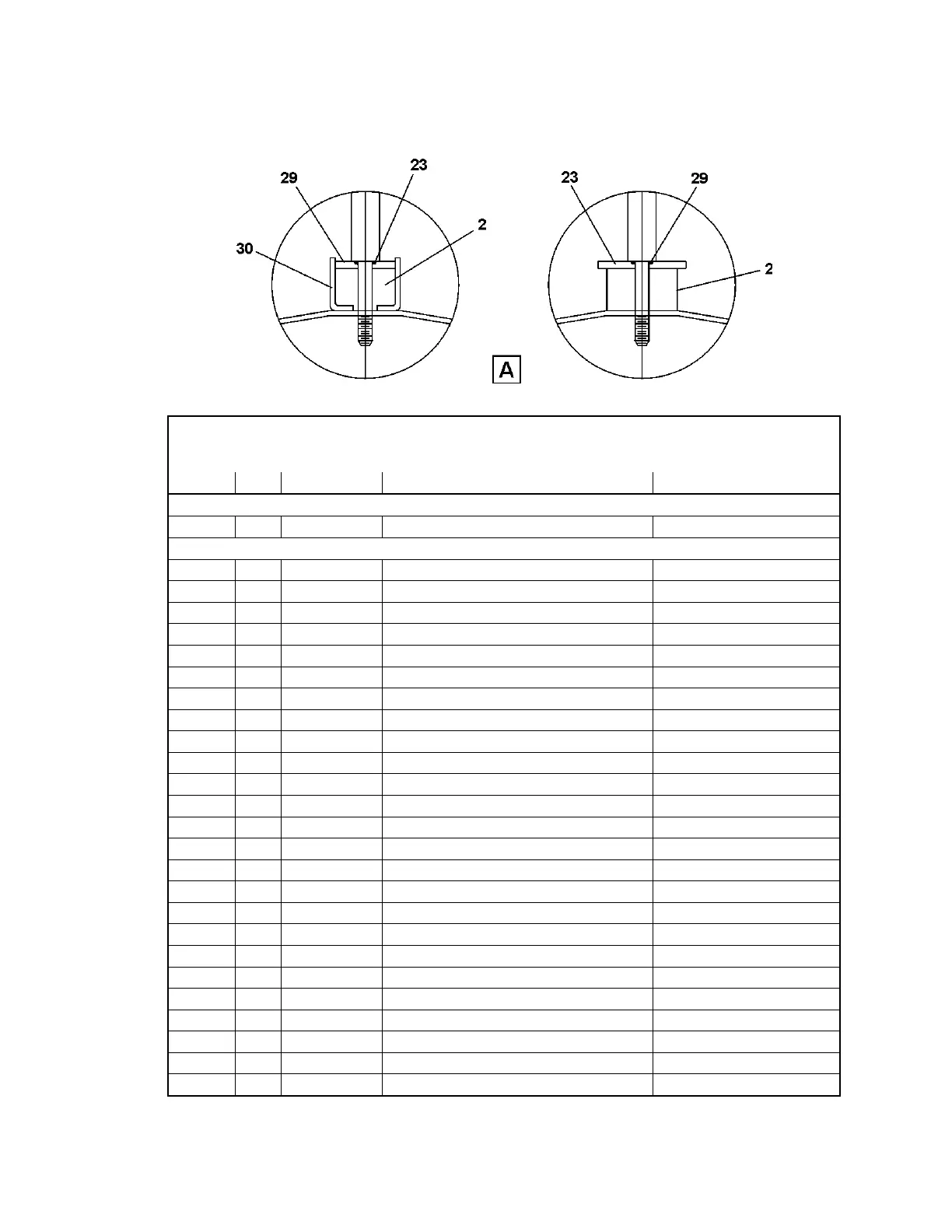

Figure 2: Detailed views: Bumper, O-ring, Washer
Table 1: Parts List—Bonnet Assembly
Find the assembly for your machine and the letter shown in the "Item" column. The components for your
machine will show this letter or the word "all" in the "Used In" column. The numbers shown in the "Item"
column are those shown in the illustrations.
Used In Item Part Number Description/Nomenclature Comments
Assemblies
A SA 28 158 Assembly, Bonnet and air cylinder
Components
all 1 02 02101 Cylinder head
all 2 02 16021C Bumper
all 3 60C132 O-ring, 2X3/16
all 4 02 10585D Bolt, 5/16-18X7.875
all 5 15G220 Nut, 3/8-24
all 6 02 02085 Washer, Upper, .381X2"
all 7 02 02105B Washer, Piston cup, .378X2.38"
all 8 02 02185 Washer, Compression limit, .39X3/4"
all 9 02 18931E Casting, Bonnet
all 10 03 01313 Stop
all 14 02 18796 Disk
all 15 02 16021I Stem
all 16 15G168 Nut, 1/4-20
all 18 02 18931F Gasket
all 19 X2 02743 Bonnet
all 20 24G020N Washer, Nylon, 1/4
all 21 15K041S Bolt, 1/4-20X1
all 22 03 06429 Spring
all 23 60C106 O-ring, 5/16X1/16
all 24 02 02194 Piston cup, 2+3/8"
all 25 02 02068 Air cylinder
all 26 15U210 Washer, Lock, 5/16
all 28 15U245 Washer, Flat, 3/8"
all 29 02 16021E Washer, 3/8X1.25
all 30 02 16021D Retainer
— End of BIIFGM28 —
